Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45F20KERES 20K OHM 1% 5W AXIAL Ohmite |
249 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 20 kOhms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
25J12KERES 12K OHM 5% 5W AXIAL Ohmite |
258 |
|
Datasheet |
20 | Bulk | Active | 12 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
41FR10ERES 0.1 OHM 1% 1W AXIAL Ohmite |
201 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 100 mOhms | ±1% | 1W | Wirewound | - | ±90ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
40JR50ERES 0.5 OHM 5% 10W AXIAL Ohmite |
105 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 500 mOhms | ±5% | 10W | Wirewound | - | ±90ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
20J6K0ERES 6K OHM 5% 10W AXIAL Ohmite |
291 |
|
Datasheet |
20 | Bulk | Active | 6 kOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
|
41F1K0ERES 1K OHM 1% 1W AXIAL Ohmite |
180 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1 kOhms | ±1% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|

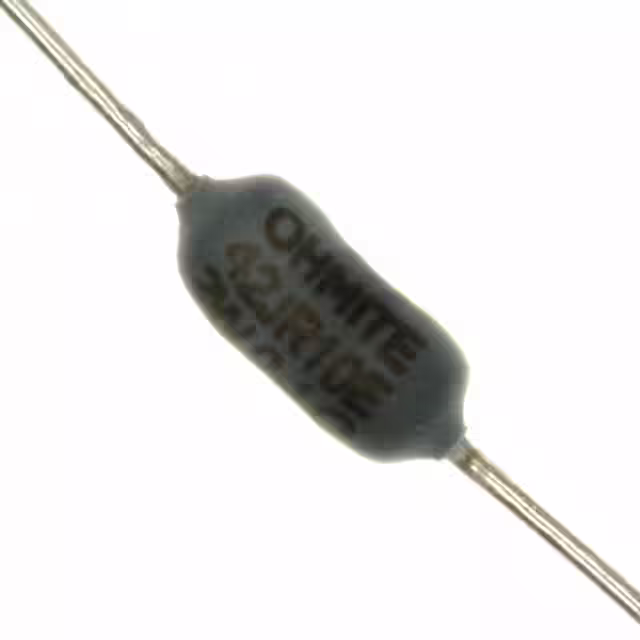

42JR10ERES 0.1 OHM 5% 2W AXIAL Ohmite |
273 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 100 mOhms | ±5% | 2W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|

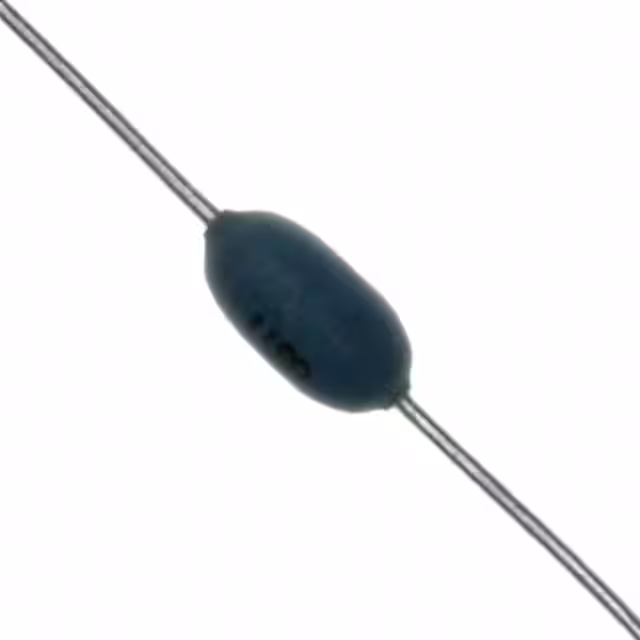

42J2R0ERES 2 OHM 5% 2W AXIAL Ohmite |
225 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 2 Ohms | ±5% | 2W | Wirewound | - | ±50ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
MOX70034991AZERES 4.99K OHM 0.05% 1/4W AXIAL Ohmite |
122 |
|
Datasheet |
MOX700 | Tray | Active | 4.99 kOhms | ±0.05% | 0.25W, 1/4W | Metal Film | - | 5ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
|
20J6K8ERES 6.8K OHM 5% 10W AXIAL Ohmite |
487 |
|
Datasheet |
20 | Bulk | Active | 6.8 kOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
