Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
41F1R0ERES 1 OHM 1% 1W AXIAL Ohmite |
730 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1 Ohms | ±1% | 1W | Wirewound | - | ±50ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|

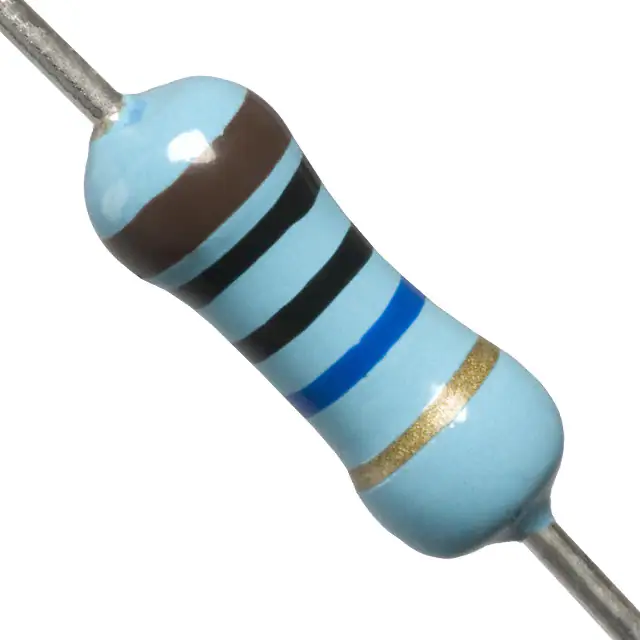

MOX300001006JERES 100M OHM 5% 1/2W AXIAL Ohmite |
436 |
|
Datasheet |
Mini-Mox | Bulk | Active | 100 MOhms | ±5% | 0.5W, 1/2W | Thick Film | High Voltage, Moisture Resistant | 100ppm/°C | -55°C ~ 155°C | Axial | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | - | 2 | - |
|
OY120KERES 12 OHM 10% 2W AXIAL Ohmite |
512 |
|
Datasheet |
OY | Bulk | Active | 12 Ohms | ±10% | 2W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | 2 | - |
|

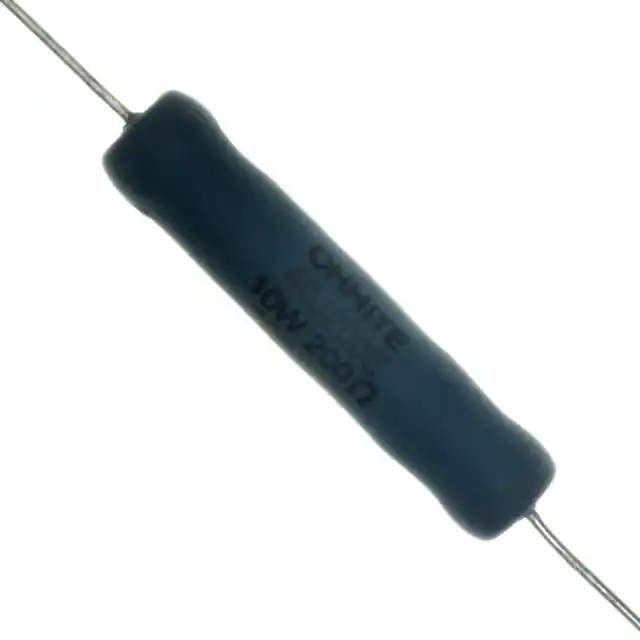

40J200ERES 200 OHM 5% 10W AXIAL Ohmite |
246 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 200 Ohms | ±5% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
20JR20ERES 0.2 OHM 5% 10W AXIAL Ohmite |
123 |
|
Datasheet |
20 | Bulk | Active | 200 mOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | - | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
13FR030ERES 0.03 OHM 1% 3W AXIAL Ohmite |
164 |
|
Datasheet |
10 | Bulk | Active | 30 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|

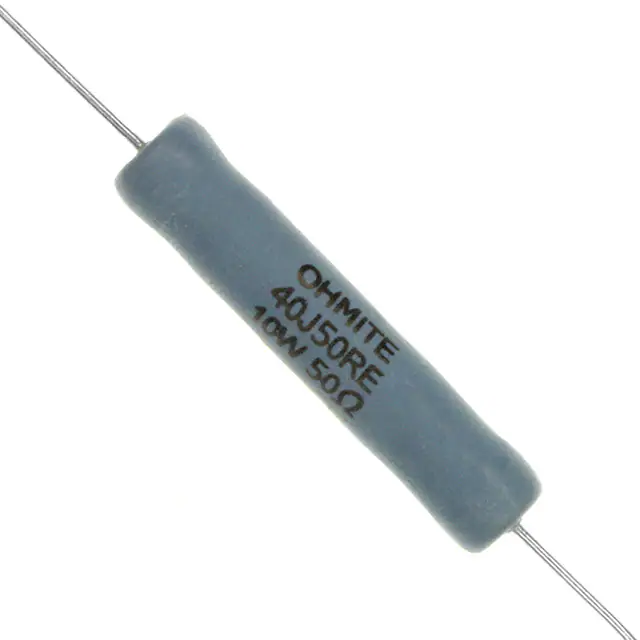

40J50RERES 50 OHM 5% 10W AXIAL Ohmite |
213 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 50 Ohms | ±5% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
|
41FR30ERES 0.3 OHM 1% 1W AXIAL Ohmite |
190 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 300 mOhms | ±1% | 1W | Wirewound | - | ±90ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
|
41F4R0ERES 4 OHM 1% 1W AXIAL Ohmite |
200 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 4 Ohms | ±1% | 1W | Wirewound | - | ±50ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
OY124KERES 120K OHM 10% 2W AXIAL Ohmite |
1,046 |
|
Datasheet |
OY | Bulk | Active | 120 kOhms | ±10% | 2W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | 2 | - |
