Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP101 1R5 JRES 1.5 OHM 5% 100W TO247 Ohmite |
524 |
|
Datasheet |
ARCOL, AP101 | Tray | Active | 1.5 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±300ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
TCH35P1R50JERES 1.5 OHM 5% 35W TO220 Ohmite |
292 |
|
Datasheet |
TCH | Tube | Active | 1.5 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±300ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
|
TCH35P33R0JERES 33 OHM 5% 35W TO220 Ohmite |
197 |
|
Datasheet |
TCH | Tube | Active | 33 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|

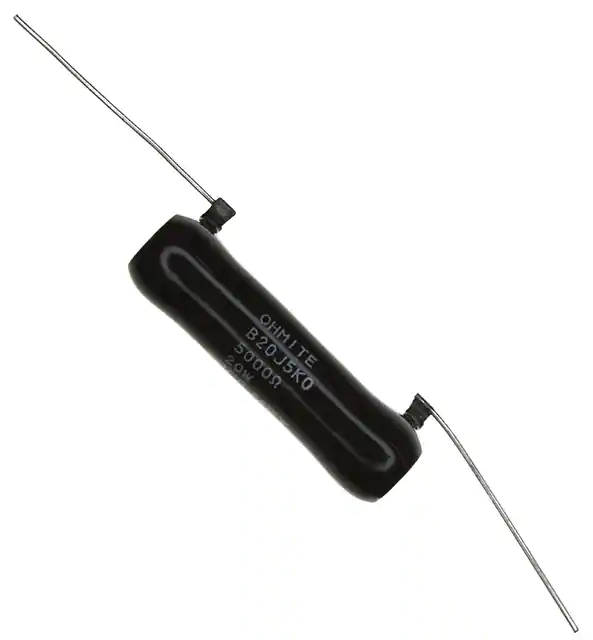

B20J5K0RES 5K OHM 5% 20W AXIAL Ohmite |
114 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 5 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
TAH20P75R0JERES 75 OHM 5% 20W TO220 Ohmite |
420 |
|
Datasheet |
TAH | Tube | Active | 75 Ohms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | ±50ppm/°C | - | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
TCH35P51R0JERES 51 OHM 5% 35W TO220 Ohmite |
243 |
|
Datasheet |
TCH | Tube | Active | 51 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
|
TCH35P2R20JERES 2.2 OHM 5% 35W TO220 Ohmite |
460 |
|
Datasheet |
TCH | Tube | Active | 2.2 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±300ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
TEH100M3R00FERES 3 OHM 1% 100W TO247 Ohmite |
579 |
|
Datasheet |
TEH100 | Tube | Active | 3 Ohms | ±1% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | 100ppm/°C | - | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|

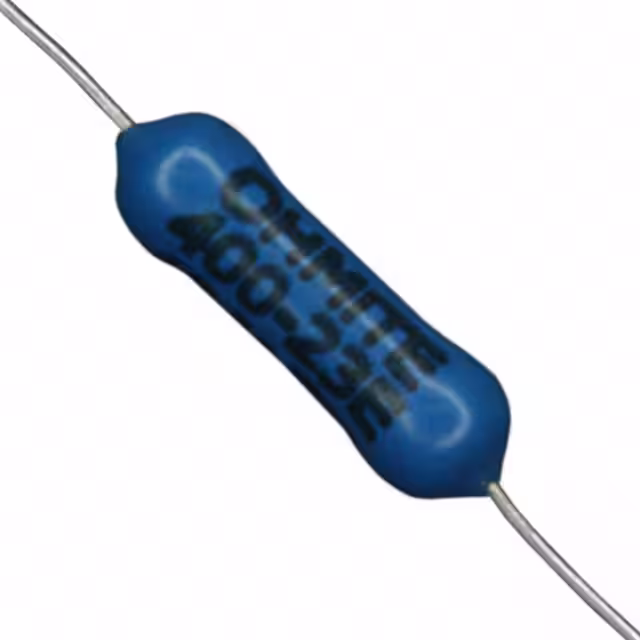

MOX-400231005JERES 10M OHM 5% 3/4W AXIAL Ohmite |
2,190 |
|
Datasheet |
Mini-Mox | Bulk | Active | 10 MOhms | ±5% | 0.75W, 3/4W | Thick Film | High Voltage | 25ppm/°C | -55°C ~ 110°C | Axial | 0.165" Dia x 0.581" L (4.19mm x 14.78mm) | - | 2 | - |
|
MOX-400231007JERES 1 GOHM 5% 3/4W AXIAL Ohmite |
250 |
|
Datasheet |
Mini-Mox | Bulk | Active | 1 GOhms | ±5% | 0.75W, 3/4W | Thick Film | High Voltage | 100ppm/°C | -55°C ~ 110°C | Axial | 0.165" Dia x 0.581" L (4.19mm x 14.78mm) | - | 2 | - |
