Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
604HR025ERES 0.025 OHM 3% 3/8W AXIAL Ohmite |
151 |
|
Datasheet |
60 | Bulk | Active | 25 mOhms | ±3% | 0.375W, 3/8W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.250" L (6.35mm) | - | 2 | - |
|
TWW3JR10ERES 0.1 OHM 5% 3W RADIAL Ohmite |
1,659 |
|
Datasheet |
TWW | Bulk | Active | 100 mOhms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
|
TWW3J2R0ERES 2 OHM 5% 3W RADIAL Ohmite |
3,175 |
|
Datasheet |
TWW | Bulk | Active | 2 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
TWW5J4R3ERES 4.3 OHM 5% 5W RADIAL Ohmite |
2,470 |
|
Datasheet |
TWW | Bulk | Active | 4.3 Ohms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
610HR050ERES 0.05 OHM 3% 1W AXIAL Ohmite |
1,894 |
|
Datasheet |
60 | Bulk | Active | 50 mOhms | ±3% | 1W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.750" L (19.05mm) | - | 2 | - |
|

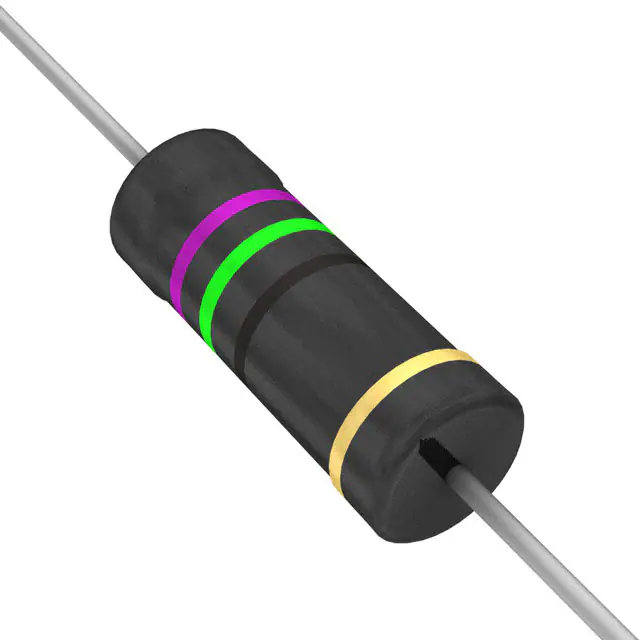

55J75RERES 75 OHM 5% 5W AXIAL Ohmite |
640 |
|
Datasheet |
50 | Bulk | Active | 75 Ohms | ±5% | 5W | Wirewound | - | ±50ppm/°C | - | Axial | 0.315" Dia x 0.827" L (8.00mm x 21.00mm) | - | 2 | - |
|
OX560KERES 56 OHM 10% 1W AXIAL Ohmite |
2,026 |
|
Datasheet |
OX | Bulk | Active | 56 Ohms | ±10% | 1W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|
607HR005ERES 0.005 OHM 3% 3/4W AXIAL Ohmite |
230 |
|
Datasheet |
60 | Bulk | Active | 5 mOhms | ±3% | 0.75W, 3/4W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.320" L (8.13mm) | - | 2 | - |
|
610HR005ERES 0.005 OHM 3% 1W AXIAL Ohmite |
204 |
|
Datasheet |
60 | Bulk | Active | 5 mOhms | ±3% | 1W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.650" L (16.51mm) | - | 2 | - |
|
MOX5003301JSERES 3.3K OHM 5% 2W AXIAL Ohmite |
475 |
|
Datasheet |
MOX500 | Bulk | Active | 3.3 kOhms | ±5% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
