Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOX1125231006JERES 100M OHM 5% 1.5W AXIAL Ohmite |
300 |
|
Datasheet |
Mini-Mox | Bulk | Active | 100 MOhms | ±5% | 1.5W | Thick Film | High Voltage | 25ppm/°C | -55°C ~ 220°C | - | 0.165" Dia x 1.270" L (4.19mm x 32.26mm) | - | 2 | - |
|

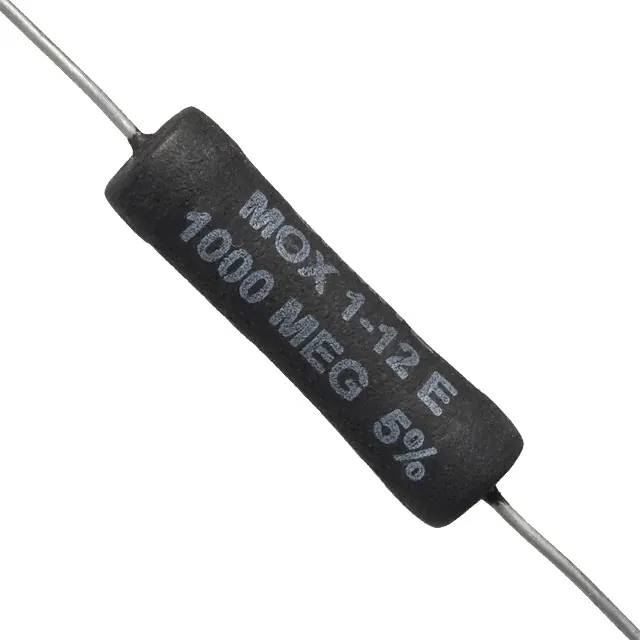

MOX-1-121007JERES 1 GOHM 5% 2.5W AXIAL Ohmite |
371 |
|
Datasheet |
Maxi-Mox | Bulk | Active | 1 GOhms | ±5% | 2.5W | Thick Film | High Voltage | ±100ppm/°C | -55°C ~ 210°C | Axial | 0.310" Dia x 1.120" L (7.87mm x 28.45mm) | - | 2 | - |
|
CS3FR003ERES 0.003 OHM 1% 3W 4SIP Ohmite |
150 |
|
Datasheet |
CS3 | Bulk | Active | 3 mOhms | ±1% | 3W | Metal Element | Current Sense, Moisture Resistant, Non-Inductive | ±60ppm/°C | -55°C ~ 150°C | - | 0.854" L x 0.211" W (21.70mm x 5.35mm) | 0.654" (16.60mm) | 4 | - |
|
|
CS3FR020ERES 0.02 OHM 1% 3W 4SIP Ohmite |
859 |
|
Datasheet |
CS3 | Bulk | Active | 20 mOhms | ±1% | 3W | Metal Element | Current Sense, Moisture Resistant, Non-Inductive | ±60ppm/°C | -55°C ~ 150°C | - | 0.854" L x 0.211" W (21.70mm x 5.35mm) | 0.654" (16.60mm) | 4 | - |
|
MOX-2-121006JERES 100M OHM 5% 5W AXIAL Ohmite |
148 |
|
Datasheet |
Maxi-Mox | Bulk | Active | 100 MOhms | ±5% | 5W | Thick Film | High Voltage | ±25ppm/°C | -55°C ~ 210°C | Axial | 0.310" Dia x 2.120" L (7.87mm x 53.85mm) | - | 2 | - |
|
|
CS3FR025ERES 0.025 OHM 1% 3W 4SIP Ohmite |
147 |
|
Datasheet |
CS3 | Bulk | Active | 25 mOhms | ±1% | 3W | Metal Element | Current Sense, Moisture Resistant, Non-Inductive | ±60ppm/°C | -55°C ~ 150°C | - | 0.854" L x 0.211" W (21.70mm x 5.35mm) | 0.654" (16.60mm) | 4 | - |
|
MOX-4N-131004FERES 1M OHM 1% 5W AXIAL Ohmite |
109 |
|
Datasheet |
Maxi-Mox | Bulk | Active | 1 MOhms | ±1% | 5W | Thick Film | High Voltage, Non-Inductive | ±25ppm/°C | -55°C ~ 210°C | Axial | 0.345" Dia x 4.140" L (8.76mm x 105.16mm) | - | 2 | - |
|
MOX94021007FTERES 1 GOHM 1% 10W AXIAL Ohmite |
348 |
|
Datasheet |
Super-Mox | Bulk | Active | 1 GOhms | ±1% | 11.7W | Metal Oxide Film | High Voltage, Moisture Resistant, Non-Inductive | ±100ppm/°C | -55°C ~ 225°C | Axial | 0.315" Dia x 3.031" L (8.00mm x 77.00mm) | - | 2 | - |
|
251AS102KDSRES 1K OHM 10% 3.5W AXIAL Ohmite |
4,086 |
|
Datasheet |
200 | Box | Active | 1 kOhms | ±10% | 3.5W | Ceramic | Moisture Resistant, Non-Inductive, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.437" Dia x 1.126" L (11.10mm x 28.60mm) | - | 2 | - |
|
605HR010ERES 0.01 OHM 3% 1/2W AXIAL Ohmite |
220 |
|
Datasheet |
60 | Bulk | Active | 10 mOhms | ±3% | 0.5W, 1/2W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.355" L (9.02mm) | - | 2 | - |
