Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

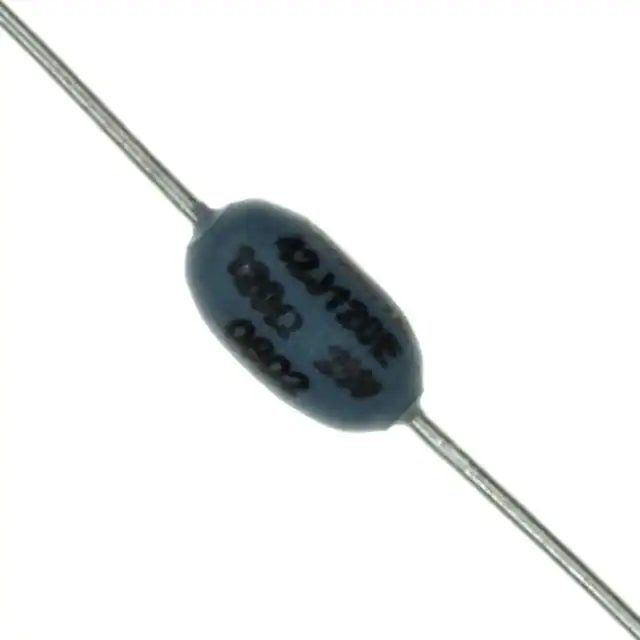

42J120ERES 120 OHM 5% 2W AXIAL Ohmite |
248 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 120 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
OC1K561E-TRRES 560 OHM 10% 1.2W AXIAL Ohmite |
720 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 560 Ohms | ±10% | 1.2W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.650" L (7.90mm x 16.50mm) | - | 2 | - |
|
MOX70031200BZERES 120 OHM 0.1% 1/4W AXIAL Ohmite |
105 |
|
Datasheet |
MOX700 | Tray | Active | 120 Ohms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 5ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|

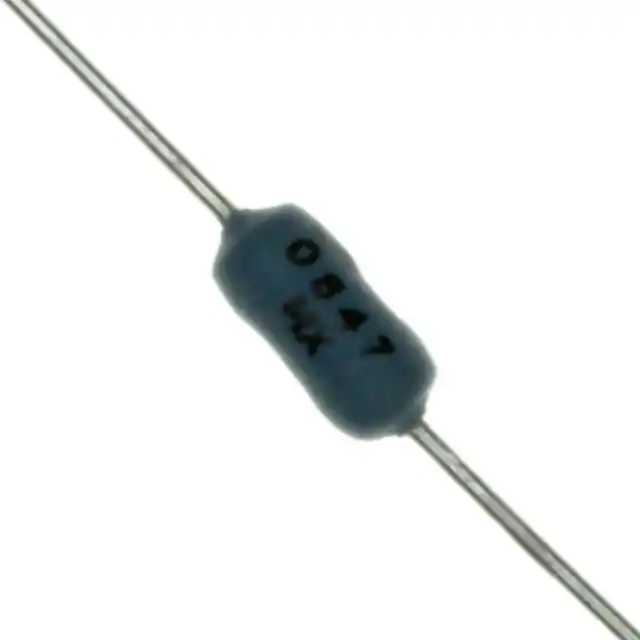

42J4R0ERES 4 OHM 5% 2W AXIAL Ohmite |
242 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 4 Ohms | ±5% | 2W | Wirewound | - | ±50ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
AP836 15R JRES 15 OHM 5% 35W TO220 Ohmite |
1,061 |
|
Datasheet |
ARCOL, AP836 | Tray | Active | 15 Ohms | ±5% | 35W | Thick Film | Non-Inductive | ±100ppm/°C | -60°C ~ 150°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|

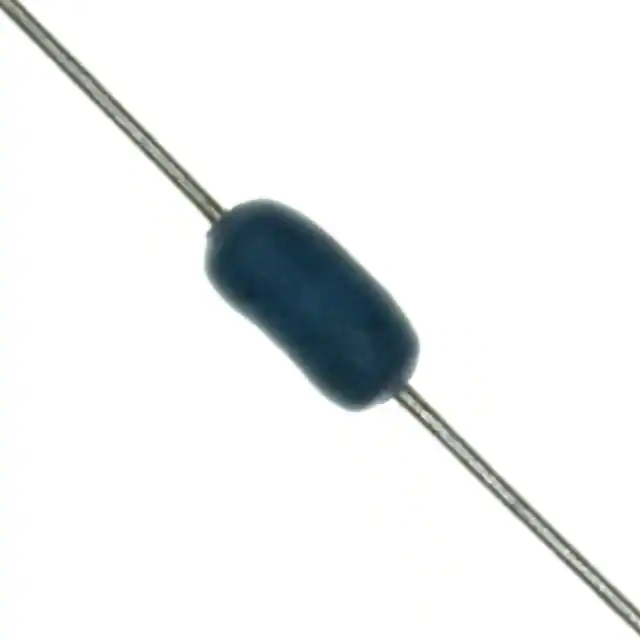

42JR15ERES 0.15 OHM 5% 2W AXIAL Ohmite |
102 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 150 mOhms | ±5% | 2W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|

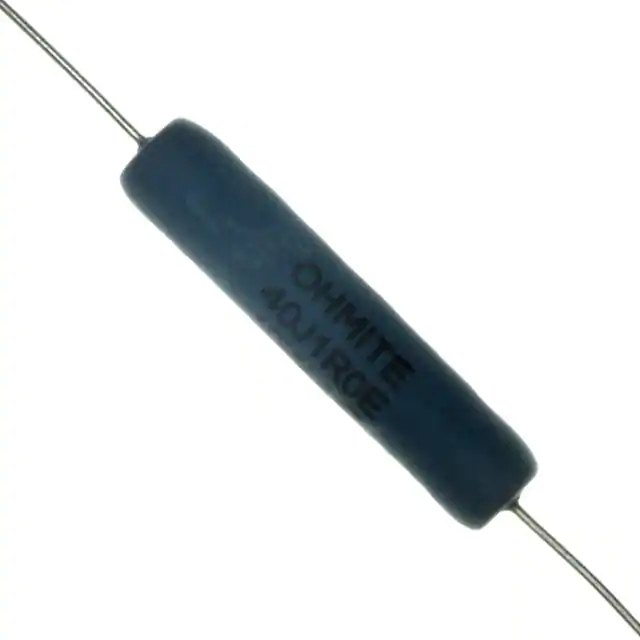

40J1R0ERES 1 OHM 5% 10W AXIAL Ohmite |
215 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1 Ohms | ±5% | 10W | Wirewound | - | ±50ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
45FR15ERES 0.15 OHM 1% 5W AXIAL Ohmite |
224 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 150 mOhms | ±1% | 5W | Wirewound | - | ±90ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
41F1R5ERES 1.5 OHM 1% 1W AXIAL Ohmite |
200 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1.5 Ohms | ±1% | 1W | Wirewound | - | ±50ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|

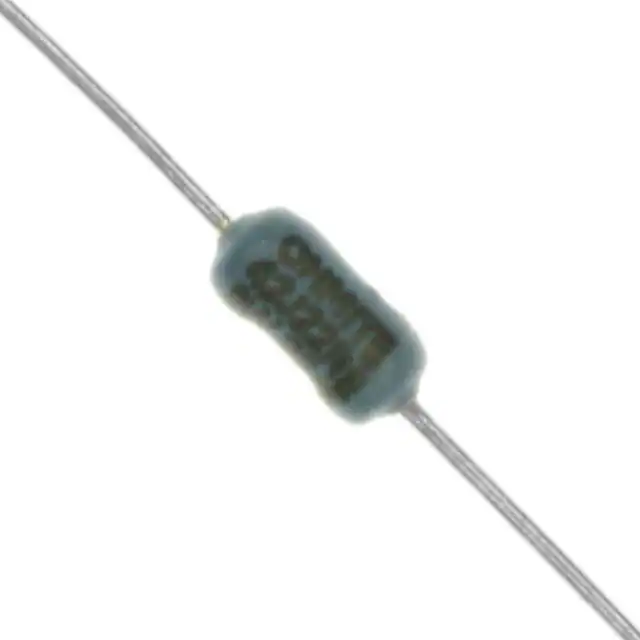

42J22RERES 22 OHM 5% 2W AXIAL Ohmite |
251 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 22 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
