Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

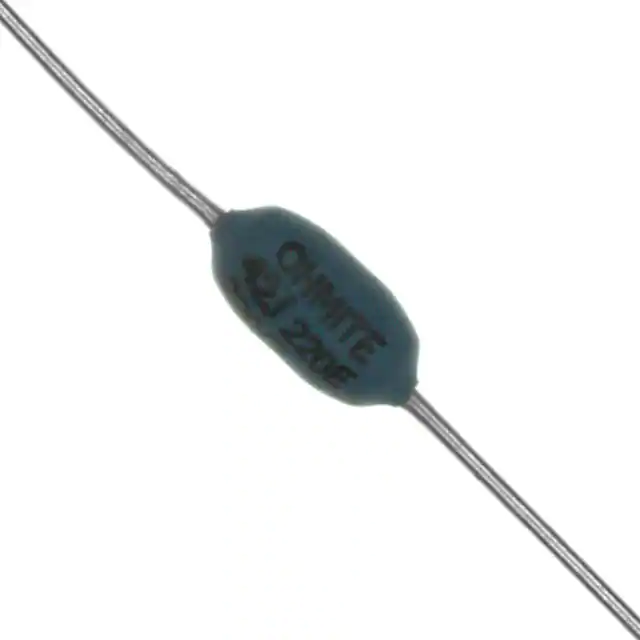

42J220ERES 220 OHM 5% 2W AXIAL Ohmite |
234 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 220 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
20J680ERES 680 OHM 5% 10W AXIAL Ohmite |
243 |
|
Datasheet |
20 | Bulk | Active | 680 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
33J100ERES 100 OHM 5% 3W AXIAL Ohmite |
225 |
|
Datasheet |
High Energy Wirewound | Bulk | Active | 100 Ohms | ±5% | 3W | Wirewound | - | - | - | Axial | 0.217" Dia x 0.594" L (5.50mm x 15.10mm) | - | 2 | - |
|
23J7R5ERES 7.5 OHM 5% 3W AXIAL Ohmite |
253 |
|
Datasheet |
20 | Bulk | Active | 7.5 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±50ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
TWW15J470ERES 470 OHM 5% 15W RADIAL Ohmite |
1,837 |
|
Datasheet |
TWW | Box | Active | 470 Ohms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.535" (39.00mm) | 2 | - |
|
43F200ERES 200 OHM 1% 3W AXIAL Ohmite |
256 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 200 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
|
TWW15J100ERES 100 OHM 5% 15W RADIAL Ohmite |
5,332 |
|
Datasheet |
TWW | Box | Active | 100 Ohms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.535" (39.00mm) | 2 | - |
|
|
TWW15JR10ERES 0.1 OHM 5% 15W RADIAL Ohmite |
4,716 |
|
Datasheet |
TWW | Box | Active | 100 mOhms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.535" (39.00mm) | 2 | - |
|
25J1K8ERES 1.8K OHM 5% 5W AXIAL Ohmite |
247 |
|
Datasheet |
20 | Bulk | Active | 1.8 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
|
25J2K5ERES 2.5K OHM 5% 5W AXIAL Ohmite |
225 |
|
Datasheet |
20 | Bulk | Active | 2.5 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
