Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ERG-2SJ360RES 36 OHM 5% 2W AXIAL Panasonic Electronic Components |
4,169 |
|
Datasheet |
ERG | Bulk | Obsolete | 36 Ohms | ±5% | 2W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 235°C | Axial | 0.157" Dia x 0.472" L (4.00mm x 12.00mm) | - | 2 | - |
|
|
ERG-2SJ752RES 7.5K OHM 5% 2W AXIAL Panasonic Electronic Components |
1,481 |
|
Datasheet |
ERG | Bulk | Obsolete | 7.5 kOhms | ±5% | 2W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 235°C | Axial | 0.157" Dia x 0.472" L (4.00mm x 12.00mm) | - | 2 | - |
|
ERX-2SJR51ARES 0.51 OHM 5% 2W AXIAL Panasonic Electronic Components |
4,737 |
|
Datasheet |
ERX | Tape & Reel (TR) | Obsolete | 510 mOhms | ±5% | 2W | Metal Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 235°C | Axial | 0.157" Dia x 0.472" L (4.00mm x 12.00mm) | - | 2 | - |
|
|
ERX-2SJ3R0ARES 3 OHM 5% 2W AXIAL Panasonic Electronic Components |
4,204 |
|
Datasheet |
ERX | Tape & Reel (TR) | Obsolete | 3 Ohms | ±5% | 2W | Metal Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 235°C | Axial | 0.157" Dia x 0.472" L (4.00mm x 12.00mm) | - | 2 | - |
|
|
ERG-2SJ473VRES 47K OHM 5% 2W AXIAL Panasonic Electronic Components |
1,654 |
|
Datasheet |
ERG | Tape & Box (TB) | Obsolete | 47 kOhms | ±5% | 2W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 235°C | Axial | 0.157" Dia x 0.472" L (4.00mm x 12.00mm) | - | 2 | - |
|
ERG-3SJ150ARES 15 OHM 5% 3W AXIAL Panasonic Electronic Components |
3,788 |
|
Datasheet |
ERG | Tape & Reel (TR) | Obsolete | 15 Ohms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERG-3SJ563ARES 56K OHM 5% 3W AXIAL Panasonic Electronic Components |
2,487 |
|
Datasheet |
ERG | Tape & Reel (TR) | Obsolete | 56 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERG-3SJ391ARES 390 OHM 5% 3W AXIAL Panasonic Electronic Components |
2,972 |
|
Datasheet |
ERG | Tape & Reel (TR) | Obsolete | 390 Ohms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERG-3SJ181ARES 180 OHM 5% 3W AXIAL Panasonic Electronic Components |
2,246 |
|
Datasheet |
ERG | Tape & Reel (TR) | Obsolete | 180 Ohms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|

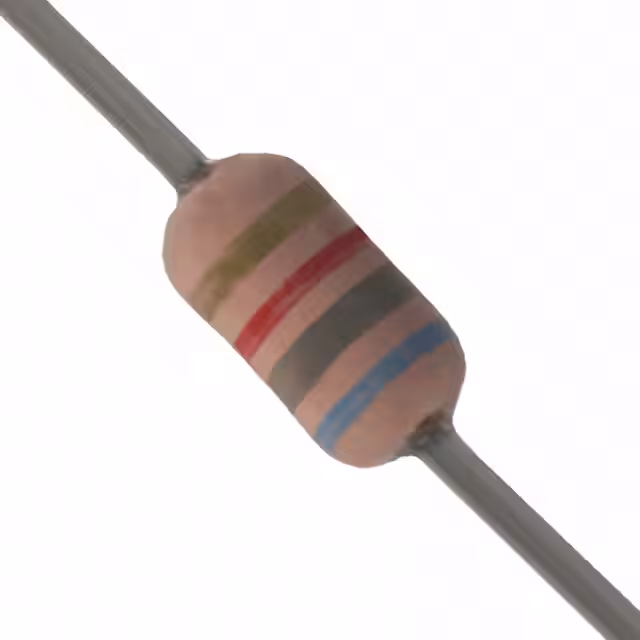

ERD-S2TJ682VRES 6.8K OHM 5% 1/4W AXIAL Panasonic Electronic Components |
1,061 |
|
Datasheet |
ERDS2 | Cut Tape (CT) | Obsolete | 6.8 kOhms | ±5% | 0.25W, 1/4W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
