Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ERG-3SJ122RES 1.2K OHM 5% 3W AXIAL Panasonic Electronic Components |
1,667 |
|
Datasheet |
ERG | Bulk | Obsolete | 1.2 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERG-3SJ152RES 1.5K OHM 5% 3W AXIAL Panasonic Electronic Components |
1,182 |
|
Datasheet |
ERG | Bulk | Obsolete | 1.5 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERG-3SJ622RES 6.2K OHM 5% 3W AXIAL Panasonic Electronic Components |
3,909 |
|
Datasheet |
ERG | Bulk | Obsolete | 6.2 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERG-3SJ303RES 30K OHM 5% 3W AXIAL Panasonic Electronic Components |
2,999 |
|
Datasheet |
ERG | Bulk | Obsolete | 30 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|

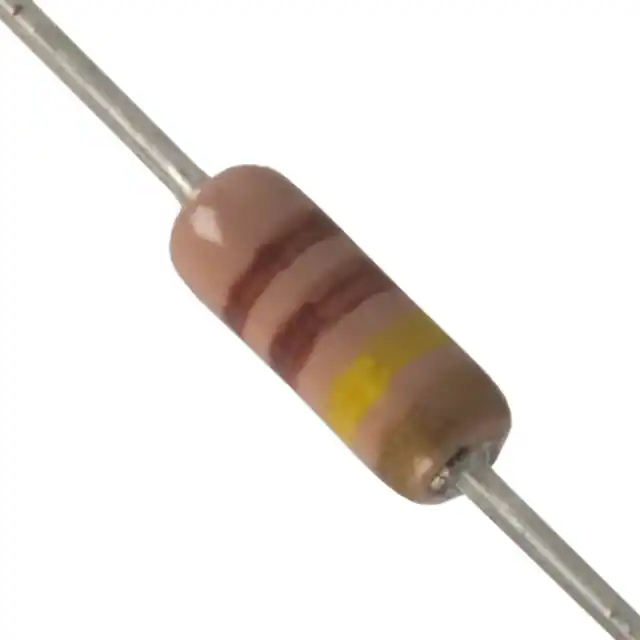

ERD-S1TJ114VRES 110K OHM 5% 1/2W AXIAL Panasonic Electronic Components |
1,050 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 110 kOhms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -500ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|

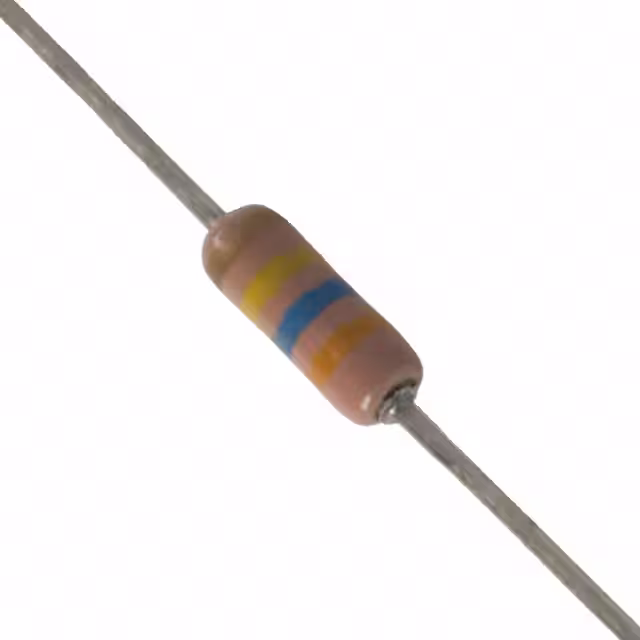

ERD-S1TJ364VRES 360K OHM 5% 1/2W AXIAL Panasonic Electronic Components |
4,712 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 360 kOhms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -500ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|

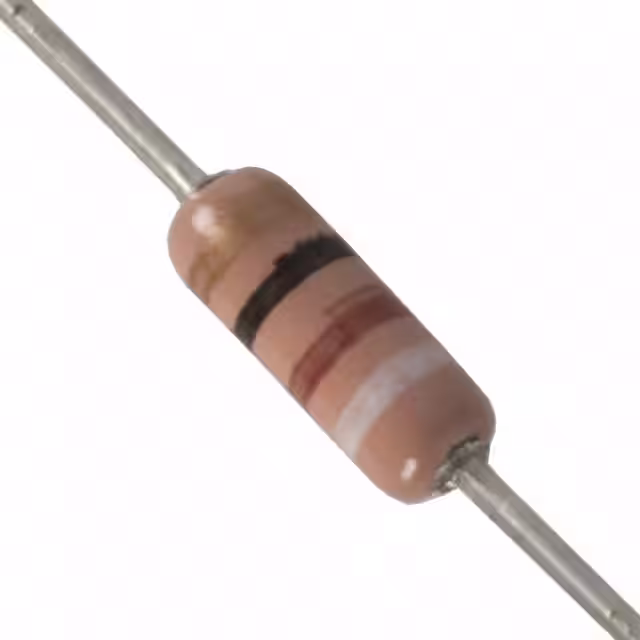

ERD-S1TJ910VRES 91 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
4,630 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 91 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERD-S1TJ270VRES 27 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
3,935 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 27 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERG-1SJ471VRES 470 OHM 5% 1W AXIAL Panasonic Electronic Components |
1,214 |
|
Datasheet |
ERG | Cut Tape (CT) | Obsolete | 470 Ohms | ±5% | 1W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 235°C | Axial | 0.110" Dia x 0.354" L (2.80mm x 9.00mm) | - | 2 | - |
|
|
ERG-1SJ332VRES 3.3K OHM 5% 1W AXIAL Panasonic Electronic Components |
3,639 |
|
Datasheet |
ERG | Cut Tape (CT) | Obsolete | 3.3 kOhms | ±5% | 1W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 235°C | Axial | 0.110" Dia x 0.354" L (2.80mm x 9.00mm) | - | 2 | - |
