Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

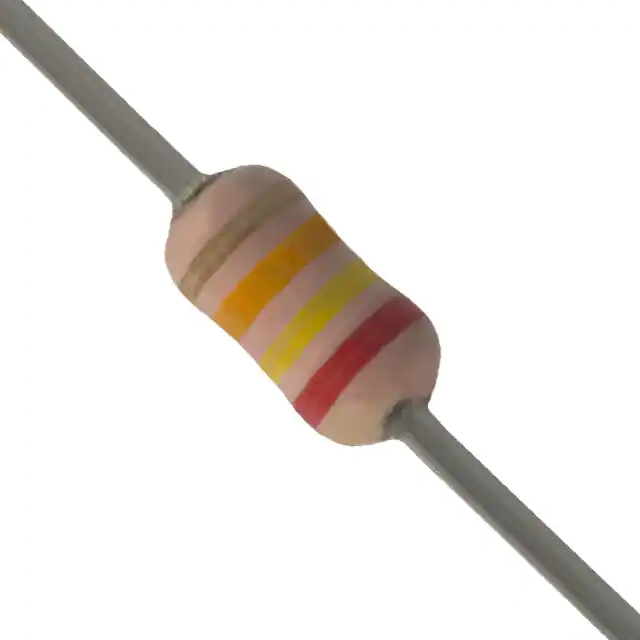

ERD-S2TJ243VRES 24K OHM 5% 1/4W AXIAL Panasonic Electronic Components |
3,153 |
|
Datasheet |
ERDS2 | Cut Tape (CT) | Obsolete | 24 kOhms | ±5% | 0.25W, 1/4W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
|
ERD-S2TJ244VRES 240K OHM 5% 1/4W AXIAL Panasonic Electronic Components |
3,581 |
|
Datasheet |
ERDS2 | Cut Tape (CT) | Obsolete | 240 kOhms | ±5% | 0.25W, 1/4W | Carbon Film | - | -150/ -700ppm/°C | -55°C ~ 155°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
|
ERG-3SJ243ARES 24K OHM 5% 3W AXIAL Panasonic Electronic Components |
1,650 |
|
Datasheet |
ERG | Tape & Reel (TR) | Obsolete | 24 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
ERX-3SJR68RES 0.68 OHM 5% 3W AXIAL Panasonic Electronic Components |
4,451 |
|
Datasheet |
ERX | Bulk | Obsolete | 680 mOhms | ±5% | 3W | Metal Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERX-3SJR75RES 0.75 OHM 5% 3W AXIAL Panasonic Electronic Components |
2,814 |
|
Datasheet |
ERX | Bulk | Obsolete | 750 mOhms | ±5% | 3W | Metal Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERX-3SJ3R0RES 3 OHM 5% 3W AXIAL Panasonic Electronic Components |
3,717 |
|
Datasheet |
ERX | Bulk | Obsolete | 3 Ohms | ±5% | 3W | Metal Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERX-3SJ3R3RES 3.3 OHM 5% 3W AXIAL Panasonic Electronic Components |
1,144 |
|
Datasheet |
ERX | Bulk | Obsolete | 3.3 Ohms | ±5% | 3W | Metal Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERX-3SJ5R6RES 5.6 OHM 5% 3W AXIAL Panasonic Electronic Components |
1,570 |
|
Datasheet |
ERX | Bulk | Obsolete | 5.6 Ohms | ±5% | 3W | Metal Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERG-3SJ221RES 220 OHM 5% 3W AXIAL Panasonic Electronic Components |
3,419 |
|
Datasheet |
ERG | Bulk | Obsolete | 220 Ohms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERG-3SJ102RES 1K OHM 5% 3W AXIAL Panasonic Electronic Components |
3,385 |
|
Datasheet |
ERG | Bulk | Obsolete | 1 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
