Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

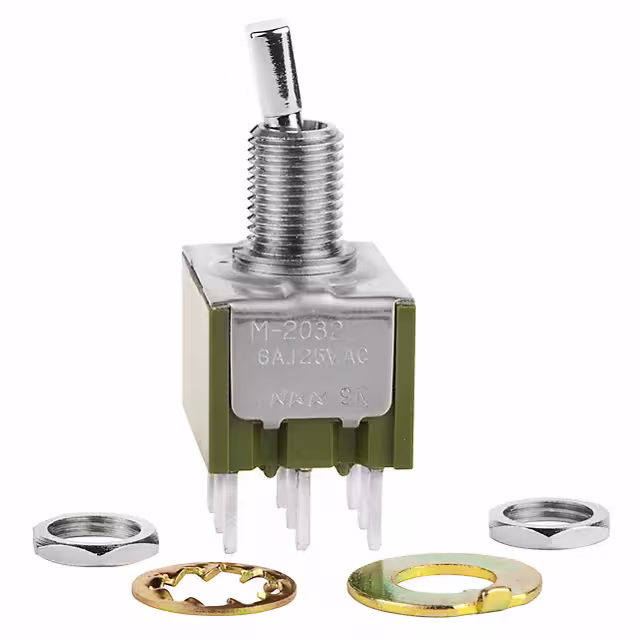

M2032E2S1W02SWITCH TOGGLE 3PDT 6A 125V NKK Switches |
4,057 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 6.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

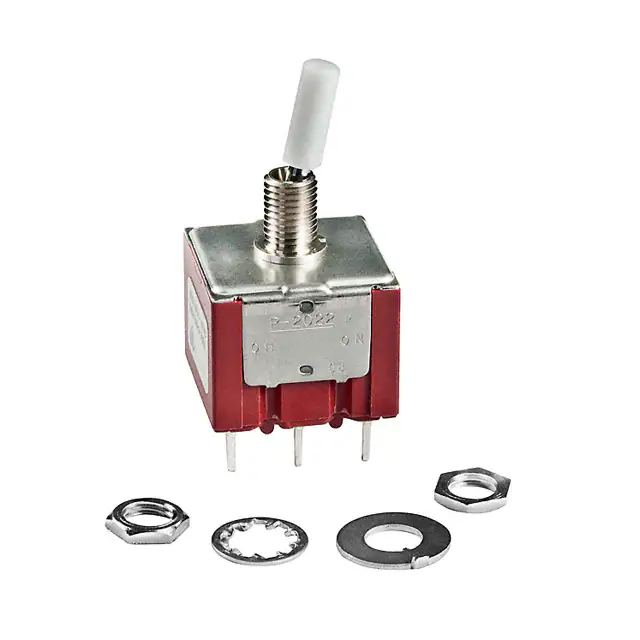

P2022PSWITCH TOGGLE DPDT 10A 125V NKK Switches |
3,266 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | DPDT | On-On | 10A (AC) | 125 V | - | Standard Round with Cap | 13.00mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | M6 x 0.75 | - | White Cap | -10°C ~ 85°C |
|

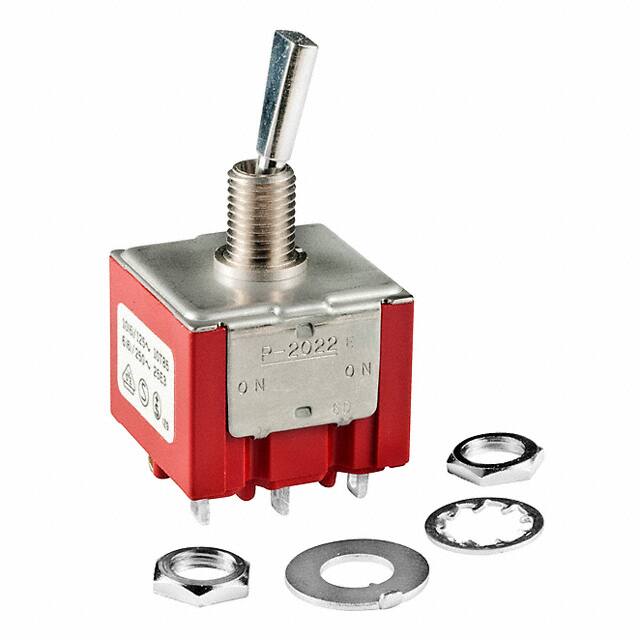

P2022ESWITCH TOGGLE DPDT 10A 125V NKK Switches |
3,159 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | DPDT | On-On | 10A (AC) | 125 V | - | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | M6 x 0.75 | - | - | -10°C ~ 85°C |
|

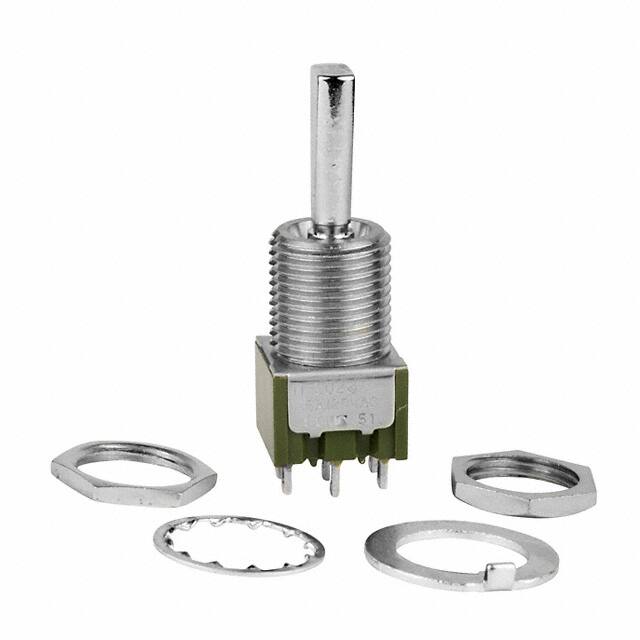

M2028RB1W01SWITCH TOGGLE DPDT 6A 125V NKK Switches |
4,997 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 15.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

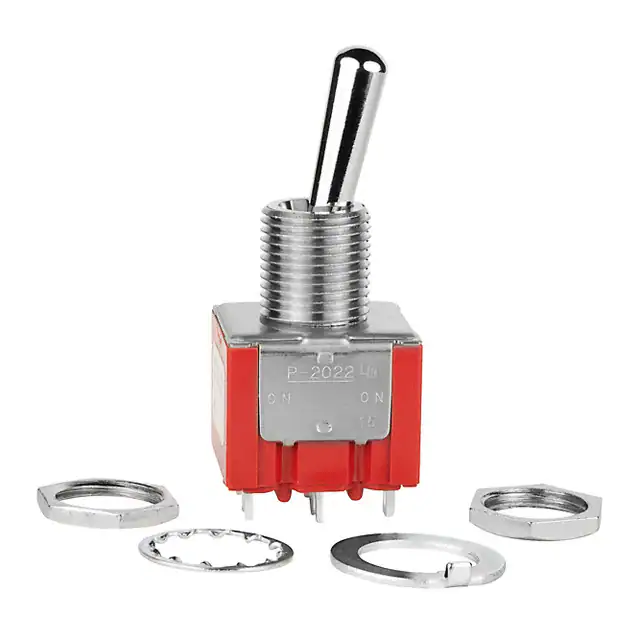

P2022BSWITCH TOGGLE DPDT 10A 125V NKK Switches |
2,512 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | DPDT | On-On | 10A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 85°C |
|

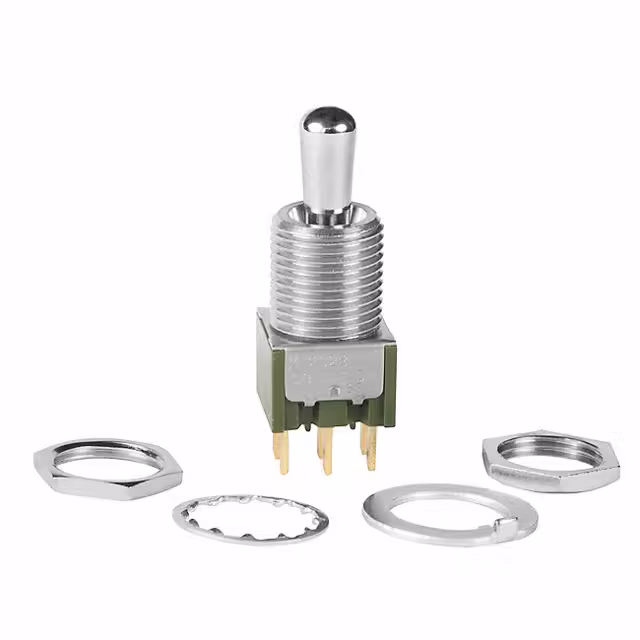

M2023BB1G02SWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
4,566 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

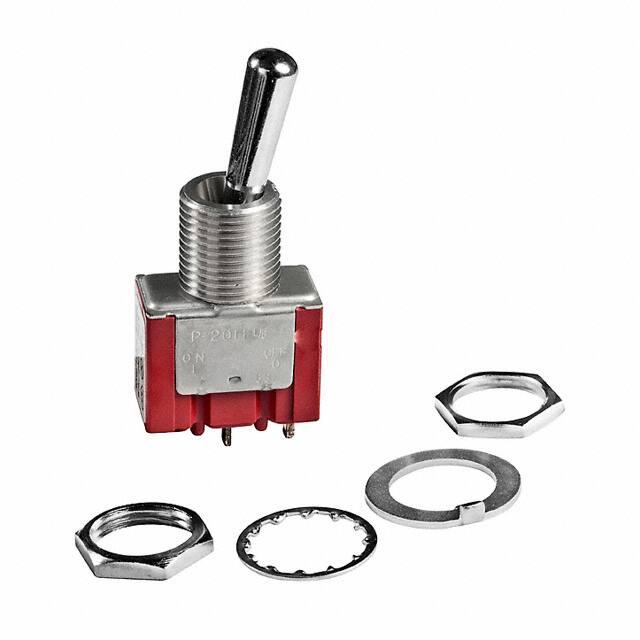

P2011BSWITCH TOGGLE SPST 10A 125V NKK Switches |
2,296 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 85°C |
|

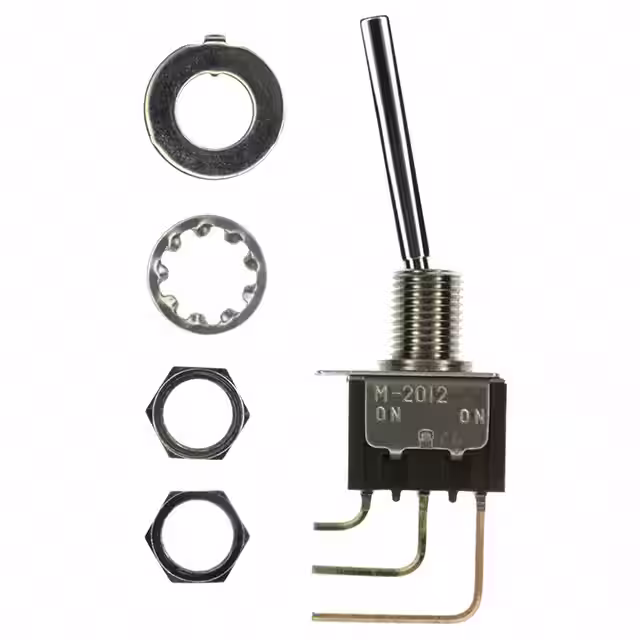

M2012E4S1G40SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
4,781 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 21.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

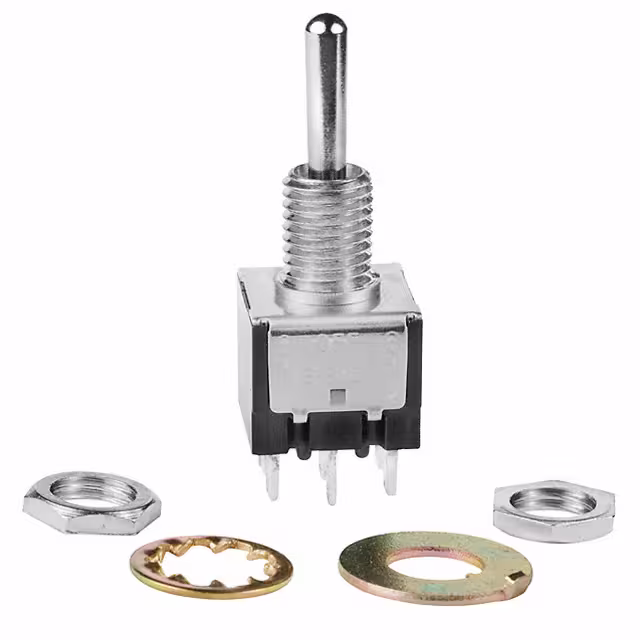

E2023P-BBSWITCH TOGGLE DPDT 3A 125V NKK Switches |
4,017 |
|
- |
E | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 3A (AC) | 125 V | - | Standard Round with Cap | 12.00mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | White Cap | -10°C ~ 70°C |
|

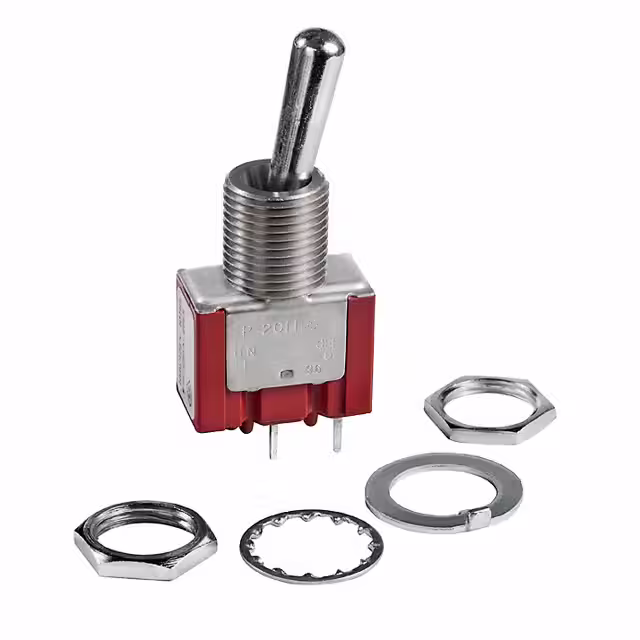

P2011BPSWITCH TOGGLE SPST 10A 125V NKK Switches |
4,743 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 85°C |
