Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

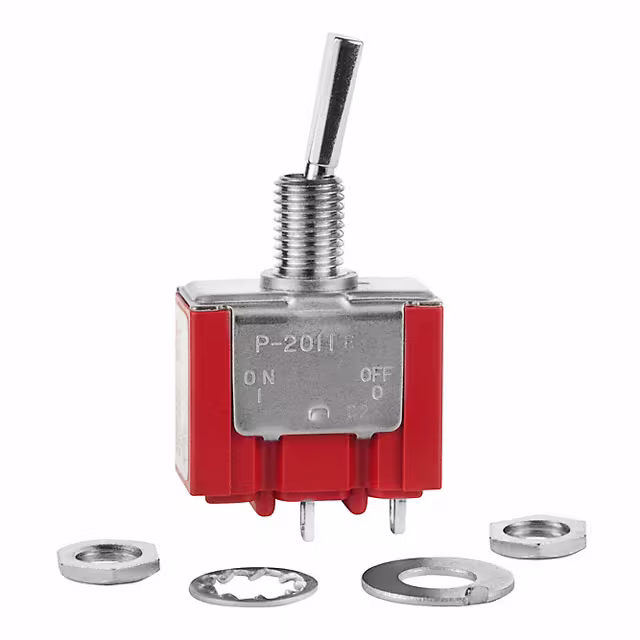

P2011ESWITCH TOGGLE SPST 10A 125V NKK Switches |
2,663 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | M6 x 0.75 | - | - | -10°C ~ 85°C |
|
M2015SS1W25SWITCH TOGGLE SPDT 6A 125V NKK Switches |
2,088 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

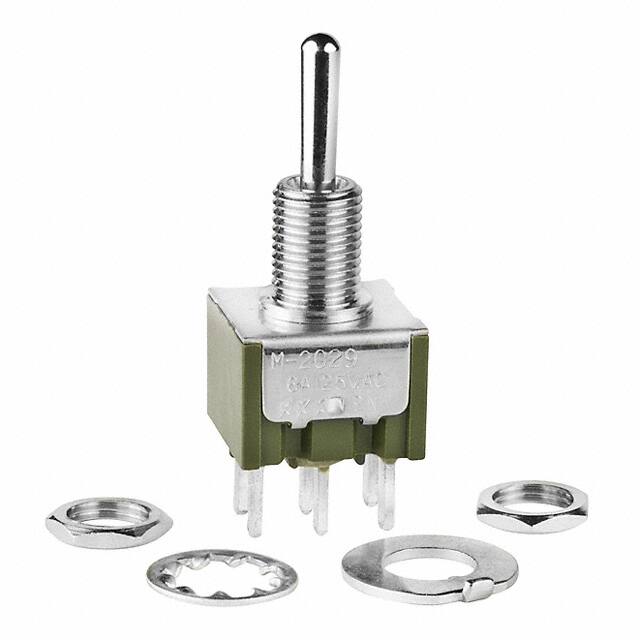

M2029SS1W02SWITCH TOGGLE DPDT 6A 125V NKK Switches |
1,452 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2023E2A1W03SWITCH TOGGLE DPDT 6A 125V NKK Switches |
3,996 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 6.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
P2012EZSWITCH TOGGLE SPDT 10A 125V NKK Switches |
2,623 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPDT | On-On | 10A (AC) | 125 V | - | Flatted | 11.40mm | Non-Illuminated | - | - | Quick Connect - 0.187" (4.7mm) | Circular - 6.35mm Dia | M6 x 0.75 | - | - | -10°C ~ 85°C |
|
|
E2028SWITCH TOGGLE DPDT 3A 125V NKK Switches |
4,130 |
|
- |
E | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 3A (AC) | 125 V | - | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|
M2022E4S1W01SWITCH TOGGLE DPDT 6A 125V NKK Switches |
3,782 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 21.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

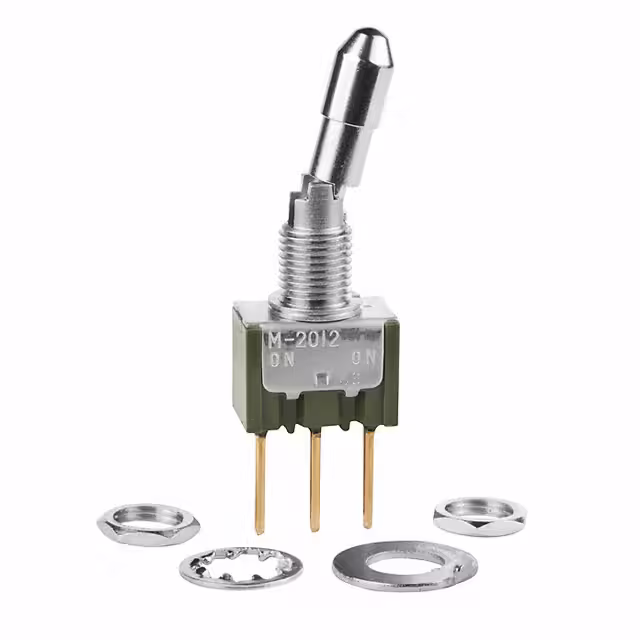

M2012LL1G05SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
1,519 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

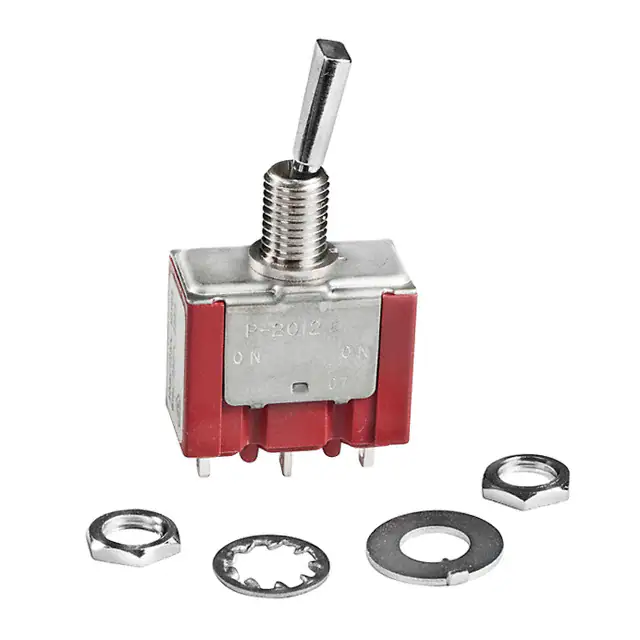

P2012ESWITCH TOGGLE SPDT 10A 125V NKK Switches |
3,248 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPDT | On-On | 10A (AC) | 125 V | - | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | M6 x 0.75 | - | - | -10°C ~ 85°C |
|
|
M2012LL1W01-HSWITCH TOGGLE SPDT 6A 125V NKK Switches |
2,685 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Gray Cap | -30°C ~ 85°C |
