Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2012SS1G03-BCSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
4,573 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Red Cap | -30°C ~ 85°C |
|
|
M2012SS1G03-BESWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
4,450 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Yellow Cap | -30°C ~ 85°C |
|
|
M2012SA1G03SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
3,531 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

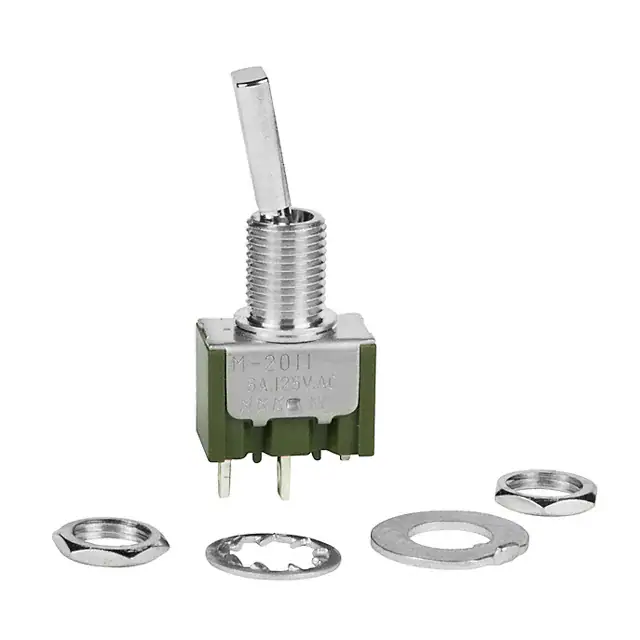

M2011ES1W01SWITCH TOGGLE SPST 6A 125V NKK Switches |
3,305 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

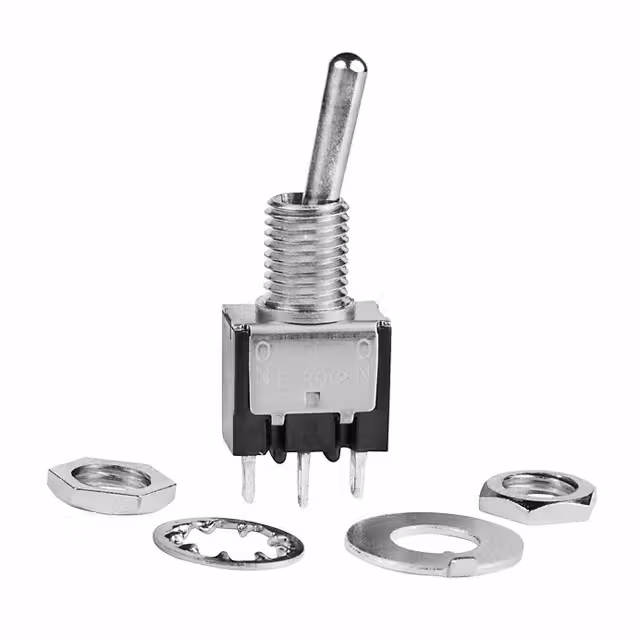

E2012SWITCH TOGGLE SPDT 3A 125V NKK Switches |
4,933 |
|
- |
E | Bulk | Obsolete | Panel Mount | SPDT | On-On | 3A (AC) | 125 V | - | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|
S1BSWITCH TOGGLE SPST 5A 125V NKK Switches |
1,752 |
|
- |
S | Bulk | Obsolete | Panel Mount | SPST | On-Off | 5A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

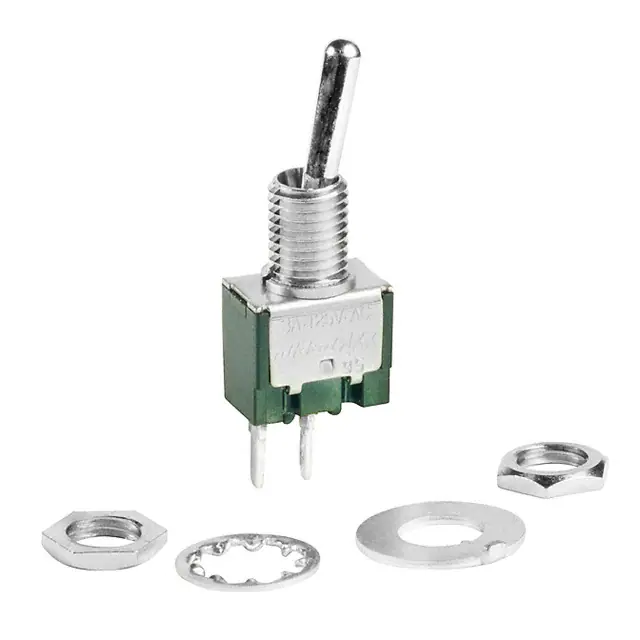

E2011PSWITCH TOGGLE SPST 0.4VA 28V NKK Switches |
4,959 |
|
- |
E | Bulk | Obsolete | Panel Mount | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|

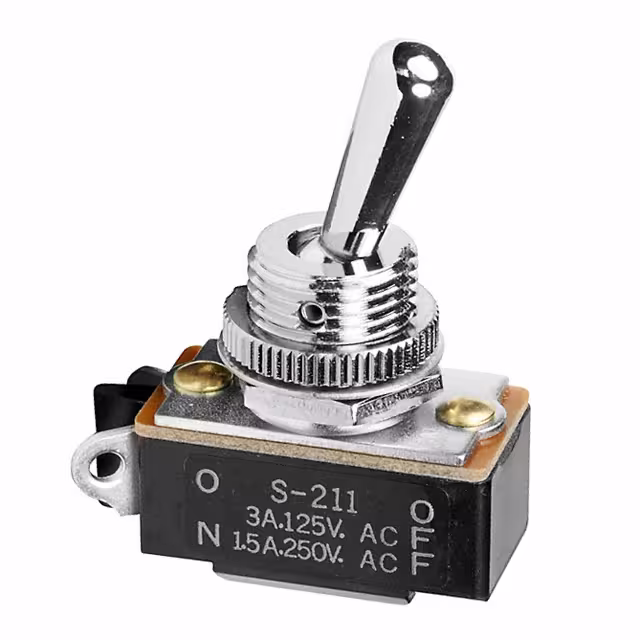

S211SWITCH TOGGLE SPST 3A 125V NKK Switches |
2,539 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | SPST | On-Off | 3A (AC), 1.5A (DC) | 125 V | 30 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

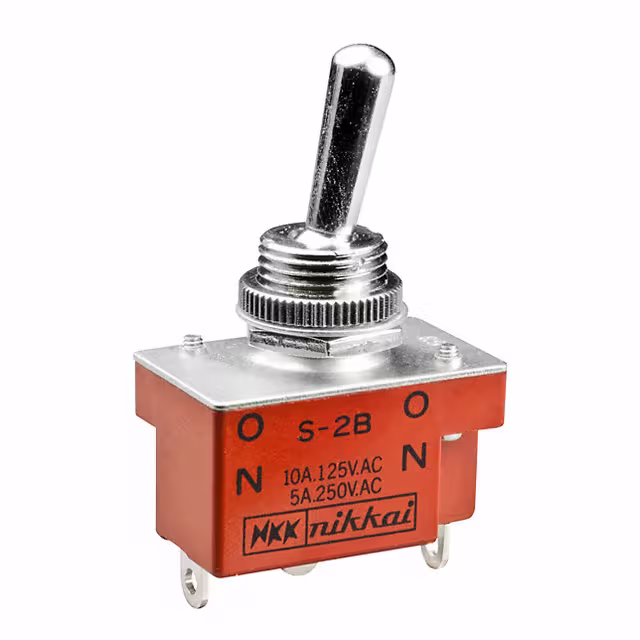

S2BSWITCH TOGGLE SPDT 5A 125V NKK Switches |
4,819 |
|
- |
S | Bulk | Obsolete | Panel Mount | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
M2012SA1G40SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
3,477 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
