Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZMA03A150L11PCSWITCH SNAP ACTION SPDT 3A 125V C&K |
1,618 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Straight | Through Hole | PC Pin | - | - | 39gf | 6.000gf | 0.343" (8.7mm) | 0.172" (4.4mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
|
ZMA01A080L04PCSWITCH SNAP ACTION SPDT 1A 125V C&K |
4,698 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Lever, Straight | Through Hole | PC Pin | - | - | 30gf | 5.000gf | 0.311" (7.90mm) | 0.118" (3.0mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
|
ZMA00A150L11ECSWITCH SNAP ACT SPDT 0.1A 125V C&K |
3,041 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 39gf | 6.000gf | 0.343" (8.7mm) | 0.172" (4.4mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|

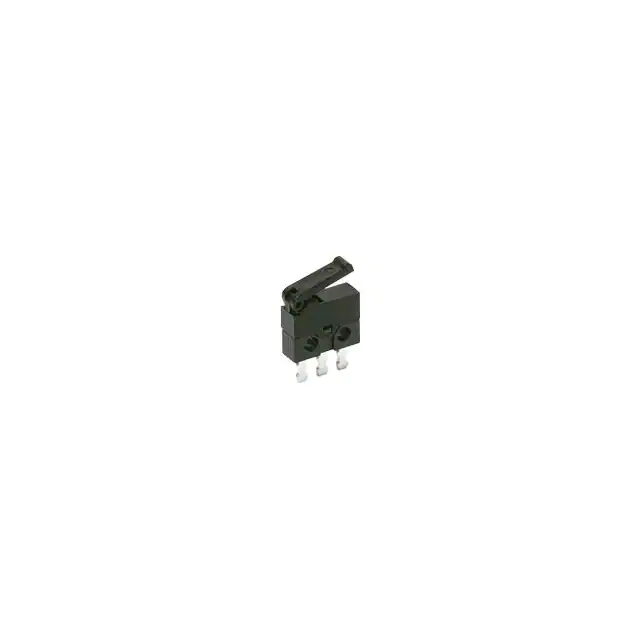

MDS6500AL03PSSWITCH SNAP ACTION SPDT 0.3A 30V C&K |
1,642 |
|
Datasheet |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.012" (0.3mm) | -25°C ~ 70°C |
|
|
ZMA00A150L11RCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
1,649 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 39gf | 6.000gf | 0.343" (8.7mm) | 0.172" (4.4mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
ZMA03A150L04LCSWITCH SNAP ACTION SPDT 3A 125V C&K |
4,126 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|
|
ZMA03A150L04RCSWITCH SNAP ACTION SPDT 3A 125V C&K |
4,372 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|
|
ZMAG00150S07LCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
3,805 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 65gf | 5.000gf | 0.380" (9.7mm) | 0.170" (4.3mm) | - | 0.020" (0.5mm) | -40°C ~ 85°C |
|
ZMA00A150S06LCSWITCH SNAP ACT SPDT 100MA 125V C&K |
4,795 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 49gf | 11gf | 0.420" (10.7mm) | 0.055" (1.4mm) | - | 0.049" (1.25mm) | -40°C ~ 85°C |
|
|
ZMAG00150L04RCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
3,621 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 8.000gf | 0.311" (7.90mm) | 0.118" (3.0mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
