Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCA01150P00RWSWITCH SNP ACT SPST-NC 0.1A 125V C&K |
2,388 |
|
Datasheet |
LCA | Bulk | Active | SPST-NC | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 150gf | 25gf | 0.340" (8.6mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 125°C |
|
|
ZMT0001SWITCH SNAP ACTION C&K |
4,098 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LCA10150P00PCSWITCH SNAP ACTION SPDT 10A 125V C&K |
3,116 |
|
Datasheet |
LCA | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | 25gf | 0.335" (8.5mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 125°C |
|
FDSD002RSWITCH DETECTOR SPST-NO 10MA 5V C&K |
3,295 |
|
Datasheet |
FDSD | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | - | 40gf | - | 0.063" (1.6mm) | 0.063" (1.6mm) | - | 0.057" (1.45mm) | -10°C ~ 60°C |
|

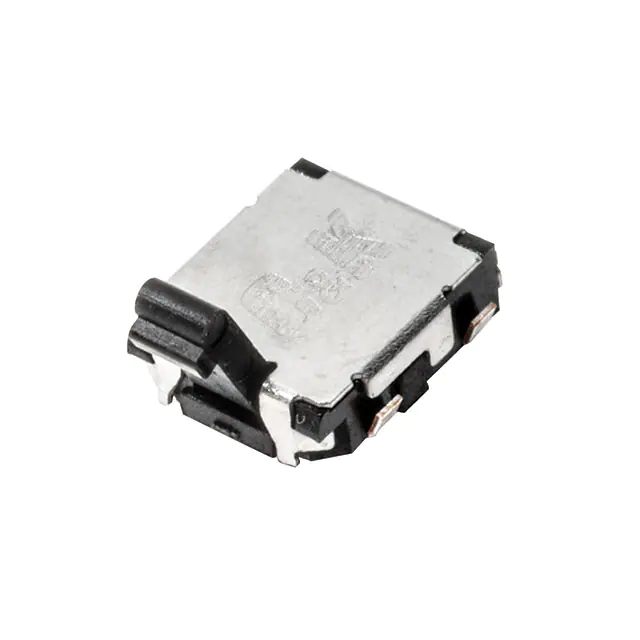

FDSE002RSWITCH DETECT SPST-NC 0.001A 5V C&K |
3,597 |
|
Datasheet |
FDSE | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 35gf | - | 0.059" (1.5mm) | 0.060" (1.5mm) | - | 0.064" (1.63mm) | -10°C ~ 60°C |
|
|
LCA01150S06SYSWITCH SNP ACT SPST-NO 0.1A 125V C&K |
4,641 |
|
Datasheet |
LCA | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 47gf | 5.000gf | 0.425" (10.8mm) | 0.154" (3.9mm) | 0.034" (0.86mm) | 0.024" (0.6mm) | -40°C ~ 125°C |
|
|
LCA01150T09PCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
2,679 |
|
Datasheet |
LCA | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 33gf | 2.000gf | 0.358" (9.1mm) | 0.219" (5.6mm) | 0.072" (1.83mm) | 0.031" (0.8mm) | -40°C ~ 125°C |
|
ZMCHF7L3KSWITCH SNAP ACTION SPDT 3A 125V C&K |
1,762 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Leaf | Through Hole | PC Pin | - | - | 30gf | - | 0.330" (8.4mm) | - | - | - | -30°C ~ 85°C |
|
|
ZMCHF7T23TSWITCH SNAP ACTION SPDT 3A 125V C&K |
3,981 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 25gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
|

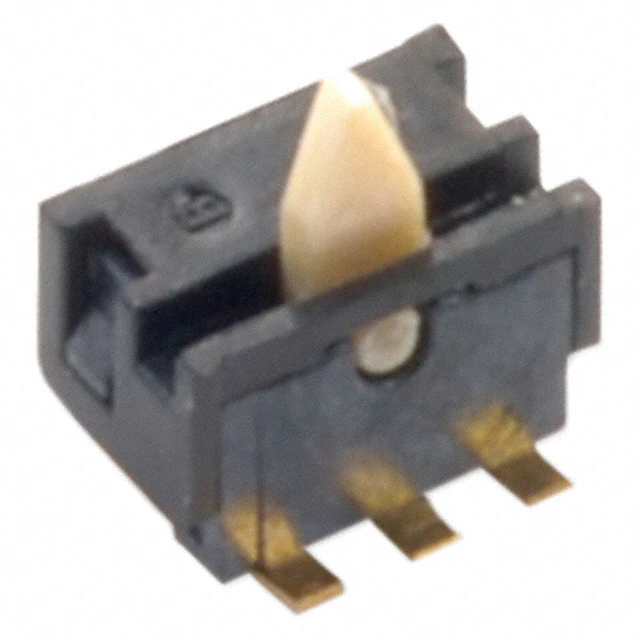

SDT001SWITCH DETECTOR SPDT 1MA 5V C&K |
2,792 |
|
Datasheet |
SDT | Tape & Reel (TR) | Obsolete | SPDT | Mom-Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 30gf | - | - | - | - | - | - |
