Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZMA00A150S07LCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
1,693 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 65gf | 5.000gf | 0.380" (9.7mm) | 0.170" (4.3mm) | - | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
ZMA03A150L08RCSWITCH SNAP ACTION SPDT 3A 125V C&K |
4,963 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 84gf | 8.000gf | 0.423" (10.75mm) | 0.138" (3.5mm) | - | 0.012" (0.3mm) | -40°C ~ 85°C |
|
|
ZMAG00150L04LCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
4,312 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 8.000gf | 0.311" (7.90mm) | 0.118" (3.0mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
|
ZMA03A150L11RCSWITCH SNAP ACTION SPDT 3A 125V C&K |
4,236 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 39gf | 6.000gf | 0.343" (8.7mm) | 0.172" (4.4mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
|
MDS6500AL02CRSWITCH SNAP ACTION SPDT 0.3A 30V C&K |
4,908 |
|
Datasheet |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Surface Mount, Right Angle | Gull Wing | - | - | 50gf | 3.000gf | 0.224" (5.7mm) | 0.071" (1.8mm) | - | 0.012" (0.3mm) | -25°C ~ 70°C |
|
LCA10150T21SCSWITCH SNAP ACTION SPDT 10A 125V C&K |
1,542 |
|
Datasheet |
LCA | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 35gf | 1.000gf | 0.362" (9.2mm) | 0.252" (6.4mm) | 0.062" (1.6mm) | 0.040" (1.0mm) | -40°C ~ 125°C |
|

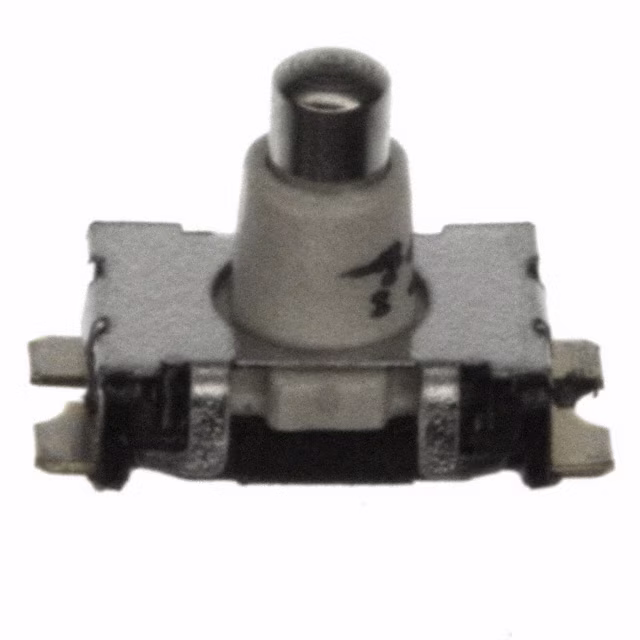

KSU213 ST LFGSWITCH DETECTOR SPST-NO 10MA 50V C&K |
4,243 |
|
Datasheet |
KSU | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (AC/DC) | 50 V | 50 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 70gf | - | - | - | - | - | -40°C ~ 125°C |
|
LCA10150P00LCSWITCH SNAP ACTION SPDT 10A 125V C&K |
1,437 |
|
Datasheet |
LCA | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | 25gf | 0.335" (8.5mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 125°C |
|
|
LCA10150P00RCSWITCH SNAP ACTION SPDT 10A 125V C&K |
1,480 |
|
Datasheet |
LCA | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | 25gf | 0.335" (8.5mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 125°C |
|
JCH1AQNPRSWITCH DETECTOR SPST-NO 1MA 5V C&K |
2,102 |
|
Datasheet |
JCH | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | IP64 - Dust Tight, Water Resistant | - | 65gf | - | 0.138" (3.5mm) | - | - | 0.098" (2.5mm) | -20°C ~ 70°C |
