Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZMA03A150P00RCSWITCH SNAP ACTION SPDT 3A 125V C&K |
4,093 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 150gf | 35gf | 0.272" (6.9mm) | 0.024" (0.6mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|
ZMAG00080L04RCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
1,933 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 30gf | 5.000gf | 0.311" (7.90mm) | 0.118" (3.0mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
|
ZMA03A150L04ECSWITCH SNAP ACTION SPDT 3A 125V C&K |
3,051 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 50gf | 8.000gf | 0.311" (7.90mm) | 0.118" (3.0mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
|
ZMA00A080A03RCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
2,167 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 34gf | 6.000gf | 0.539" (13.7mm) | 0.154" (3.9mm) | - | 0.020" (0.5mm) | -40°C ~ 85°C |
|

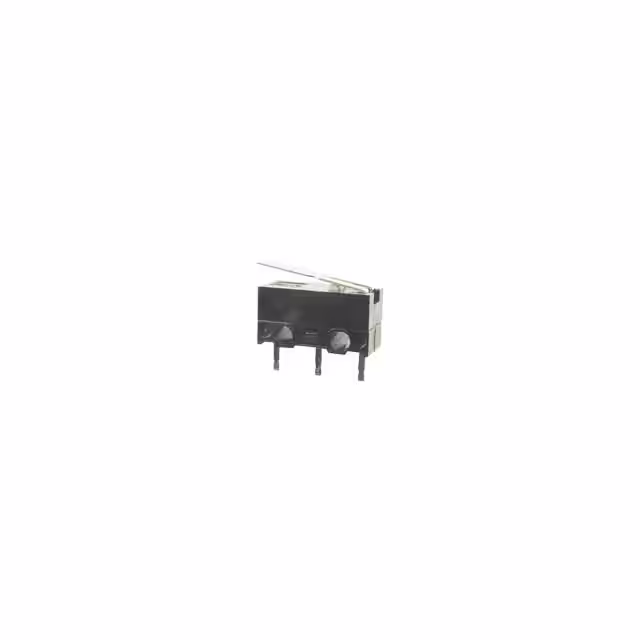

ZMA00A150P00RCSWITCH SNAP ACT SPDT 100MA 125V C&K |
3,908 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 150gf | 35gf | 0.272" (6.9mm) | 0.024" (0.6mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|
|
ZMA00A150L21LCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
2,958 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole | PC Pin | - | - | 47gf | 7.000gf | 0.330" (8.4mm) | 0.094" (2.4mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|
|
ZMAG00150L08RCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
1,190 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 48gf | 8.000gf | 0.423" (10.75mm) | 0.138" (3.5mm) | - | 0.012" (0.3mm) | -40°C ~ 85°C |
|
|
ZMA03A080L04PCSWITCH SNAP ACTION SPDT 3A 125V C&K |
2,834 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Straight | Through Hole | PC Pin | - | - | 30gf | 5.000gf | 0.311" (7.90mm) | 0.118" (3.0mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
|
ZMA03A150S06LCSWITCH SNAP ACTION SPDT 3A 125V C&K |
2,897 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 49gf | 11gf | 0.421" (10.70mm) | 0.055" (1.4mm) | - | 0.049" (1.25mm) | -40°C ~ 85°C |
|
|
MDS6500AL03RLSWITCH SNAP ACTION SPDT 0.3A 30V C&K |
4,312 |
|
Datasheet |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | - | 0.264" (6.7mm) | 0.020" (0.5mm) | - | 0.060" (1.5mm) | -25°C ~ 70°C |
