Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

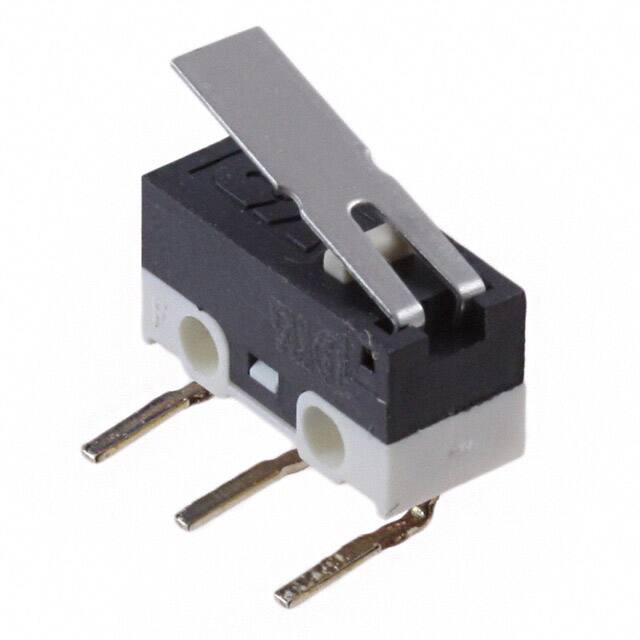

ZMCHF7L3RSWITCH SNAP ACTION SPDT 3A 125V C&K |
3,434 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Leaf | Through Hole, Right Angle | PC Pin | - | - | 30gf | - | 0.330" (8.4mm) | - | - | - | -30°C ~ 85°C |
|

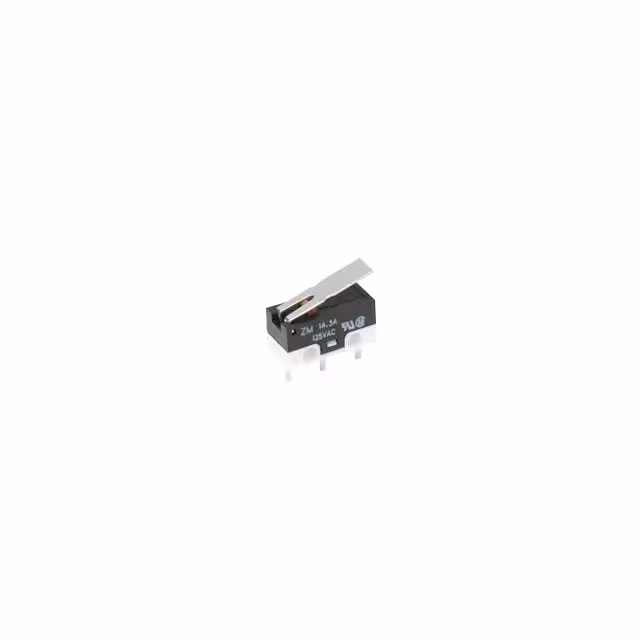

ZMCJF7T13LSWITCH SNAP ACTION SPDT 3A 125V C&K |
2,738 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 40gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
|
TF2CFH8ST1440CSWITCH SNAP ACTION SPDT 6A 125V C&K |
2,740 |
|
Datasheet |
TF2 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 28gf | 3.000gf | 0.736" (18.7mm) | 0.218" (5.5mm) | 0.045" (1.1mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
LCA01150T05RCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
1,143 |
|
Datasheet |
LCA | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 6.000gf | 0.355" (9.0mm) | 0.043" (1.1mm) | 0.031" (0.80mm) | 0.024" (0.6mm) | -40°C ~ 125°C |
|

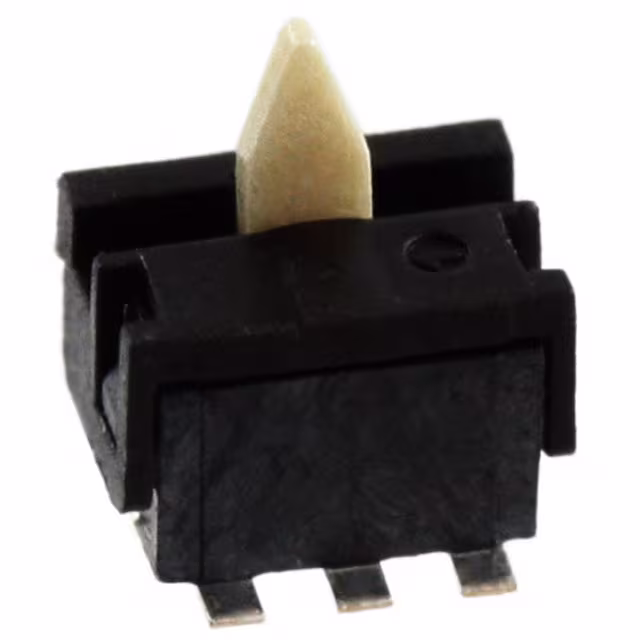

SDT004SWITCH DETECTOR SPDT 1MA 5V C&K |
1,796 |
|
Datasheet |
SDT | Tape & Reel (TR) | Obsolete | SPDT | Mom-Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 30gf | - | - | - | - | - | - |
|
SSW115SSWITCH DETECTOR DPDT 20MA 18V C&K |
4,317 |
|
Datasheet |
SSW | Cut Tape (CT) | Active | DPDT | On-Mom | 20mA (DC) | - | 18 V | Round (Pin Plunger) | Surface Mount | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | 204gf | - | - | - | - | - | -40°C ~ 85°C |
|
|
LCA06150T16LYSWITCH SNAP ACT SPST-NO 6A 125V C&K |
4,098 |
|
Datasheet |
LCA | Bulk | Active | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 40gf | 1.000gf | 0.358" (9.1mm) | 0.283" (7.2mm) | 0.050" (1.3mm) | 0.026" (0.7mm) | -40°C ~ 125°C |
|
ZMSH00130T10LLCSWITCH SNAP ACT SPDT 100MA 12V C&K |
4,285 |
|
Datasheet |
ZMS | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 12 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP65 - Dust Tight, Water Resistant | Support Posts | 195gf | 55gf | 0.440" (11.2mm) | 0.152" (3.85mm) | 0.020" (0.5mm) | 0.084" (2.14mm) | -40°C ~ 85°C |
|
|
ZMSH00130T11LLCSWITCH SNAP ACT SPDT 100MA 12V C&K |
4,135 |
|
Datasheet |
ZMS | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 12 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | IP65 - Dust Tight, Water Resistant | Support Posts | 160gf | 45gf | 0.539" (13.7mm) | 0.188" (4.8mm) | 0.030" (0.76mm) | 0.101" (2.57mm) | -40°C ~ 85°C |
|
|
G00986922SNAP SWITCH C&K |
2,380 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
