Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZMCJM9P0TSWITCH SNAP ACT SPDT 200MA 60V C&K |
4,802 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | - | 0.276" (7.0mm) | - | - | - | -30°C ~ 85°C |
|
ZMCHM9T23TSWITCH SNAP ACT SPDT 200MA 60V C&K |
4,795 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 25gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
|
ZMSMH3130P00PRCSWITCH SNAP ACTION SPDT 3A 125V C&K |
2,576 |
|
Datasheet |
ZMSM | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | - | 130gf | 13gf | 0.266" (6.75mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.069" (1.75mm) | -40°C ~ 85°C |
|
|
LCA10150T43SCSWITCH SNAPACT SPDT 10A LEVER C&K |
1,137 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G01337717Linear IC's C&K |
3,170 |
|
Datasheet |
ZMV | Bulk | Active | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 150gf | 20gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.045" (1.1mm) | -40°C ~ 85°C |
|
ZMSH03130P00RRCSWITCH SNAP ACTION SPDT 3A 125V C&K |
1,317 |
|
Datasheet |
ZMS | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP65 - Dust Tight, Water Resistant | Support Posts | 130gf | 13gf | 0.415" (10.55mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|

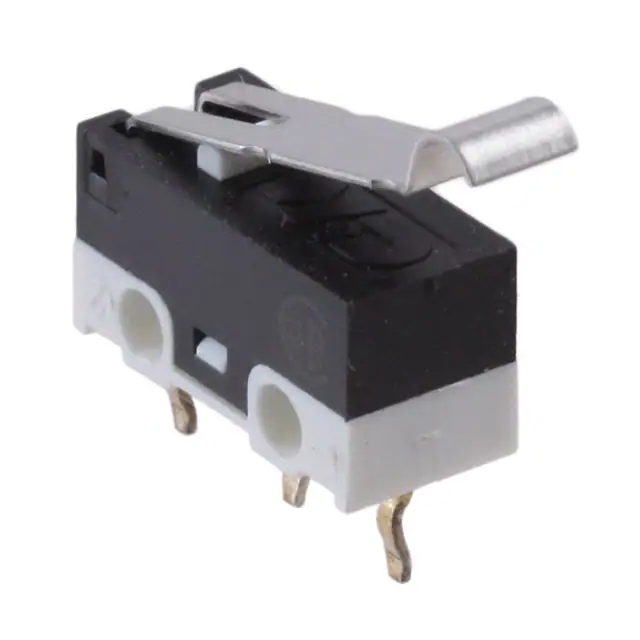

ZMCHM9T23KSWITCH SNAP ACT SPDT 200MA 60V C&K |
3,416 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 25gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
|
|
ZMCJM9T13TSWITCH SNAP ACT SPDT 200MA 60V C&K |
3,860 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 40gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
|
|
LCA01150A05SCSWITCH SNAP ACT SPDT 0.1A 125V C&K |
1,950 |
|
Datasheet |
LCA | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 50gf | 6.000gf | 0.355" (9.0mm) | 0.140" (3.6mm) | 0.031" (0.80mm) | 0.024" (0.6mm) | -40°C ~ 125°C |
|
ZPA00A150L04TSWITCH SNP ACT SPST-NO 0.1A 125V C&K |
2,863 |
|
Datasheet |
ZPA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Surface Mount | Gull Wing | - | - | 150gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -40°C ~ 85°C |
