Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCAS5150T06QWSWITCH SNAP ACT SPST-NC 5A 125V C&K |
4,031 |
|
Datasheet |
LCA | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 45gf | 5.000gf | 0.350" (8.9mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|
|
ZMW00AP00SCAASWITCH SNAP ACTION SPDT 0.1A 30V C&K |
2,008 |
|
Datasheet |
ZMW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.030" (0.8mm) | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|
ZMCHM9T23RSWITCH SNAP ACT SPDT 200MA 60V C&K |
4,843 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 25gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
|
|
ZMW00AT10SCAASWITCH SNAP ACTION SPDT 0.1A 30V C&K |
2,299 |
|
Datasheet |
ZMW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.090" (2.3mm) | - | 0.098" (2.5mm) | -40°C ~ 85°C |
|
|
ZMW00AT10PCAASWITCH SNAP ACTION SPDT 0.1A 30V C&K |
3,118 |
|
Datasheet |
ZMW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.090" (2.3mm) | - | 0.098" (2.5mm) | -40°C ~ 85°C |
|
|
ZMW00AT10PCDCSWITCH SNAP ACTION SPDT 0.1A 30V C&K |
3,695 |
|
Datasheet |
ZMW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.090" (2.3mm) | - | 0.098" (2.5mm) | -40°C ~ 85°C |
|
|
ZMW00AT10LCDCSWITCH SNAP ACTION SPDT 0.1A 30V C&K |
1,222 |
|
Datasheet |
ZMW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.090" (2.3mm) | - | 0.098" (2.5mm) | -40°C ~ 85°C |
|
|
ZMW00AT10SCDCSWITCH SNAP ACTION SPDT 0.1A 30V C&K |
2,433 |
|
Datasheet |
ZMW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.090" (2.3mm) | - | 0.098" (2.5mm) | -40°C ~ 85°C |
|

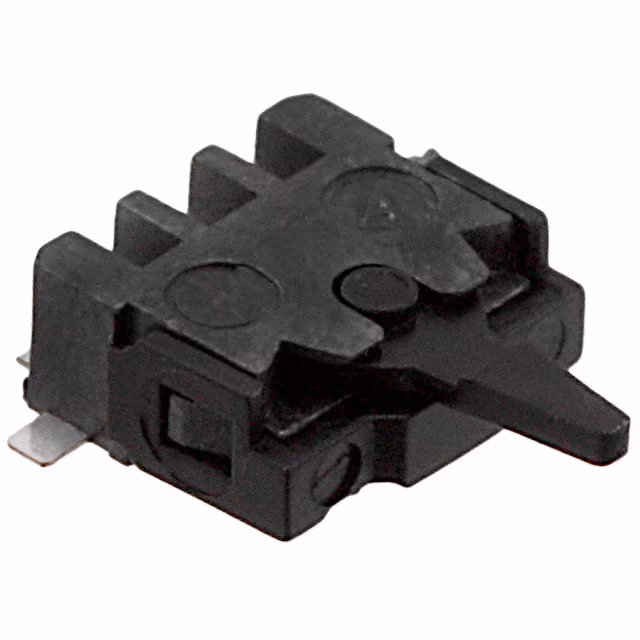

SDP002SWITCH DETECTOR SPDT 1MA 5V C&K |
4,208 |
|
Datasheet |
SDP | Tape & Reel (TR) | Obsolete | SPDT | Mom-Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 12gf | - | 0.106" (2.7mm) | - | - | - | -20°C ~ 70°C |
|
ZMCJM9T13RSWITCH SNAP ACT SPDT 200MA 60V C&K |
2,085 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 40gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
