Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

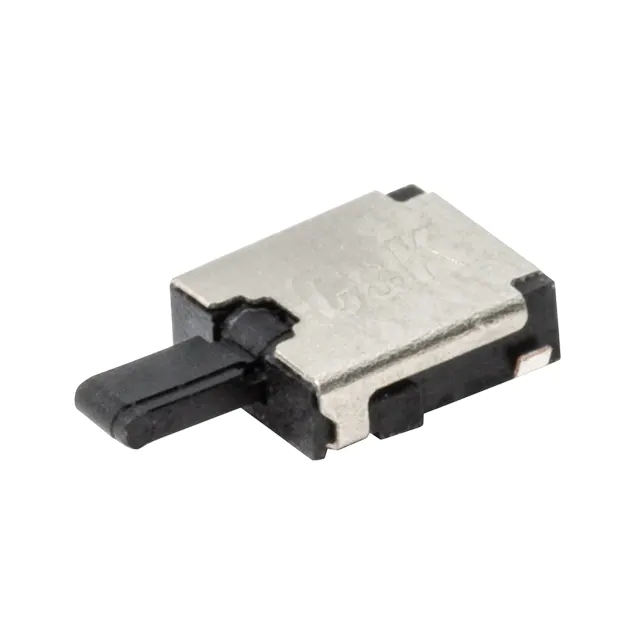

FDSD001RSWITCH DETECTOR SPST-NO 10MA 5V C&K |
3,044 |
|
Datasheet |
FDSD | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 40gf | - | 0.063" (1.6mm) | 0.063" (1.6mm) | - | 0.057" (1.45mm) | -10°C ~ 60°C |
|

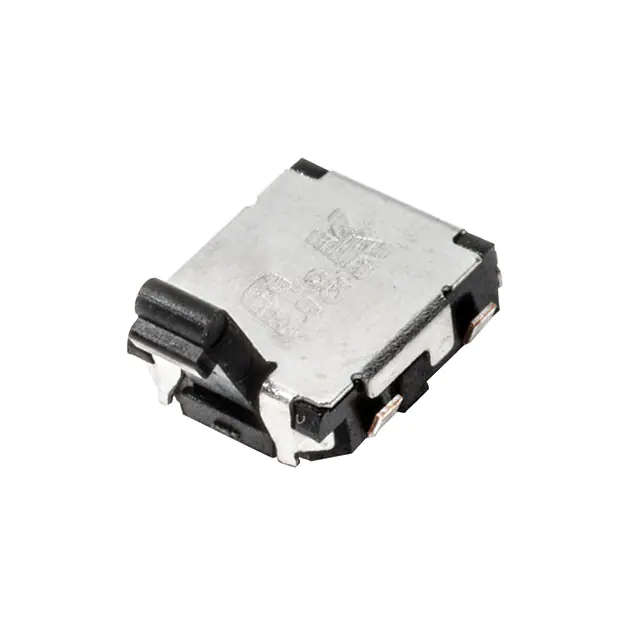

FDSE001RSWITCH DETECT SPST-NC 0.001A 5V C&K |
1,946 |
|
Datasheet |
FDSE | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 35gf | - | 0.059" (1.5mm) | 0.060" (1.5mm) | - | 0.064" (1.63mm) | -10°C ~ 60°C |
|

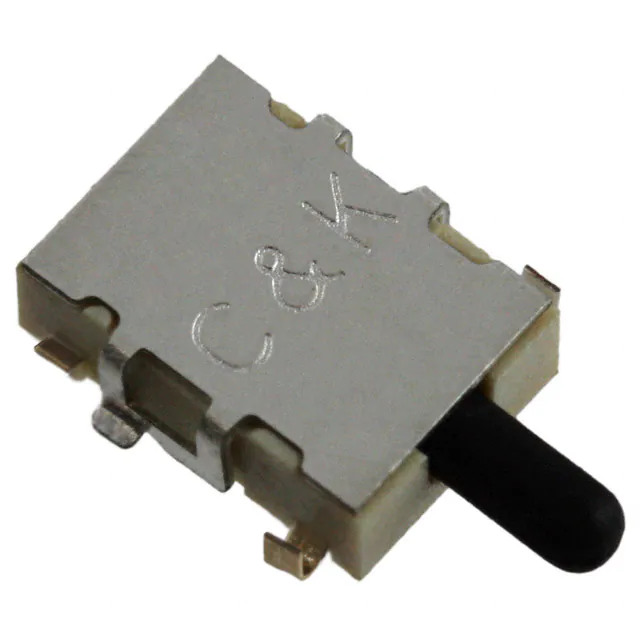

SDS005RSWITCH DETECT SPST-NC 100MA 12V C&K |
3,088 |
|
Datasheet |
SDS | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Overtravel Plunger | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 75gf | - | - | - | - | 0.079" (2.0mm) | -40°C ~ 85°C |
|

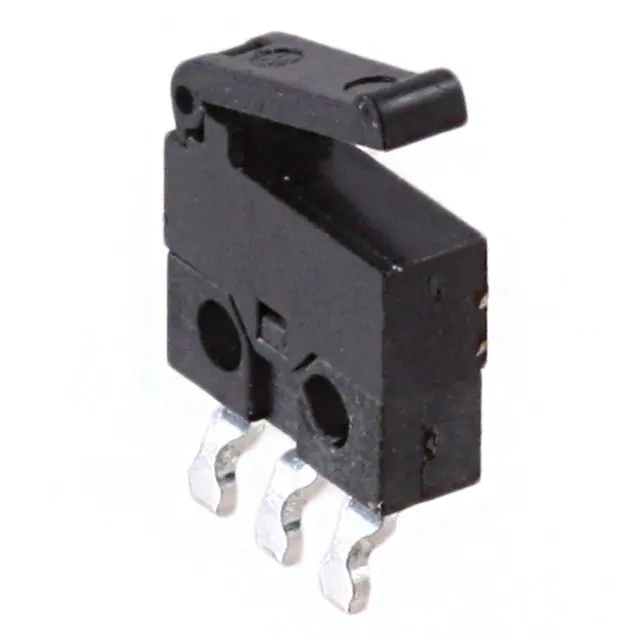

MDS6500AL02SLSWITCH SNAP ACT SPDT 300MA 30V C&K |
3,100 |
|
Datasheet |
MDS | Tape & Reel (TR) | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Surface Mount, Right Angle | Gull Wing | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|

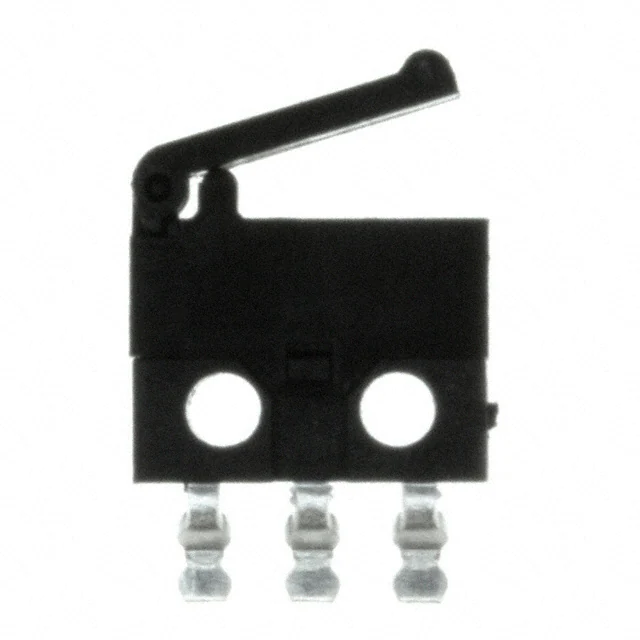

MDS6500AL02SRSWITCH SNAP ACT SPDT 300MA 30V C&K |
3,338 |
|
Datasheet |
MDS | Tape & Reel (TR) | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Surface Mount, Right Angle | Gull Wing | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|
ZMCJF7L0LSWITCH SNAP ACTION SPDT 3A 125V C&K |
4,043 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Leaf | Through Hole, Right Angle | PC Pin | - | - | 50gf | - | 0.330" (8.4mm) | - | - | - | -30°C ~ 85°C |
|

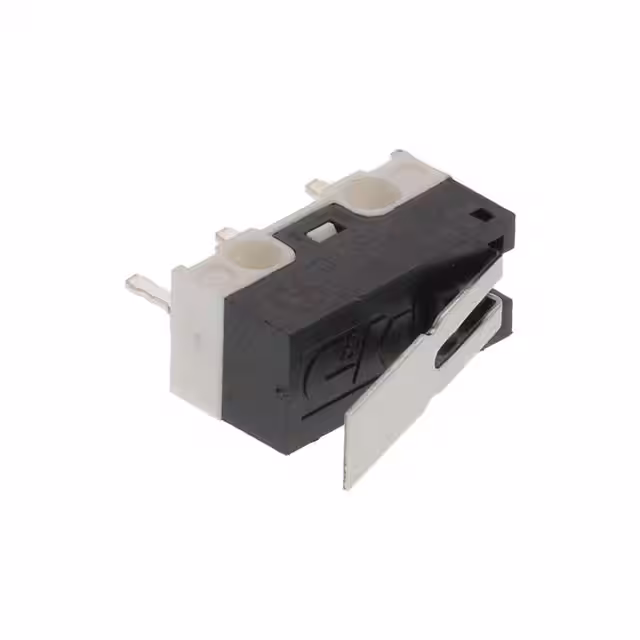

ZMCJF7L0TSWITCH SNAP ACTION SPDT 3A 125V C&K |
299 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Leaf | Through Hole | PC Pin | - | - | 50gf | - | 0.330" (8.4mm) | - | - | - | -30°C ~ 85°C |
.JPG)
|

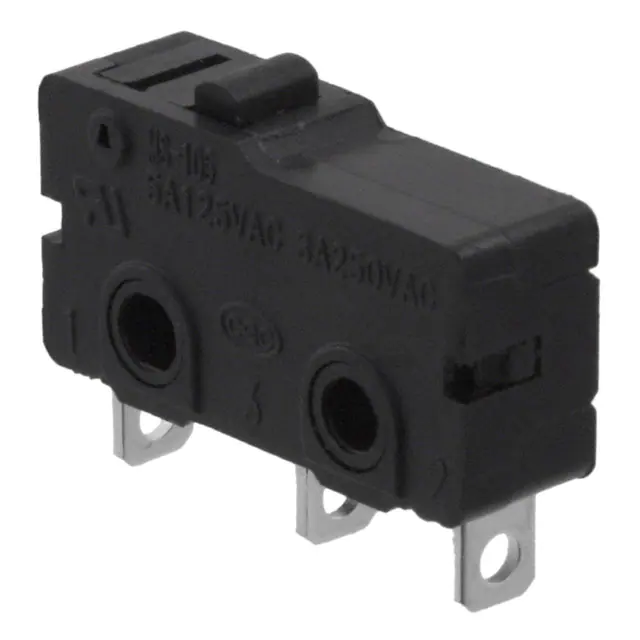

MS-105A01 (H)SWITCH SNAP ACTION SPDT 5A 125V C&K |
4,370 |
|
Datasheet |
MS, COMAX | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 230gf | 55gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.008" (0.2mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
ZMW00AP00PCAASWITCH SNAP ACTION SPDT 0.1A 30V C&K |
2,915 |
|
Datasheet |
ZMW | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.030" (0.8mm) | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|

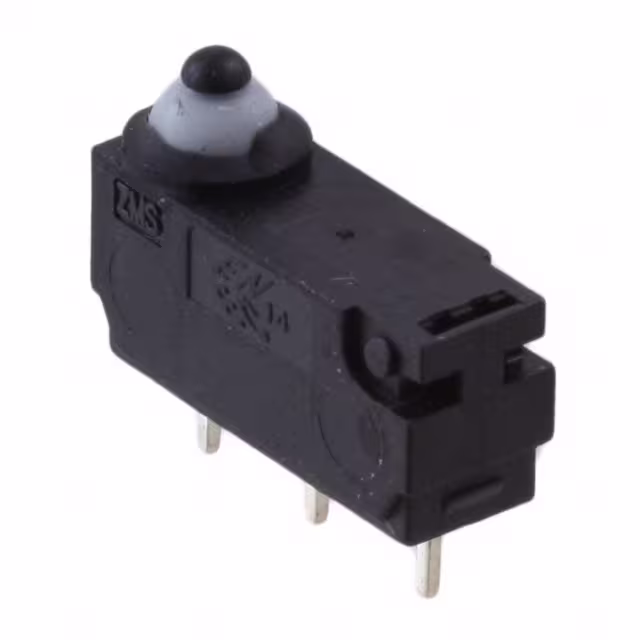

ZMSH00130P00PSCSWITCH SNAP ACT SPDT 100MA 12V C&K |
578 |
|
Datasheet |
ZMS | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | - | 130gf | 13gf | 0.415" (10.55mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
