Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

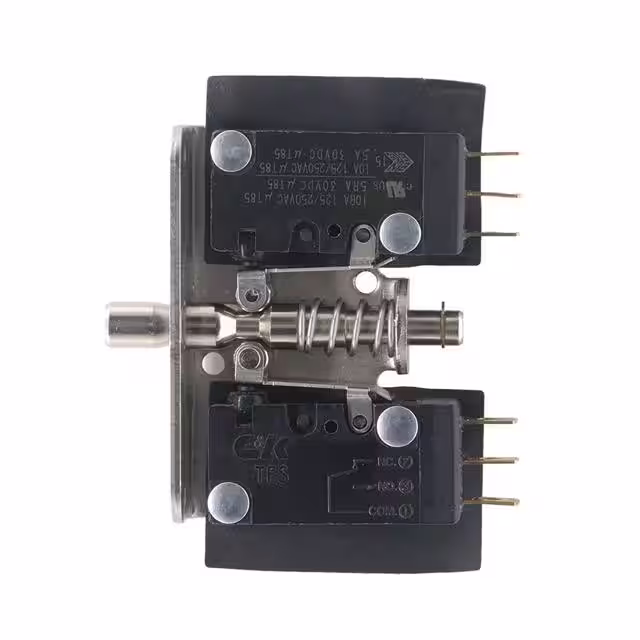

23SL40410SWITCH SNAP ACTION DPDT 10A 125V C&K |
460 |
|
Datasheet |
SL | Box | Active | DPDT | On-On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | - | - | - | - | - | -40°C ~ 85°C |
|

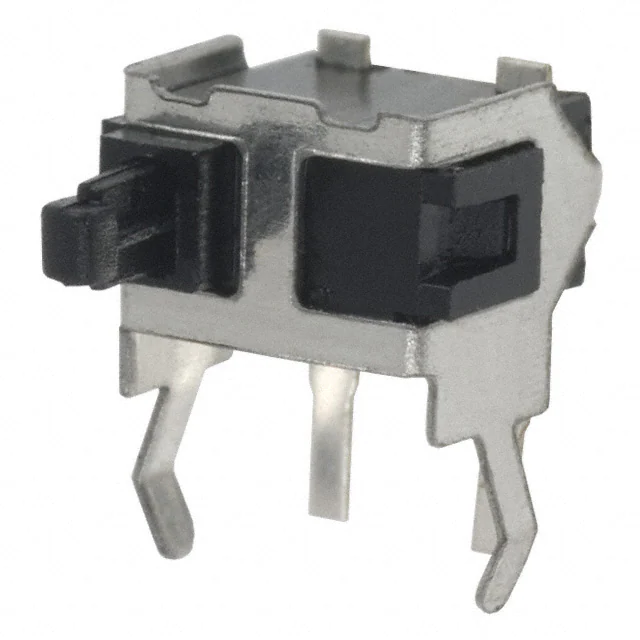

DDS003SWITCH SNAP SPST-NO 100MA 30V C&K |
204 |
|
Datasheet |
DDS | Tray | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Overtravel Plunger | Through Hole | PC Pin | - | - | 40gf | - | 0.197" (5.0mm) | - | - | 0.079" (2.0mm) | -20°C ~ 70°C |
|
ZMT01ACFP00PCESWITCH SNAP ACT SPDT 0.1A 125V C&K |
170 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 100mA (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 170gf | 35gf | 0.232" (5.9mm) | 0.020" (0.5mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|
|
ZMT03ACJS05LCESWITCH SNAP ACTION SPDT 3A 125V C&K |
184 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | - | 48gf | 7.000gf | 0.358" (9.1mm) | 0.138" (3.5mm) | - | 0.026" (0.7mm) | -40°C ~ 85°C |
|

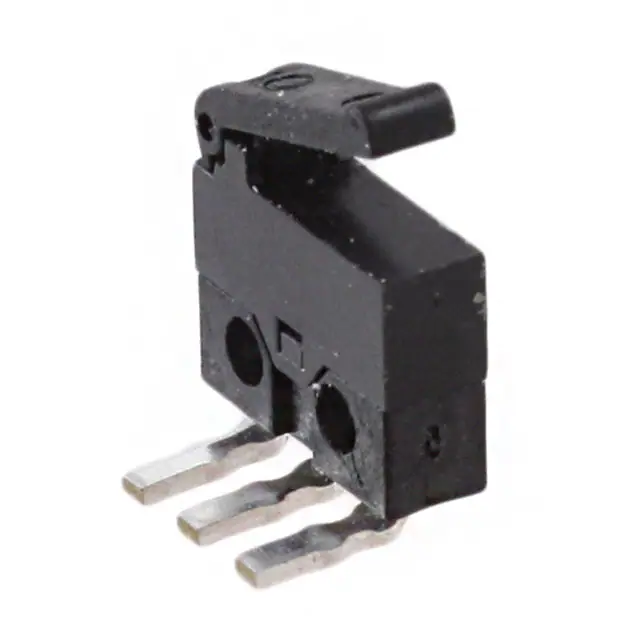

MDS6500AL02LLSWITCH SNAP ACT SPDT 300MA 30V C&K |
10,193 |
|
Datasheet |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|
|
ZMT05ACJP00SCESWITCH SNAP ACTION SPDT 5A 125V C&K |
172 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 170gf | 35gf | 0.232" (5.9mm) | 0.020" (0.5mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|
|
ZMT03ACJP00SCESWITCH SNAP ACTION SPDT 3A 125V C&K |
117 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 170gf | 35gf | 0.232" (5.9mm) | 0.020" (0.5mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|

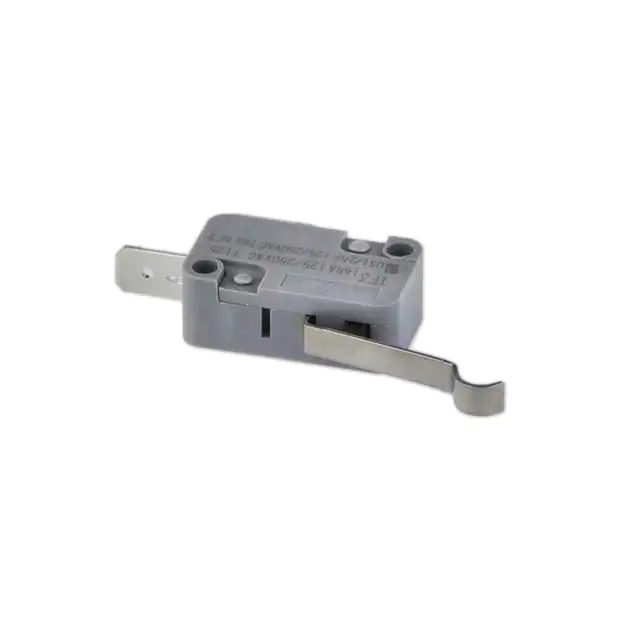

TF316ECT244AYSWITCH SNAP ACT SPST-NO 16A 125V C&K |
470 |
|
Datasheet |
TF3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 88gf | - | 0.724" (18.40mm) | 0.283" (7.2mm) | 0.114" (2.9mm) | 0.059" (1.5mm) | -40°C ~ 125°C |
|

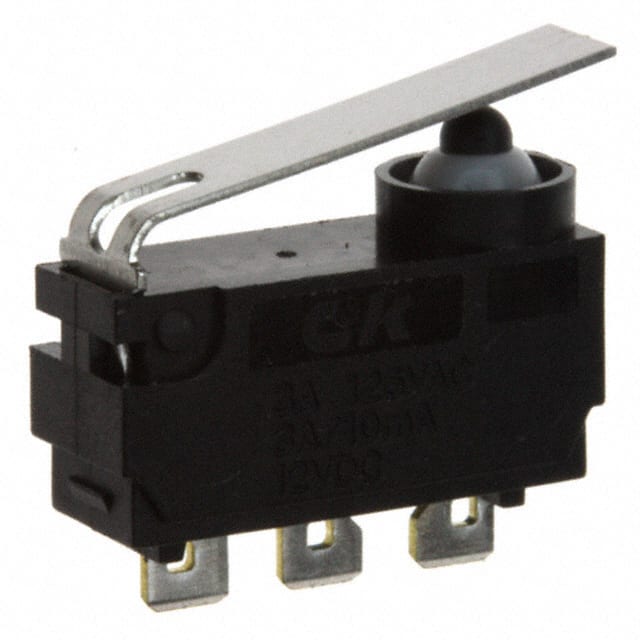

ZMSH03130T10SSCSWITCH SNAP ACTION SPDT 3A 125V C&K |
1,065 |
|
Datasheet |
ZMS | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 195gf | 55gf | 0.440" (11.2mm) | 0.152" (3.85mm) | 0.020" (0.5mm) | 0.084" (2.14mm) | -40°C ~ 85°C |
|

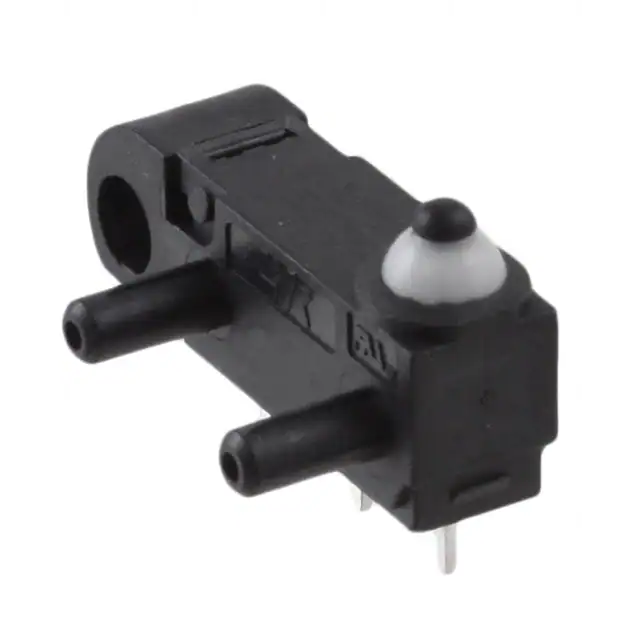

ZMSMH3130P00PLCSWITCH SNAP ACTION SPDT 3A 125V C&K |
512 |
|
Datasheet |
ZMSM | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | Support Posts | 130gf | 13gf | 0.266" (6.75mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
