Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZMCJM9L0LSWITCH SNAP ACT SPDT 200MA 60V C&K |
120 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Leaf | Through Hole, Right Angle | PC Pin | - | - | 50gf | - | 0.330" (8.4mm) | - | - | - | -30°C ~ 85°C |
|
DS1F5BQ3SWITCH SNAP ACT SPDT 100MA 125V C&K |
4,999 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.770" (19.5mm) | - | - | 0.398" (10.1mm) | -40°C ~ 85°C |
|
|
DS1F5BQ1SWITCH SNAP ACT SPDT 100MA 125V C&K |
3,943 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | 0.770" (19.5mm) | - | - | 0.398" (10.1mm) | -40°C ~ 85°C |
|
TMCGF5SP0040CSWITCH SNAP ACTION SPDT 1A 125V C&K |
1,025 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 28gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|

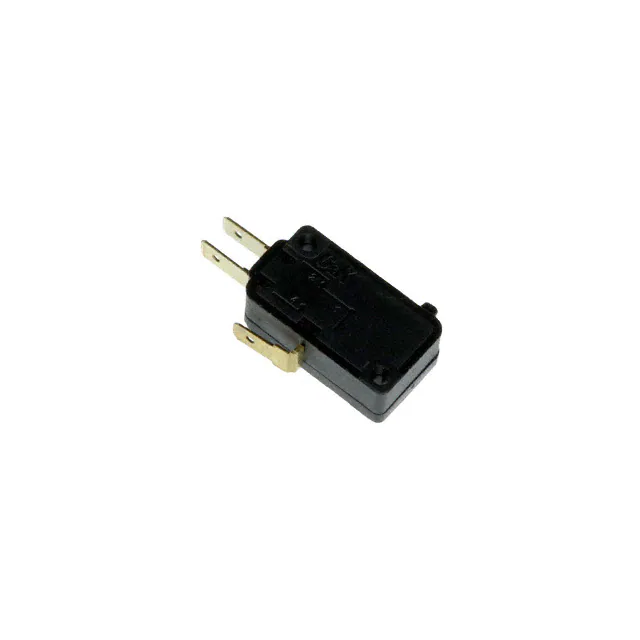

TFCJF5SP0040CSWITCH SNAP ACTION SPDT 1A 125V C&K |
8,709 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 35gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

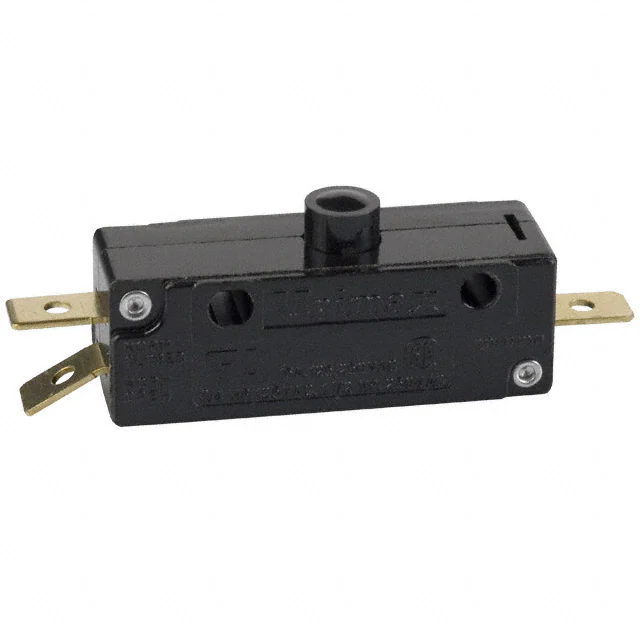

ASKHC2P04ACSWITCH SNAP ACTION SPDT 15A 125V C&K |
210 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
DS1F5CQ1SWITCH SNAP ACT SPDT 100MA 125V C&K |
205 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 385gf | - | 0.660" (16.76mm) | - | - | 0.520" (13.2mm) | -40°C ~ 85°C |
|
ASKHF3J04AYSWITCH SNAP ACT SPST-NO 25A 125V C&K |
1,973 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|

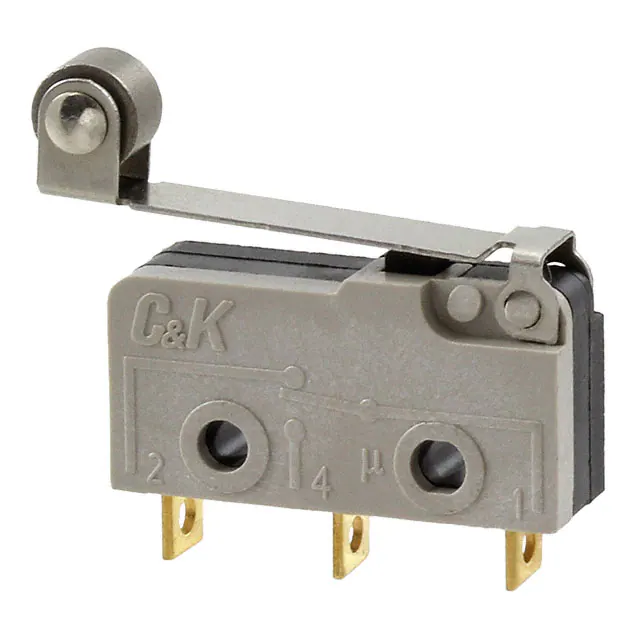

LCGGF5A10ECUSWITCH SNAP ACTION SPDT 1A 125V C&K |
133 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 48gf | 6.000gf | 0.560" (14.2mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|
MMGGD1L0TSWITCH SNAP ACTION SPDT 7A 250V C&K |
289 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 115gf | 20gf | 0.330" (8.4mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
