Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

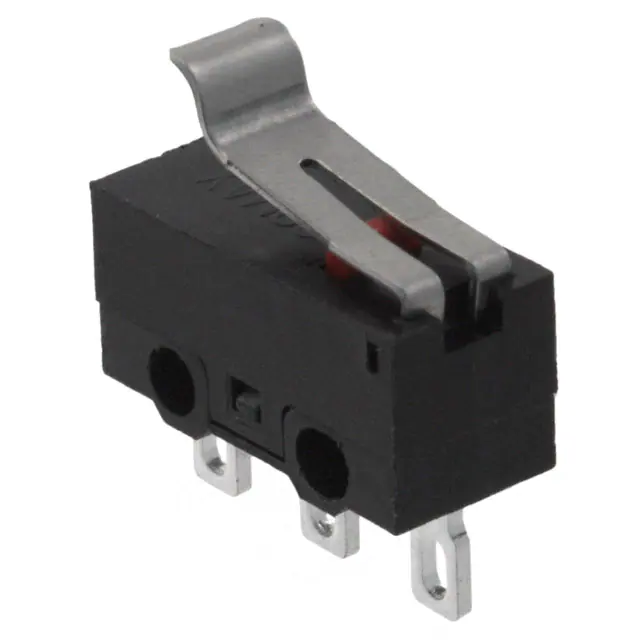

MS-118405-HSWITCH SNAP ACT SPDT 100MA 30V C&K |
1,354 |
|
Datasheet |
MS, COMAX | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 25gf | 5.000gf | 0.335" (8.5mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | - |
|

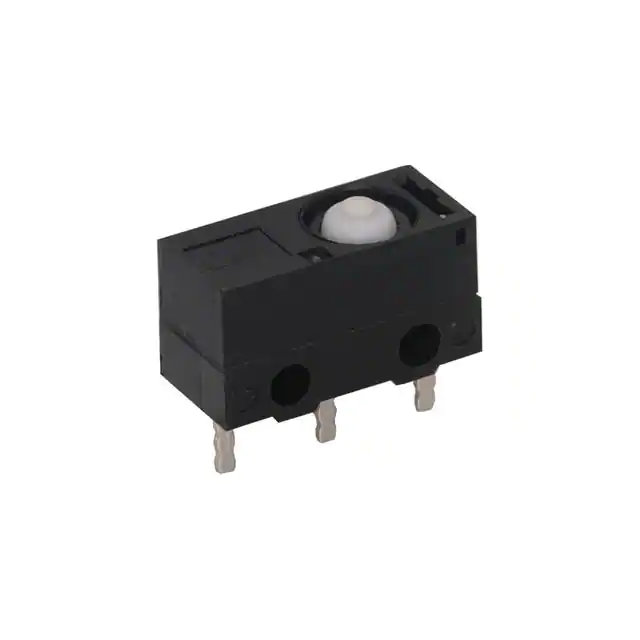

ZMTG03CJP00PCESWITCH SNAP ACTION SPDT 3A 125V C&K |
200 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 170gf | 35gf | 0.232" (5.9mm) | 0.020" (0.5mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|

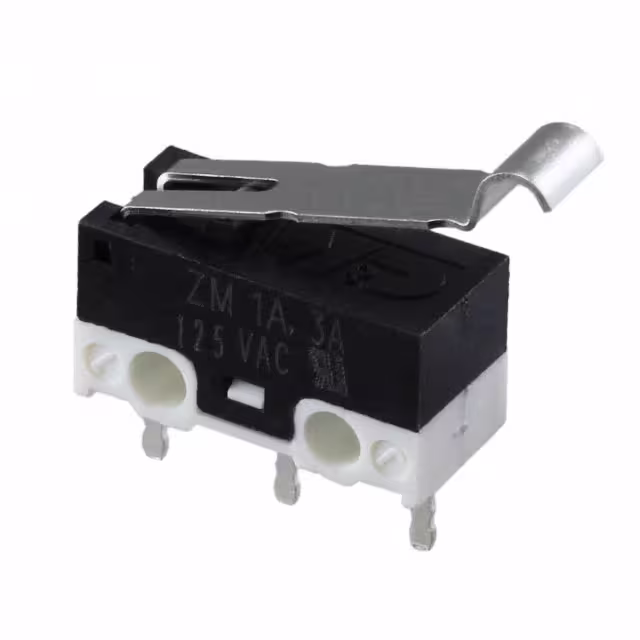

ZMCJF7T13TSWITCH SNAP ACTION SPDT 3A 125V C&K |
293 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 40gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
|
LCA10150P00SCSWITCH SNAP ACTION SPDT 10A 125V C&K |
210 |
|
Datasheet |
LCA | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 25gf | 0.335" (8.5mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 125°C |
|

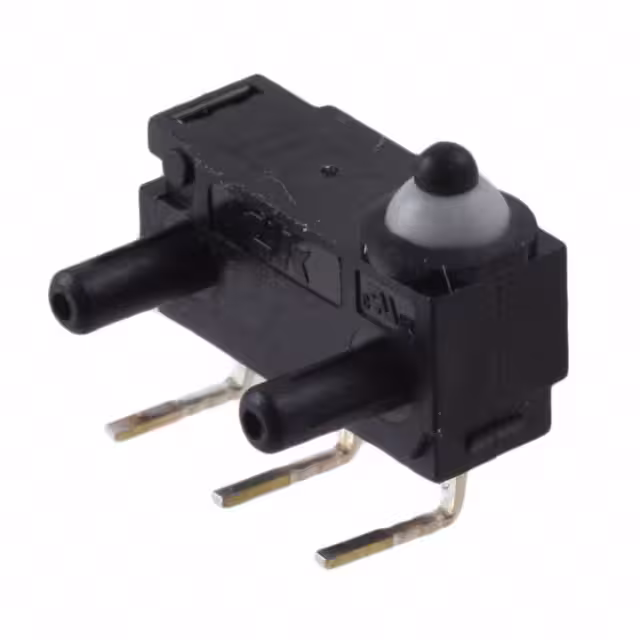

ZMSH03130P00LLCSWITCH SNAP ACTION SPDT 3A 125V C&K |
233 |
|
Datasheet |
ZMS | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP65 - Dust Tight, Water Resistant | Support Posts | 130gf | 13gf | 0.415" (10.55mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
|
ZMT05ACJS06JCE20SWITCH SNAP ACTION SPDT 5A 125V C&K |
232 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 24 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 65gf | 12gf | 0.335" (8.5mm) | 0.071" (1.8mm) | - | 0.010" (0.25mm) | -40°C ~ 85°C |
|

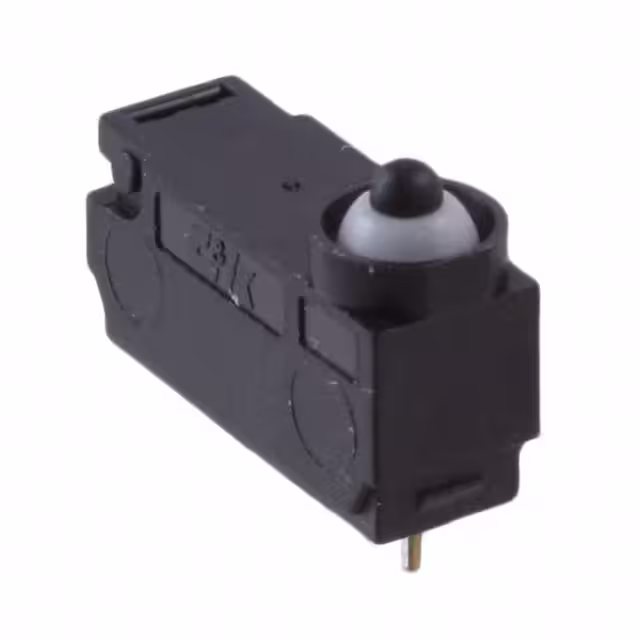

ZMSH03130P00SSCSWITCH SNAP ACTION SPDT 3A 125V C&K |
328 |
|
Datasheet |
ZMS | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 130gf | 13gf | 0.415" (10.55mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|

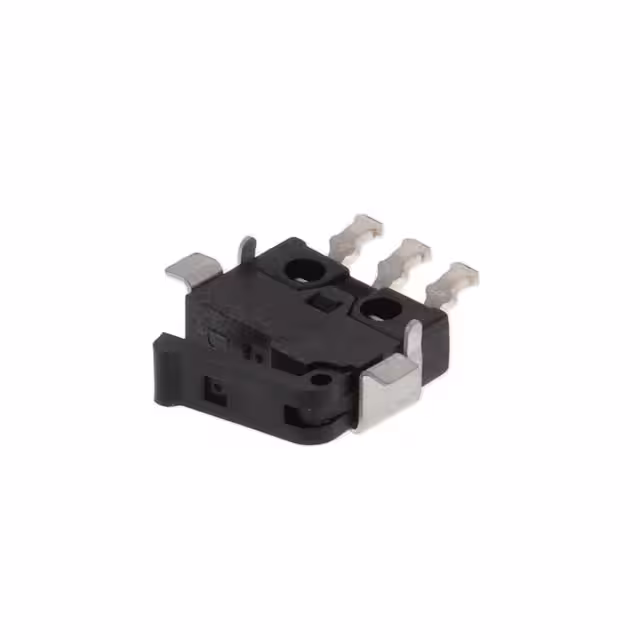

MDS6500AL02CLSNAP SWITCH 300MA AT 30VDC 50GF C&K |
1,192 |
|
Datasheet |
MDS | Tape & Reel (TR) | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Surface Mount, Right Angle | Gull Wing | - | - | 50gf | 3.000gf | 0.224" (5.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|

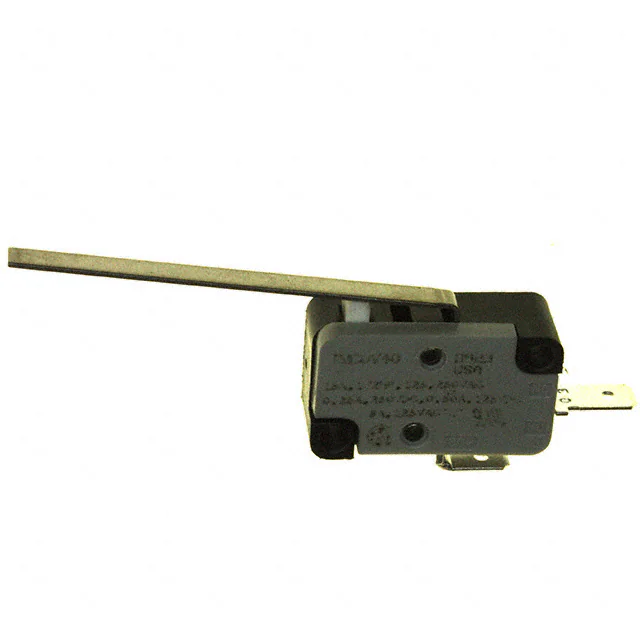

TMCJG6VT1640YSWITCH SNAP ACT SPST-NO 15A 125V C&K |
328 |
|
Datasheet |
TM | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 40gf | 10gf | 0.600" (15.2mm) | 0.312" (7.9mm) | 0.090" (2.3mm) | 0.141" (3.6mm) | -55°C ~ 150°C |
|
|
ZMT03ACJS05KCE22SWITCH SNAP ACTION SPDT 3A 125V C&K |
496 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 48gf | 7.000gf | 0.358" (9.1mm) | 0.138" (3.5mm) | - | 0.026" (0.7mm) | -40°C ~ 85°C |
