Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

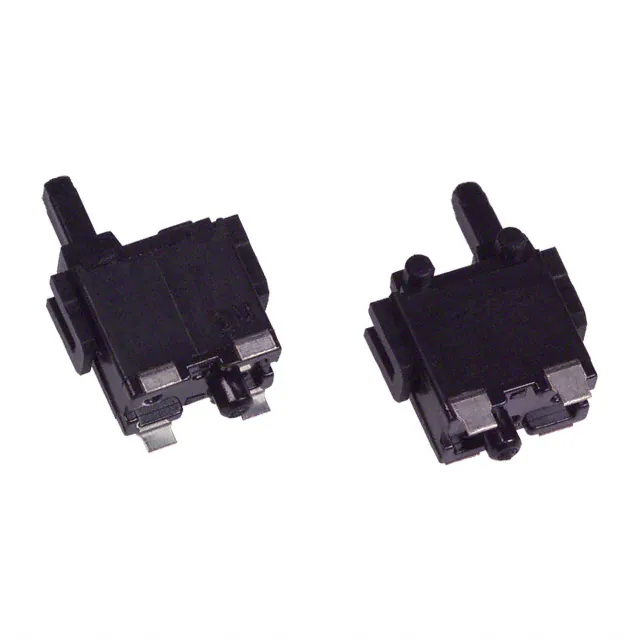

ESE-11MH6TSWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
4,422 |
|
Datasheet |
ESE11 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 35gf | - | - | - | - | - | -10°C ~ 70°C |
|
ESE-24CMV1TSWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
3,360 |
|
- |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | - | 35gf | - | 0.317" (8.05mm) | - | - | - | -40°C ~ 85°C |
|
|
ESE-18R12CSWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
2,535 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 31gf | - | 0.122" (3.1mm) | - | - | - | -10°C ~ 60°C |
|
ESE-22MH2SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
1,595 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.091" (2.3mm) | - | - | - | -10°C ~ 70°C |
|
|
ESE-18L62CSWITCH DETECTOR SPST-NC 0.01A 5V Panasonic Electronic Components |
2,971 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 31gf | - | 0.122" (3.1mm) | - | - | - | -10°C ~ 60°C |
|
|
ESE-11SV7SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
2,583 |
|
- |
ESE11 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Through Hole | PC Pin | - | - | 35gf | - | 0.313" (7.95mm) | - | - | - | -10°C ~ 70°C |
|
ESE-22MH4SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
2,807 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.091" (2.3mm) | - | - | - | -10°C ~ 70°C |
|

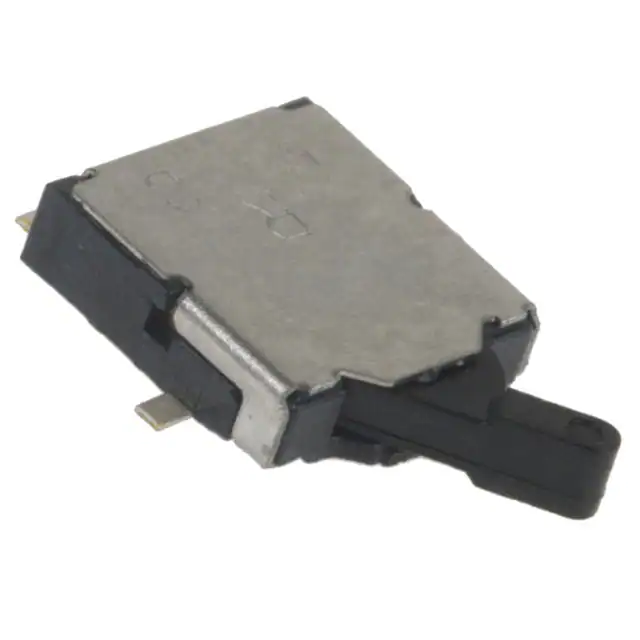

ESE-18LF02SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
2,439 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
ESE-2161ATSWITCH DETECTOR SPST-NC 0.01A 5V Panasonic Electronic Components |
4,567 |
|
Datasheet |
ESE21 | Tape & Reel (TR) | Obsolete | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | SMD (SMT) Tab | - | - | 30gf | - | 0.138" (3.5mm) | - | - | - | -10°C ~ 60°C |
|
|

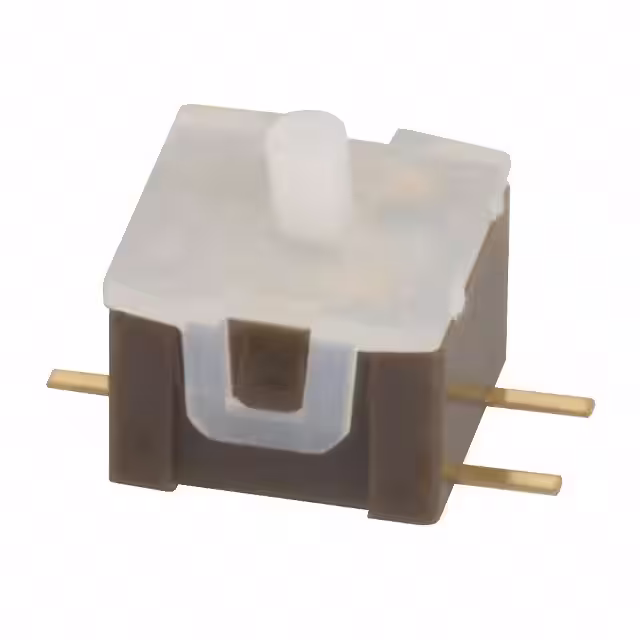

ESE-2161BTSWITCH DETECTOR SPST-NC 0.01A 5V Panasonic Electronic Components |
3,197 |
|
Datasheet |
ESE21 | Tape & Reel (TR) | Obsolete | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.130" (3.3mm) | - | - | - | -10°C ~ 60°C |
