Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESE-24CMV6TSWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
2,874 |
|
- |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -10°C ~ 70°C |
|
|
ESE-24CMV9TSWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
1,087 |
|
- |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | - | 35gf | - | 0.317" (8.05mm) | - | - | - | -40°C ~ 85°C |
|
|
ESE-18R12DSWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
3,815 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 31gf | - | 0.122" (3.1mm) | - | - | - | -10°C ~ 60°C |
|
ESE-18RJ02SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
2,812 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

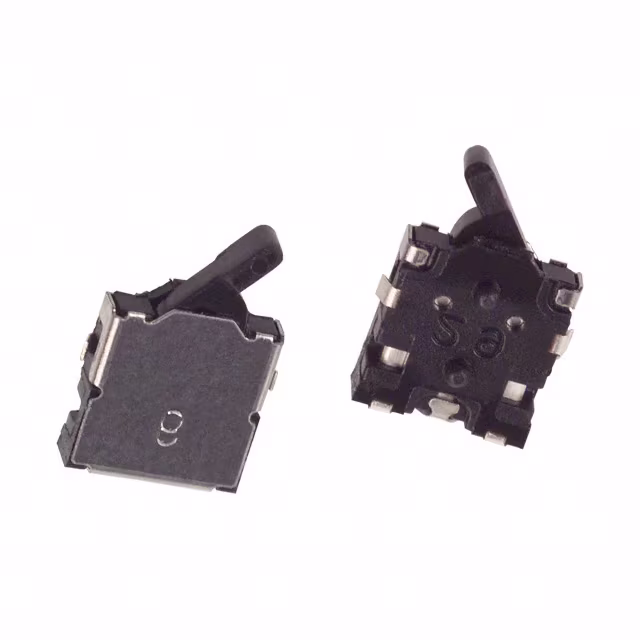

ESE-18LJ02SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
1,619 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

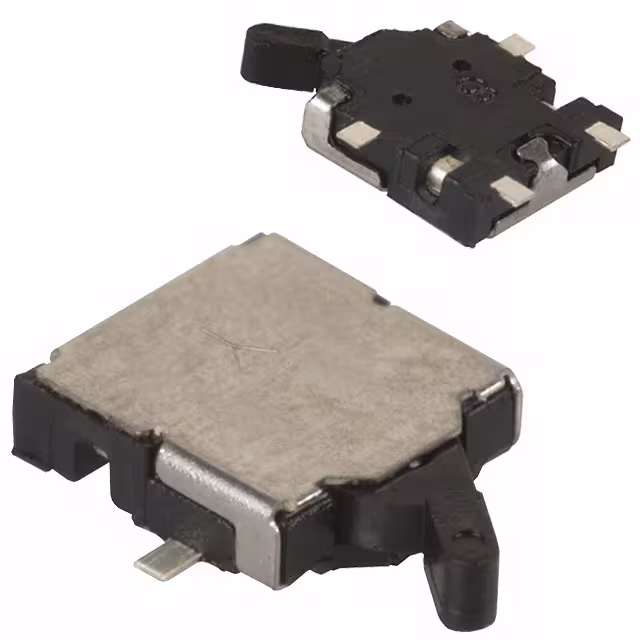

ESE-18LF01SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
2,657 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

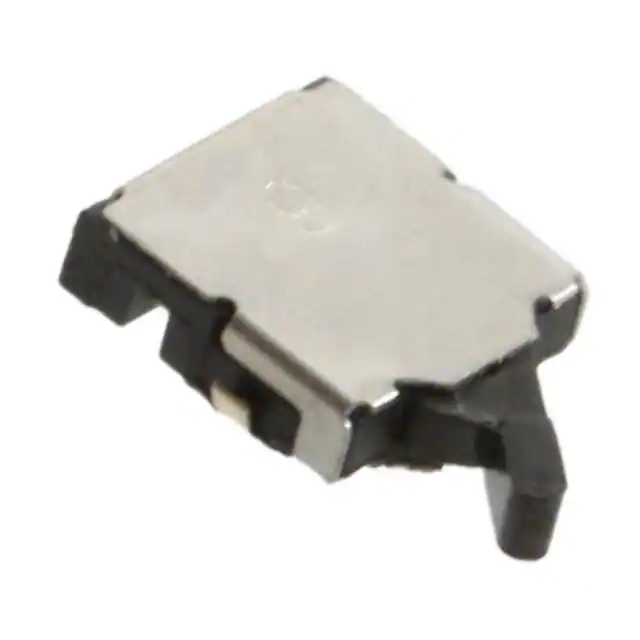

ESE-18RJ01SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
3,430 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

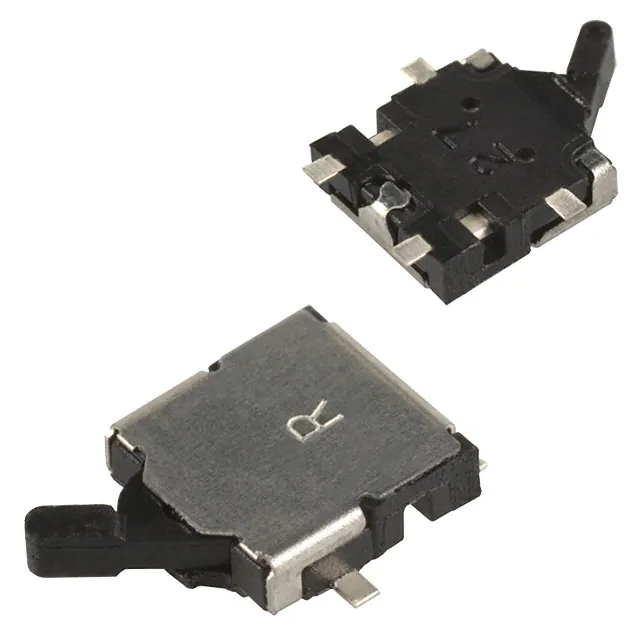

ESE-18RF01SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
4,178 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
ESE-18RF02SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
1,602 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
|
ESE-18L62DSWITCH DETECTOR SPST-NC 0.1A 5V Panasonic Electronic Components |
2,565 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 100mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 31gf | - | - | - | - | - | -10°C ~ 60°C |
