Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESE-22MH57SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
2,452 |
|
Datasheet |
ESE22 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | Solder Lug | - | - | 28gf | - | 0.055" (1.4mm) | - | - | - | -10°C ~ 70°C |
|
ESE-13V05DSWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
1,928 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-11MH4TSWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
4,931 |
|
Datasheet |
ESE11 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -10°C ~ 70°C |
|

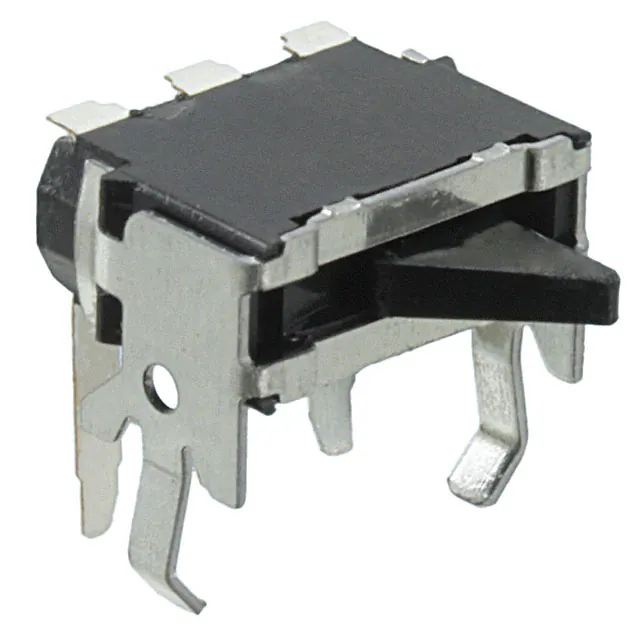

ESE-24CSH6SWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
1,405 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.179" (4.55mm) | - | - | - | -40°C ~ 85°C |
|

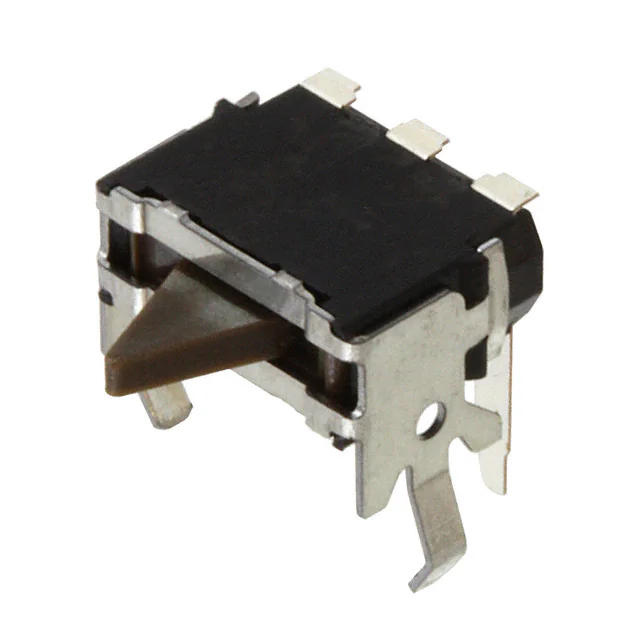

ESE-24CSH1SWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
1,575 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.179" (4.55mm) | - | - | - | -40°C ~ 85°C |
|

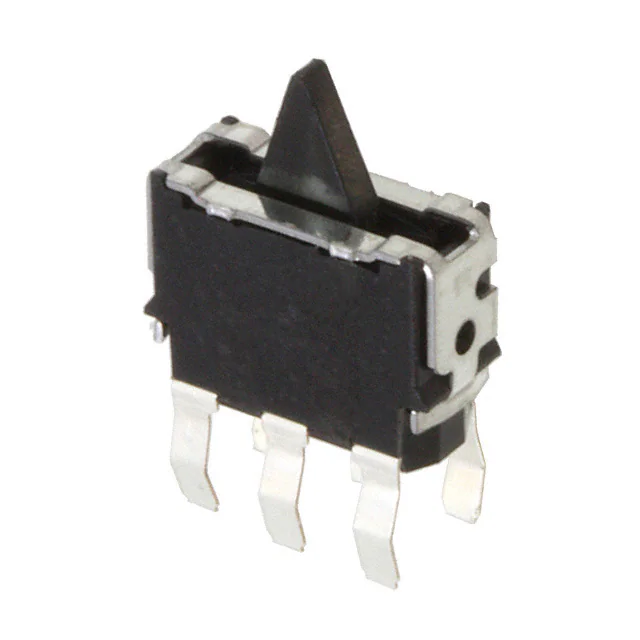

ESE-24SV6SWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
2,658 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 35gf | - | 0.317" (8.05mm) | - | - | - | -10°C ~ 70°C |
|

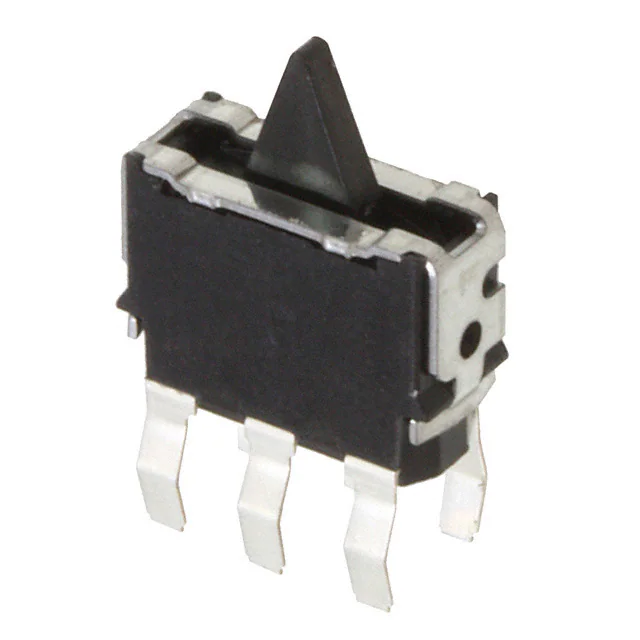

ESE-24CSV6SWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
3,569 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 35gf | - | 0.317" (8.05mm) | - | - | - | -40°C ~ 85°C |
|

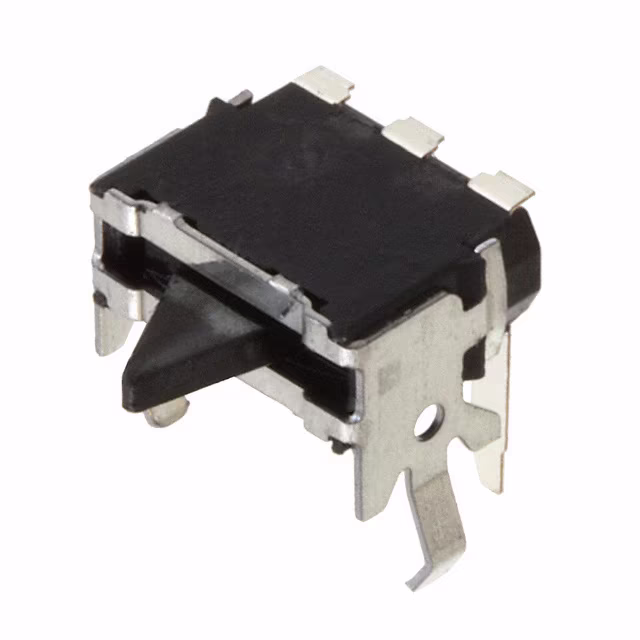

ESE-24SH6SWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
4,869 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.179" (4.55mm) | - | - | - | -10°C ~ 70°C |
|

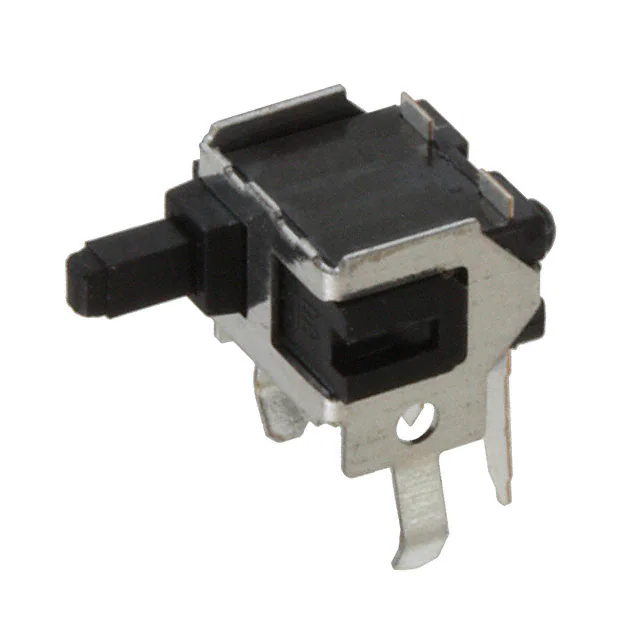

ESE-11SH6SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
4,637 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.183" (4.65mm) | - | - | - | -10°C ~ 70°C |
|
ESE-24CMH6TSWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
3,582 |
|
Datasheet |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -40°C ~ 85°C |
