Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

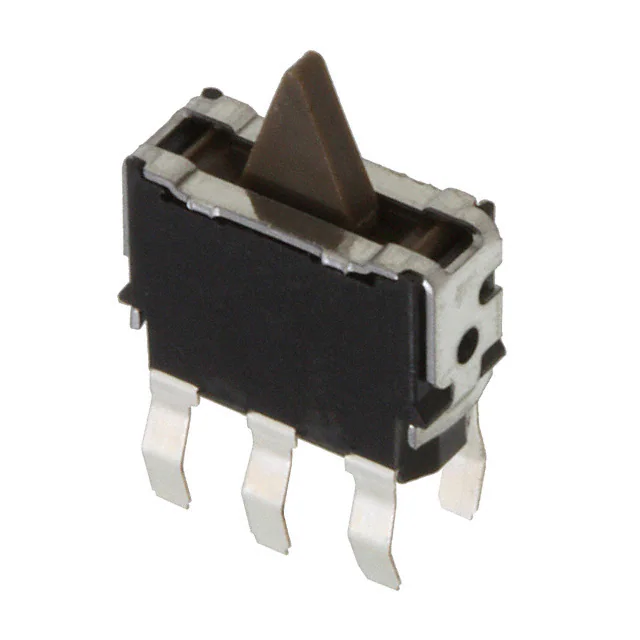

ESE-24CSV3SWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
2,999 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 35gf | - | 0.317" (8.05mm) | - | - | - | -40°C ~ 85°C |
|
ESE-23F005SWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
2,245 |
|
Datasheet |
ESE23 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.087" (2.2mm) | - | - | - | -10°C ~ 60°C |
|
ESE-22MH21SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
1,823 |
|
Datasheet |
ESE22 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | - | - | 0.091" (2.3mm) | - | - | - | -10°C ~ 70°C |
|
ESE-2131BTSWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
4,581 |
|
Datasheet |
ESE21 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.177" (4.5mm) | - | - | - | -10°C ~ 60°C |
|
|
ESE-2121BTSWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
4,077 |
|
Datasheet |
ESE21 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.130" (3.3mm) | - | - | - | -10°C ~ 60°C |
|

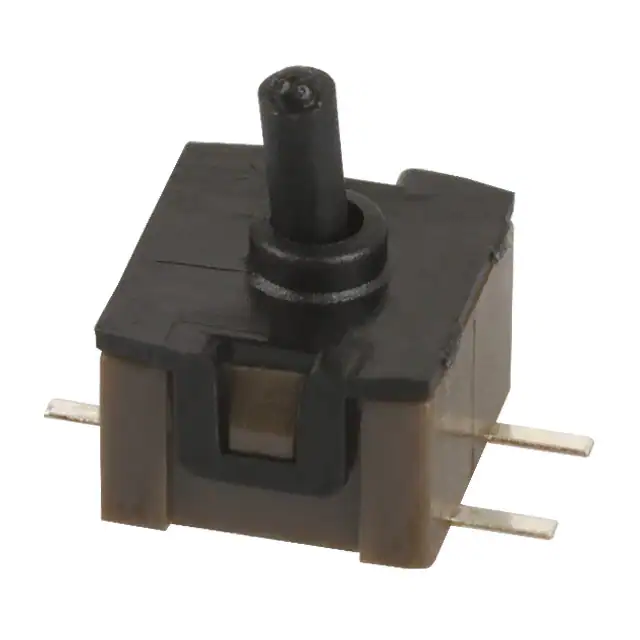

ESE-2131ATSWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
1,641 |
|
Datasheet |
ESE21 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | SMD (SMT) Tab | - | - | 30gf | - | 0.177" (4.5mm) | - | - | - | -10°C ~ 60°C |
|
ESE-22MH51SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
2,973 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 70°C |
|
|
ESE-22MH27SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
2,805 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.110" (2.8mm) | - | - | - | -10°C ~ 70°C |
|
|
ESE-22MH58SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
2,189 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | Solder Lug | - | - | 30gf | - | 0.083" (2.1mm) | - | - | - | -10°C ~ 70°C |
|
|
ESE-22MH53SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
1,532 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.083" (2.1mm) | - | - | - | -10°C ~ 70°C |
