Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESE-18L13ASWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
4,979 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.130" (3.3mm) | - | - | - | -10°C ~ 60°C |
|
ESE-18R63DSWITCH DETECTOR SPST-NC 0.01A 5V Panasonic Electronic Components |
4,860 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.130" (3.3mm) | - | - | - | -10°C ~ 60°C |
|
ESE-18L61CSWITCH DETECTOR SPST-NC 0.01A 5V Panasonic Electronic Components |
6,327 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
ESE-18R61ASWITCH DETECTOR SPST-NC 0.01A 5V Panasonic Electronic Components |
4,289 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
|
ESE-18R61CSWITCH DETECTOR SPST-NC 0.01A 5V Panasonic Electronic Components |
4,207 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
ESE-18LJ01SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
2,488 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
|
ESE-18L61ASWITCH DETECTOR SPST-NC 0.01A 5V Panasonic Electronic Components |
1,748 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
ESE-11MV1TSWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
242 |
|
Datasheet |
ESE11 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 35gf | - | 0.305" (7.75mm) | - | - | - | -10°C ~ 70°C |
|

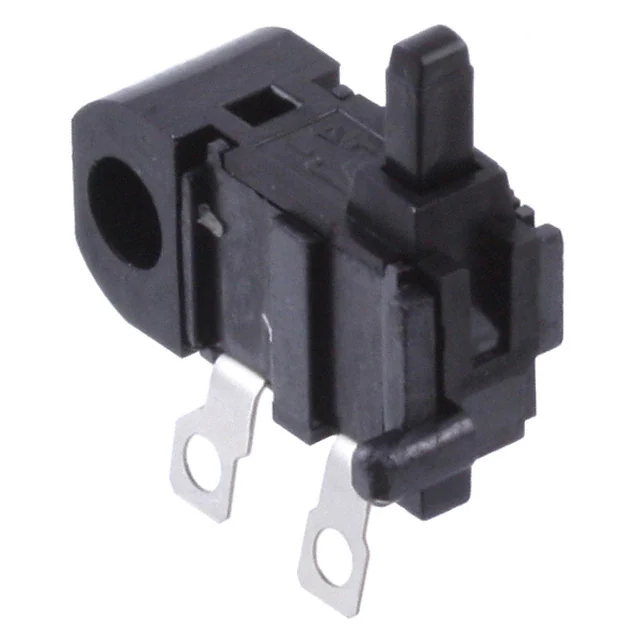

ESE-11HS1SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
421 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Chassis Mount | Solder Lug | - | - | 35gf | - | 0.313" (7.95mm) | - | - | - | -10°C ~ 70°C |
|

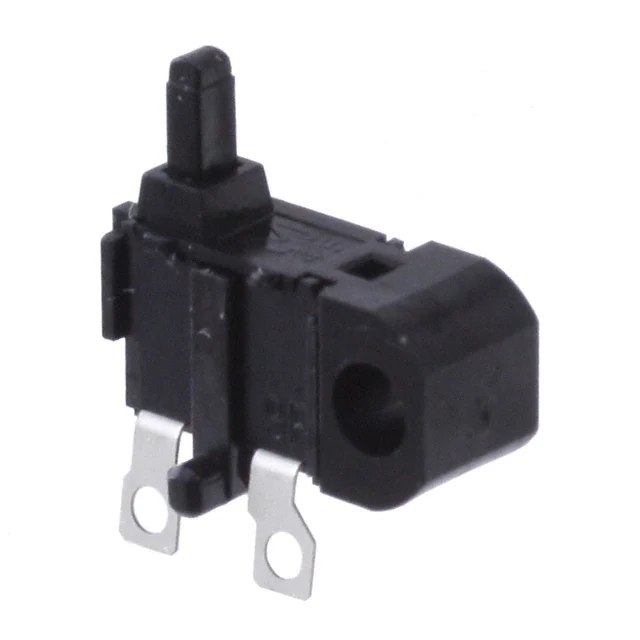

ESE-11HS2SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
269 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Chassis Mount | Solder Lug | - | - | 35gf | - | 0.313" (7.95mm) | - | - | - | -10°C ~ 70°C |
