Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

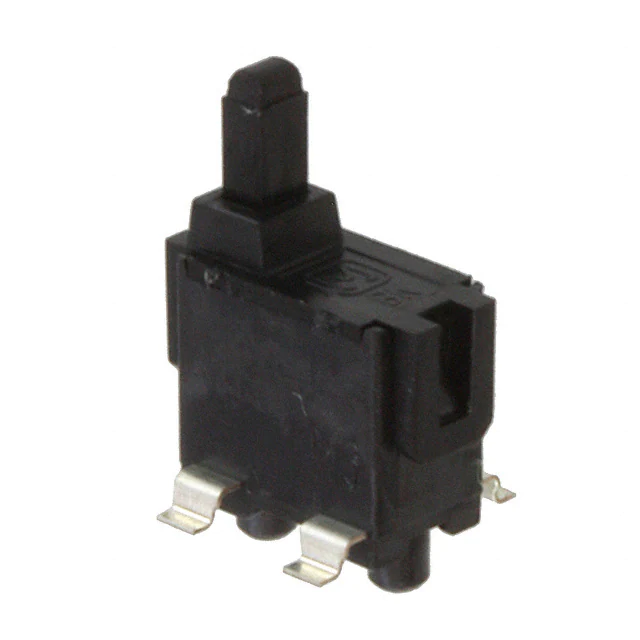

ESE-11MV9TSWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
667 |
|
Datasheet |
ESE11 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 35gf | - | 0.305" (7.75mm) | - | - | - | -10°C ~ 70°C |
|

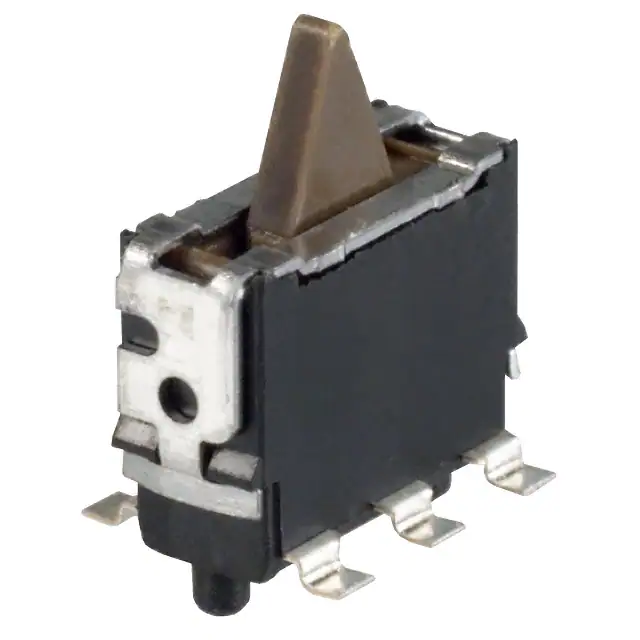

ESE-24MV1SWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
859 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | Board Guide | 35gf | - | 0.317" (8.05mm) | - | - | - | -10°C ~ 70°C |
|
|
ESE-11MV9SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
920 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 35gf | - | 0.305" (7.75mm) | - | - | - | -10°C ~ 70°C |
|
ESE-24MH6TSWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
831 |
|
Datasheet |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -10°C ~ 70°C |
|

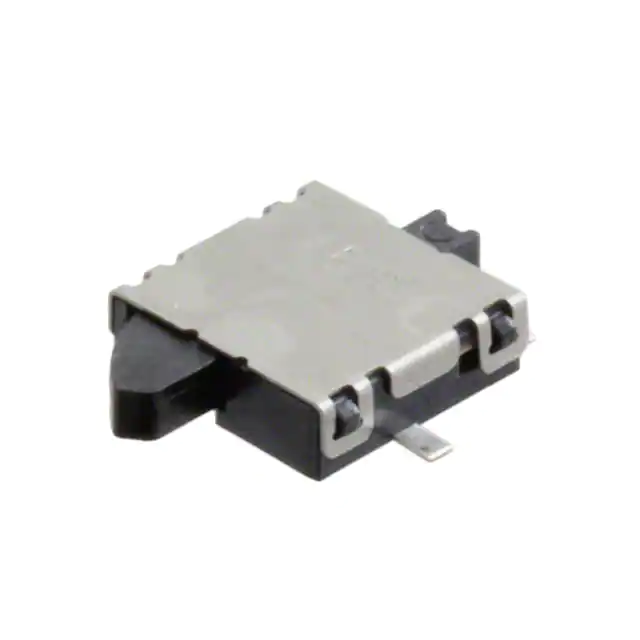

ESE-31R15TSWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
903 |
|
Datasheet |
ESE31 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | 20 V | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 40gf | - | 0.091" (2.3mm) | - | - | - | -10°C ~ 70°C |
|
|
ESE-24CMH1TSWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
2,648 |
|
Datasheet |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -40°C ~ 85°C |
|
|
ESE-24MV6TSWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components |
490 |
|
Datasheet |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | Board Guide | 35gf | - | 0.317" (8.05mm) | - | - | - | -10°C ~ 70°C |
|

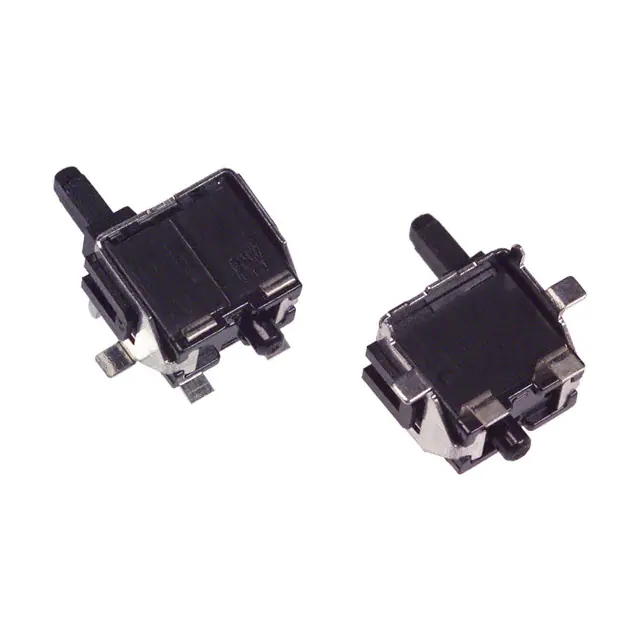

ESE-11MH5TSWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
225 |
|
Datasheet |
ESE11 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 35gf | - | - | - | - | - | -10°C ~ 70°C |
|
ESE-13H01ASWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
4,223 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-11MV1SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components |
4,320 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 35gf | - | 0.305" (7.75mm) | - | - | - | -10°C ~ 70°C |
