Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C2268FNLPULSE XFMR 1:1 7.5UH Pulse Electronics |
3,376 |
|
Datasheet |
- | Tube | Obsolete | - | 7.5µH | - | 1:1 | Surface Mount | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
PE-68678TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics |
3,449 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|

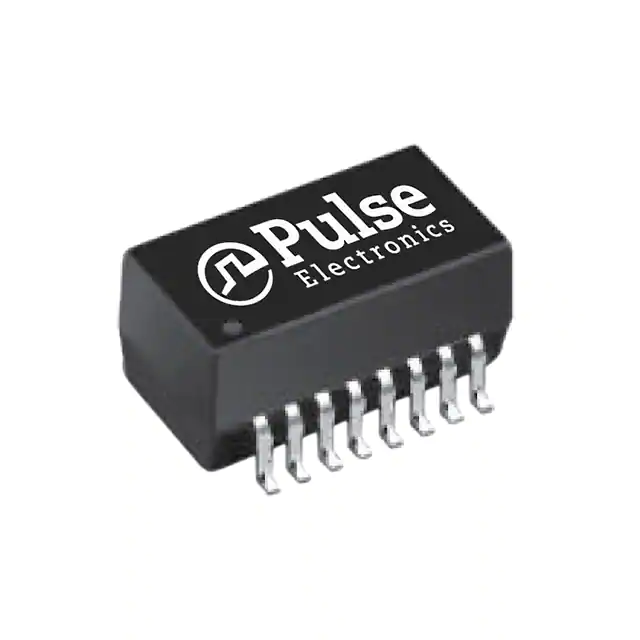

PE-65870TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics |
2,972 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Dual) | 1.2mH | - | 1CT:1.15CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
T1137TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics |
3,512 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
T1144TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics |
3,644 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Dual) | 1mH, 1mH | - | 1CT:1CT, 1CT:2.4CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | - | - | - |
|

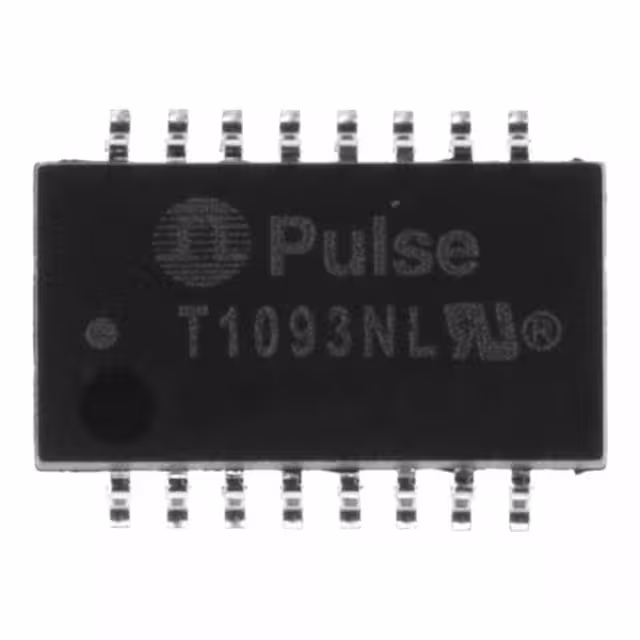

T1093TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics |
2,684 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1.15CT, 1CT:1.15CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

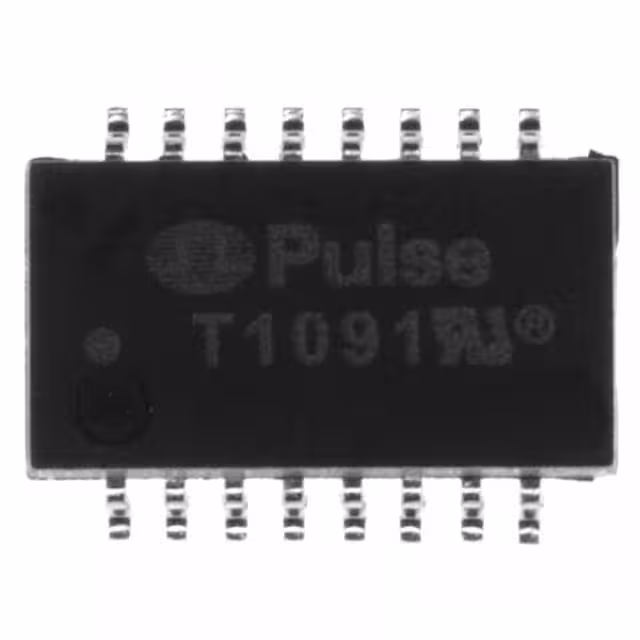

T1091TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics |
1,491 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT, 1:1.36CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

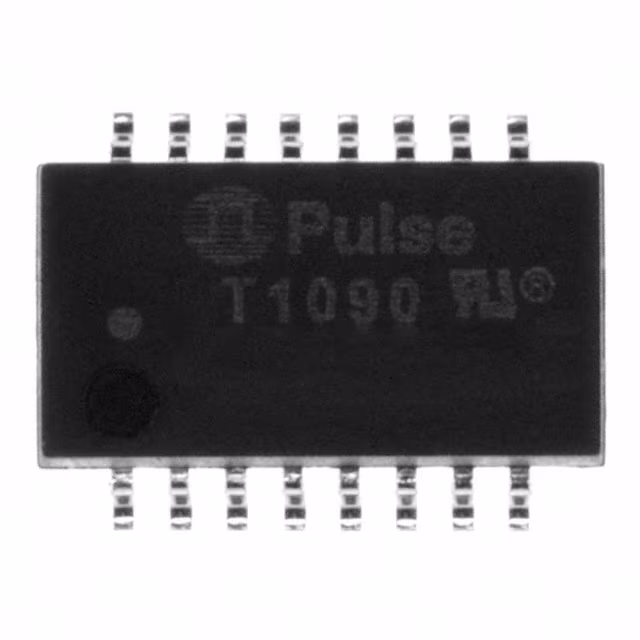

T1090TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics |
2,403 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
TX1287TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics |
2,541 |
|
Datasheet |
- | Bulk | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
PE-65967TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics |
4,498 |
|
Datasheet |
- | Bulk | Obsolete | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
