Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX1148MODULE TRANSFMR SNGL LAN 16P SMD Pulse Electronics |
3,419 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
HX1188MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics |
1,517 |
|
Datasheet |
- | Bulk | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
H1036LMODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics |
4,329 |
|
Datasheet |
- | Tray | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
H1053MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics |
4,093 |
|
Datasheet |
- | Bulk | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
H1060MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics |
2,478 |
|
Datasheet |
- | Bulk | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
H1062MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics |
3,113 |
|
Datasheet |
- | Tray | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H1164MODULE XFRMR ETHERNET LAN 40SOIC Pulse Electronics |
3,132 |
|
Datasheet |
- | Tray | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
HX1234MODULE XFRMR ETHERNET LAN 40SOIC Pulse Electronics |
1,321 |
|
Datasheet |
- | Bulk | Active | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.290" (7.36mm) | -40°C ~ 85°C | - | - |
|

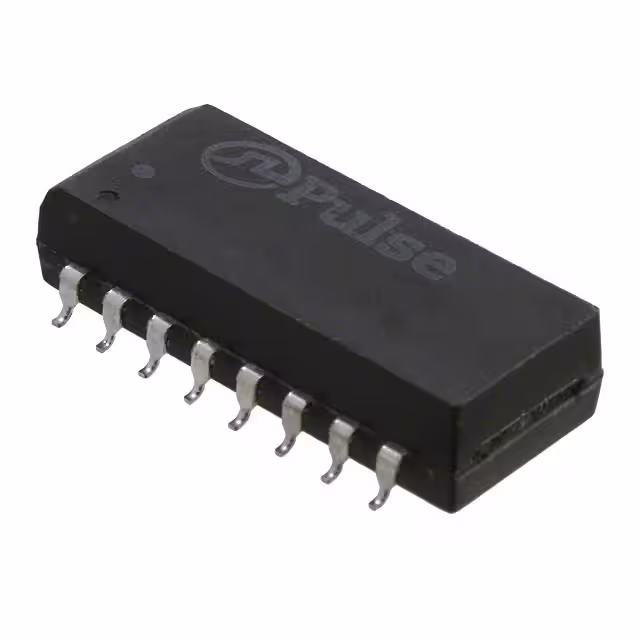

PE-68026MODULE FILTER SNGL LAN 16PIN SMD Pulse Electronics |
4,208 |
|
- |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
FL1012MODULE FILTER SNGL LAN 16PIN TH Pulse Electronics |
4,079 |
|
- |
- | Bulk | Obsolete | - | - | - | 1CT:1CT | Through Hole | 0.995" L x 0.395" W (25.28mmx 10.03mm) | 0.338" (8.59mm) | - | - | - |
