Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-65968TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics |
1,865 |
|
Datasheet |
- | Bulk | Obsolete | T3/E3 (Single) | 19µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|
|
T3001TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics |
2,832 |
|
Datasheet |
- | Bulk | Obsolete | T3/E3 (Single) | 100µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
T3002TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics |
3,567 |
|
Datasheet |
- | Bulk | Obsolete | T3/E3 (Single) | 40µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
H5004MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics |
4,339 |
|
Datasheet |
- | Tray | Obsolete | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
|
H5007MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics |
1,995 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|
HX5020MODULE DL GIGABIT ETHER LAN 48P Pulse Electronics |
3,959 |
|
Datasheet |
- | Bulk | Obsolete | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | -40°C ~ 85°C | - | - |
|
H0009MODULE PC CARD SNGL LAN 16PCMCIA Pulse Electronics |
4,808 |
|
Datasheet |
- | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|

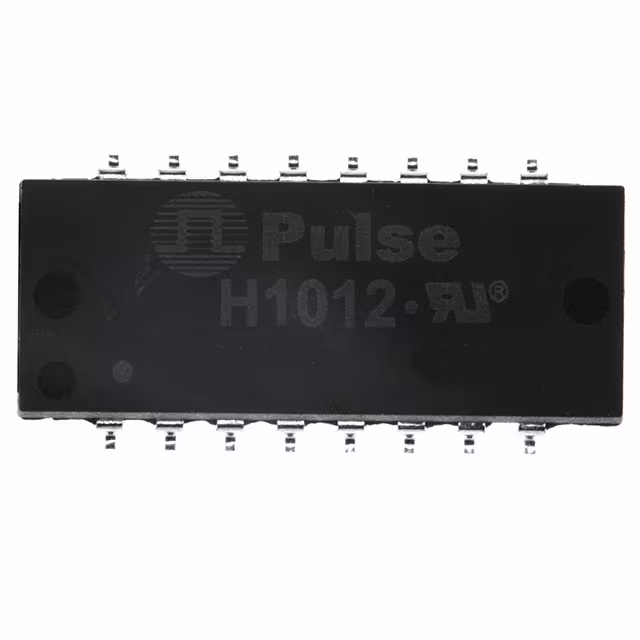

H1012MODULE TRANSFMR SNGL LAN 16P SMD Pulse Electronics |
3,166 |
|
Datasheet |
- | Bulk | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
H1102MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics |
4,405 |
|
Datasheet |
- | Bulk | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
H1112MODULE TRANSFMR SNGL LAN 12P SMD Pulse Electronics |
3,527 |
|
Datasheet |
- | Bulk | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.202" (5.13mm) | 0°C ~ 70°C | - | - |
