Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1343NLTXFRMR OCTAL 1:1.266 1.5MH SMD Pulse Electronics |
1,441 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.5mH | - | 1:1.266 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
B2032NLXFRMR FOR ADI ADSL CHIPSET SMD Pulse Electronics |
3,514 |
|
Datasheet |
- | Tray | Obsolete | ADSL | 5mH | - | 1:1 | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
|
TX1470NLXFRMR OCTAL 1:1.41 1.2MH SMD Pulse Electronics |
4,246 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Octal) | 1.2mH | - | 1:1.41 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
B2032NLTXFRMR FOR ADI ADSL CHIPSET SMD Pulse Electronics |
1,690 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | ADSL | 5mH | - | 1:1 | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
|
TX1470NLTXFRMR OCTAL 1:1.41 1.2MH SMD Pulse Electronics |
2,714 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:1.41 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
T1343NLXFRMR OCTAL 1:1.266 1.5MH SMD Pulse Electronics |
3,500 |
|
Datasheet |
- | Tube | Active | T1/E1 (Octal) | 1.5mH | - | 1:1.266 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TX1263NLXFRMR 4PORT 1:2 1.2MH SMD Pulse Electronics |
4,357 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.275" (6.99mm) | -40°C ~ 85°C | - | - |
|

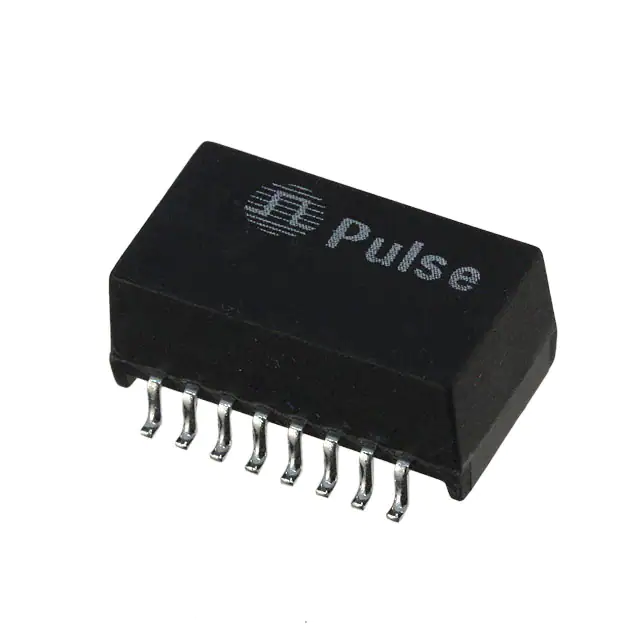

H1183NLXFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics |
2,286 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
H1278NLXFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics |
1,361 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.202" (5.13mm) | 0°C ~ 70°C | - | - |
|
|
T1215NLXFRMR 1CT:1.41CT/1CT:1.41CT SMD Pulse Electronics |
2,948 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:1.41CT, 1CT:1.41CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
