Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1187NLXFRMR MAGNT MOD 1PORT POE 10/100 Pulse Electronics |
4,581 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
PA1132NLTXFRMR 12V 3W 521UH POE EP7 SMD Pulse Electronics |
2,525 |
|
Datasheet |
EP7 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 521µH | - | 1:0.286:0.204 | Surface Mount | 0.420" L x 0.525" W (10.67mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|
B8849NLPULSE XFMR ADSL ETSI-A Pulse Electronics |
1,882 |
|
Datasheet |
SmartER Splitter™ | Tray | Active | ADSL, VDSL | - | - | - | Through Hole | 0.512" L x 0.681" W (13.00mm x 17.30mm) | 0.453" (11.50mm) | - | - | - |
|
|

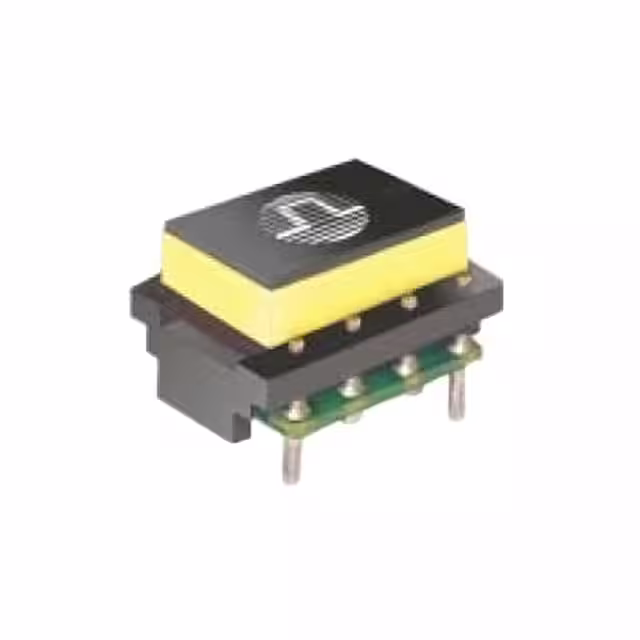

B8546ENLPULSE XFMR BT-SIN-346LP Pulse Electronics |
4,837 |
|
Datasheet |
SMART | Tray | Obsolete | ADSL | - | - | - | Through Hole | 2.004" L x 0.634" W (50.90mm x 16.10mm) | 0.620" (15.74mm) | 0°C ~ 70°C | - | - |
|

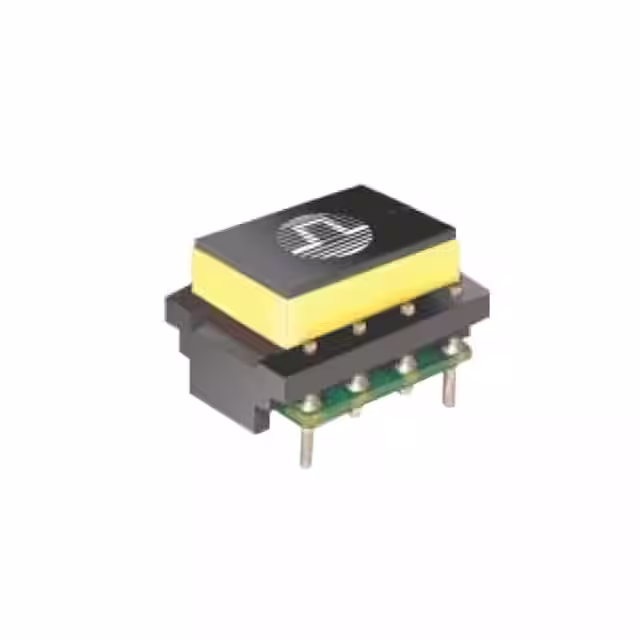

B8846NLPULSE XFMR ADSL2 ETSI-B Pulse Electronics |
1,540 |
|
Datasheet |
SmartER Splitter™ | Tray | Active | ADSL, VDSL | - | - | - | Through Hole | 0.512" L x 0.681" W (13.00mm x 17.30mm) | 0.453" (11.50mm) | - | - | - |
|

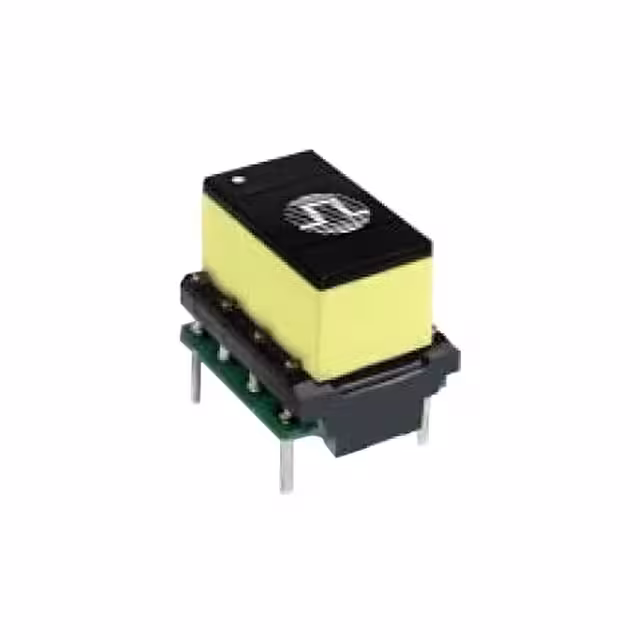

B8802NLPULSE XFMR ADSL/VDSL2 Pulse Electronics |
4,190 |
|
Datasheet |
SmartER Splitter™ | Tray | Active | ADSL, VDSL | - | - | - | Through Hole | 0.681" L x 0.512" W (17.30mm x 13.00mm) | 0.551" (14.00mm) | - | - | - |
|
|
78Z034CNLMODULE FILTER SINGLE LAN 16-DIL Pulse Electronics |
3,328 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Through Hole | 0.800" L x 0.400" W (20.32mm x 10.16mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
E2007QNLMODULE 10BASE-T INTRFACE 1:1 SMD Pulse Electronics |
3,071 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.385" W (25.40mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
E2003QNLMODULE 10BASE-T INTRFACE 1:1 SMD Pulse Electronics |
4,373 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.385" W (25.40mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

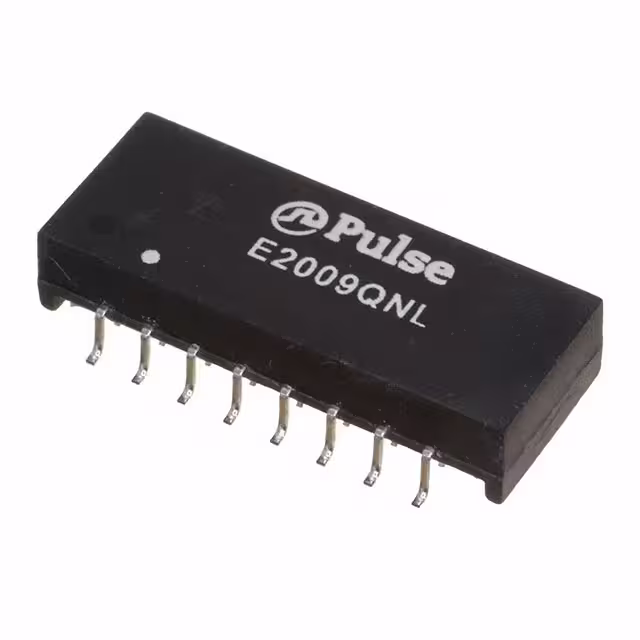

E2009QNLMODULE 10BASE-T INTRFACE 1:1.414 Pulse Electronics |
3,651 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1.414 | Surface Mount | 1.000" L x 0.385" W (25.40mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
