Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E2001QNLMODULE 10BASE-T INTRFACE 1:1 SMD Pulse Electronics |
4,138 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.385" W (25.40mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
EX2001QNLMODULE 10BASE-T INTRFACE 1:1 SMD Pulse Electronics |
4,737 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.930" L x 0.390" W (23.62mm x 9.91mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|

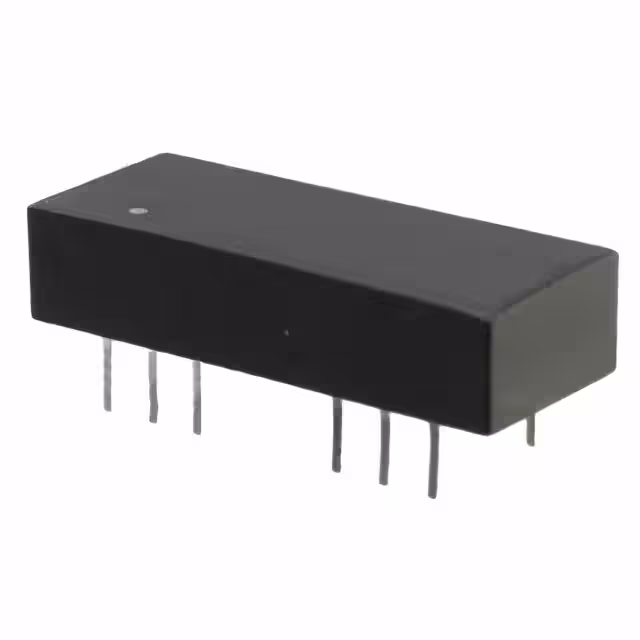

78Z1122B-01NLMODULE FILTER SINGLE LAN 16-DIL Pulse Electronics |
2,272 |
|
- |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Through Hole | 1.000" L x 0.400" W (25.40mm x 10.16mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PE-68515LXFRMR MODULE 1PORT 1:1 10/100B-T Pulse Electronics |
4,151 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
|
PA3000NLPULSE XFMR 1:1 Pulse Electronics |
4,937 |
|
Datasheet |
- | Tray | Active | - | - | - | 1:1 | Through Hole | 0.878" L x 0.748" W (22.30mm x 19.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
BX4107NLTRANSFORMER LINE 1.33:1 8MH Pulse Electronics |
3,057 |
|
Datasheet |
- | Tube | Active | VDSL | 8mH | - | 1.33:1 | Surface Mount | 0.413" L x 0.276" W (10.50mm x 7.00mm) | 0.433" (11.00mm) | -40°C ~ 85°C | - | - |
|
|
E5017NLMODULE 10D 1:1 SIN SMD Pulse Electronics |
1,232 |
|
- |
- | Tube | Obsolete | - | 140µH | - | 1:1 | Surface Mount | 0.495" L x 0.280" W (12.57mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|

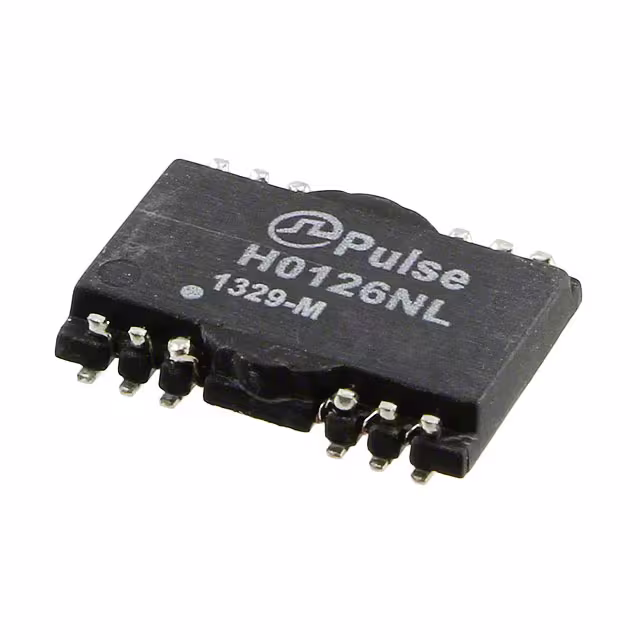

H0126NLMODULE 10/100BT PC SMD Pulse Electronics |
3,992 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | Surface Mount | 0.500" L x 0.357" W (12.70mm x 9.07mm) | 0.093" (2.36mm) | - | - | - |
|
|
PE-68041NLTTRANSFORMER 1500VRMS 112UH SMD Pulse Electronics |
3,265 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 112µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
|
H7018NLMODULE 10GBASE-T 1.5KVRMS SMD Pulse Electronics |
3,347 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
