Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-68025PULSE XFMR 1:1 Pulse Electronics |
4,856 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
PE-68027PULSE XFMR 1:1 Pulse Electronics |
3,454 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
PE-68515PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,703 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
PE-68517PULSE XFMR 1:1 Pulse Electronics |
1,153 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100 Base-T | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
|
PE-68517LPULSE XFMR 1:1 Pulse Electronics |
3,657 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100 Base-T | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
|
PE-68617PULSE XFMR 1CS:2 1.7MH Pulse Electronics |
1,827 |
|
- |
- | Tube | Active | - | 1.7mH | - | 1CS:2 | Surface Mount | 0.550" L x 0.600" W (13.97mm x 15.24mm) | 0.390" (9.91mm) | 0°C ~ 70°C | - | - |
|
|
PE-68628PULSE XFMR 1.25:1 Pulse Electronics |
1,165 |
|
Datasheet |
- | Tray | Obsolete | - | - | - | 1.25:1 | Through Hole | 0.800" L x 0.450" W (20.32mm x 11.43mm) | 1.050" (26.67mm) | -40°C ~ 85°C | - | - |
|
|
PE-68828PULSE XFMR 1CT:1CT TX 1CT:2CT RX Pulse Electronics |
3,344 |
|
Datasheet |
- | Tube | Obsolete | - | 1.2mH, 1.2mH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

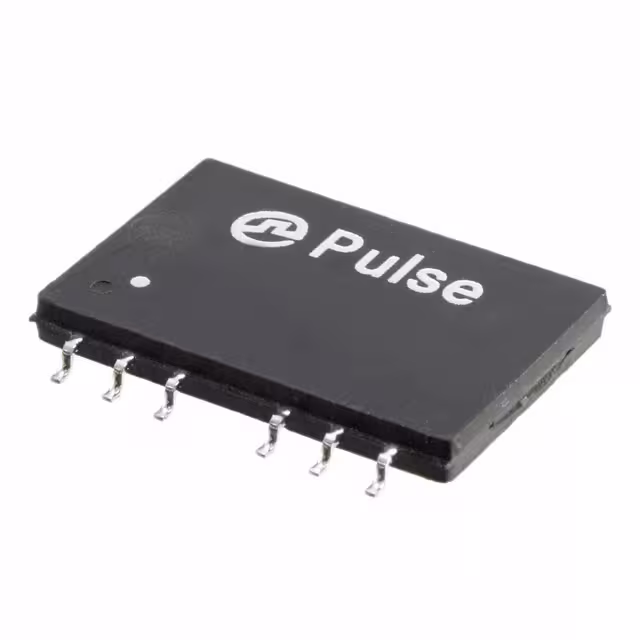

PE-69012PULSE XFMR 1:1 TX 1:1 RX Pulse Electronics |
4,225 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100 Base-T | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.094" (2.39mm) | 0°C ~ 70°C | - | - |
|
|
T1038PULSE XFMR 1CT:1CT 1CT:1.36CT Pulse Electronics |
2,096 |
|
Datasheet |
- | Tube | Active | - | 1.2mH, 1.2mH | - | 1CT:1CT Transmitter, 1CT:1.36CT Receiver | Surface Mount | 0.950" L x 0.589" W (24.13mm x 14.96mm) | 0.395" (10.03mm) | 0°C ~ 70°C | - | - |
