Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

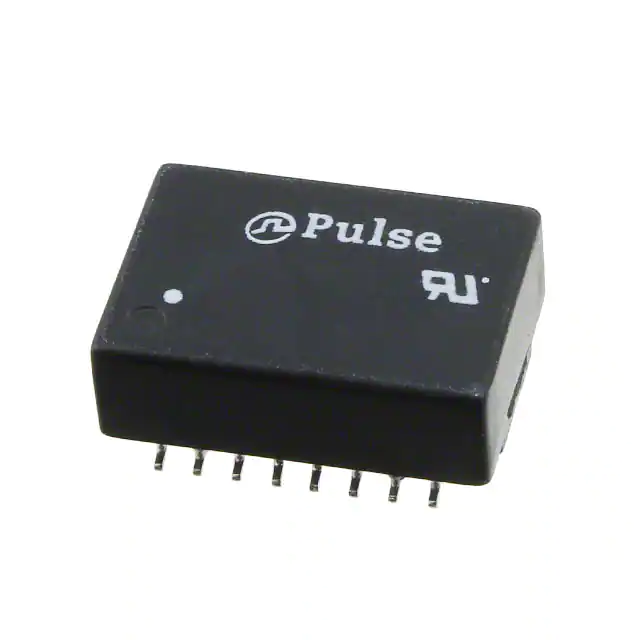

E2023FNLTXFRMR LAN ISOL 10BASET 1:2.5 SMD Pulse Electronics |
3,827 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
E2454FNLXFRMR ISOL 10BASE-T 1:2 SMD Pulse Electronics |
4,686 |
|
- |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 50µH, 200µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
E2458FNLXFRMR ISOL 10BASE-T 1:1.41 SMD Pulse Electronics |
2,949 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 160µH, 160µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
|
E2458FNLTXFRMR ISOL 10BASE-T 1:1.41 SMD Pulse Electronics |
3,689 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | 160µH, 160µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
H0013FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
4,596 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.488" L x 0.365" W (12.40mm x 9.27mm) | 0.073" (1.85mm) | 0°C ~ 70°C | - | - |
|
H2260FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,915 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
HX1259FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
3,787 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
HX1305FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,190 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.518" L x 0.703" W (13.16mm x 17.86mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|

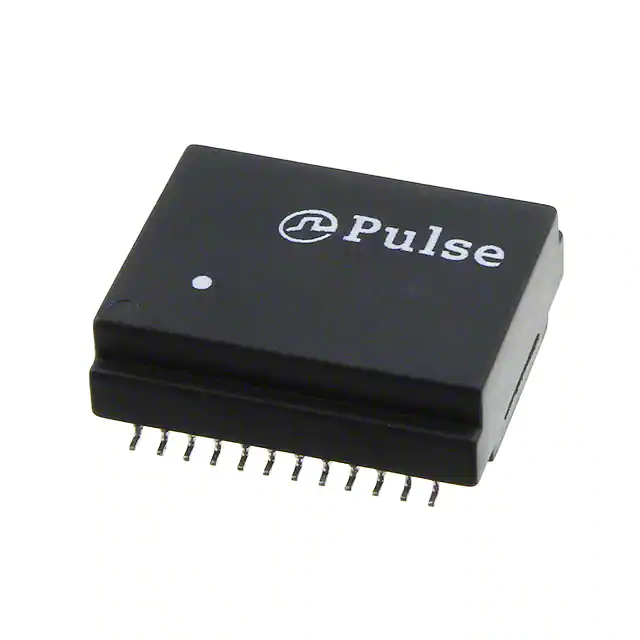

HX6096FNLPULSE XFMR 1CT:1CT TX/RX Pulse Electronics |
1,591 |
|
Datasheet |
- | Tube | Obsolete | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
ST7011FNLPULSE XFMR 1CT:1.414CT 1CT:1CT Pulse Electronics |
3,386 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | 175µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.455" L x 0.344" W (11.56mm x 8.74mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
