Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H7037NL10GBASE-T DISCRETE TERANETIC/PLX Pulse Electronics |
1,838 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | - | - | 1:1 | - | 0.698" L x 0.480" W (17.73mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|

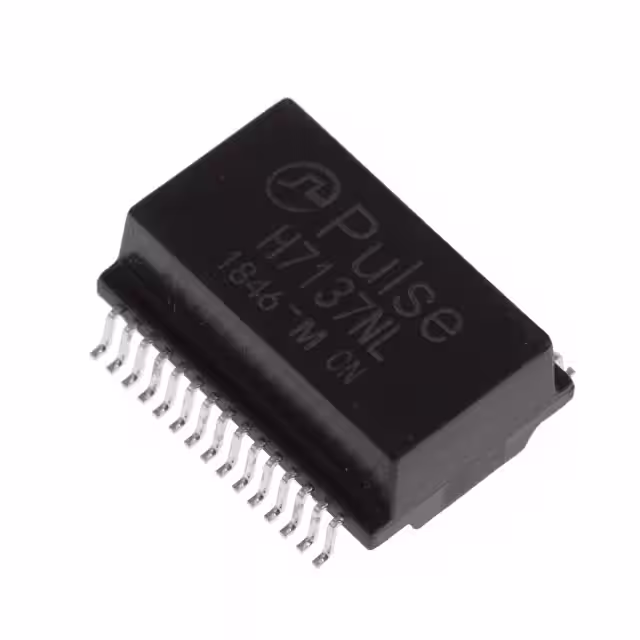

H7137NL10GBASE-T DISCRETE 5CH Pulse Electronics |
1,344 |
|
Datasheet |
- | Bulk | Obsolete | LAN 10G Base-T | - | - | 1:1 | - | 0.698" L x 0.480" W (17.73mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
HX1323NLPULSE XFMR 1:1 350UH Pulse Electronics |
4,204 |
|
Datasheet |
- | Bulk | Obsolete | - | 350µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
|
|
PE-68056NLPULSE XFMR 1:1 Pulse Electronics |
3,989 |
|
Datasheet |
- | Bulk | Obsolete | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
23Z91SMFNLXFRMR AUI ETHERNET LAN 16SOIC Pulse Electronics |
2,703 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 100µH | 2.4VµS | 1:1 | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|

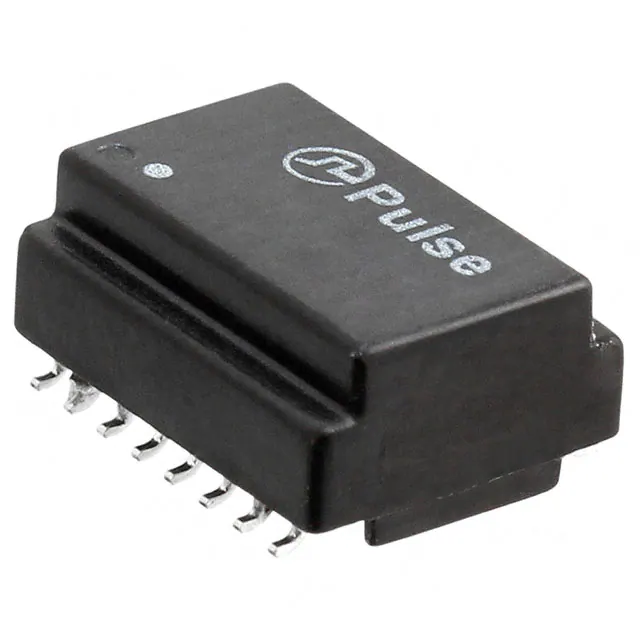

H2260FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,514 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
H5012FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,460 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
|
H5019FNLPULSE XFMR 1CT:1 TX 1CT:1 RX Pulse Electronics |
2,760 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.780" L x 0.750" W (19.81mm x 19.05mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
|
23Z356SMFNLPULSE XFMR 1CT:1.414CT 1CT:1CT Pulse Electronics |
1,419 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 68µH, 160µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.455" L x 0.344" W (11.56mm x 8.74mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
23Z91SMFNLTXFRMR AUI ETHERNET LAN 16SOIC Pulse Electronics |
1,817 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | 100µH | 2.4VµS | 1:1 | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
