Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9384.021NLXFMR GATE-DR 2CT:1CT SM NPB Pulse Electronics |
1,250 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | - | 0.299" (7.60mm) | - | - | - |
|
|
PH9384.034NLXFMR GATE-DR 3CT:4CT SM NPB Pulse Electronics |
2,719 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | - | 0.299" (7.60mm) | - | - | - |
|
|
PH9384.083NLXFMR GATE-DR 8CT:3CT SM NPB Pulse Electronics |
4,847 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | - | 0.299" (7.60mm) | - | - | - |
|
|
PH9384.089NLXFMR GATE-DR 8CT:9CT SM NPB Pulse Electronics |
3,080 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | - | 0.299" (7.60mm) | - | - | - |
|
HM1190NLMDL,SIN,100D,1:1,SMT Pulse Electronics |
3,859 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 125°C | - | - |
|
|
HM1190NLTMDL,SIN,100D,1:1,SMT Pulse Electronics |
1,055 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 125°C | - | - |
|
H7229FNLTTRANSFORMER MODULE 10GBASE-T Pulse Electronics |
2,125 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.545" L x 0.591" W (13.84mm x 15.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
H1664NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
3,367 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.480" W (28.19mm x 12.19mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

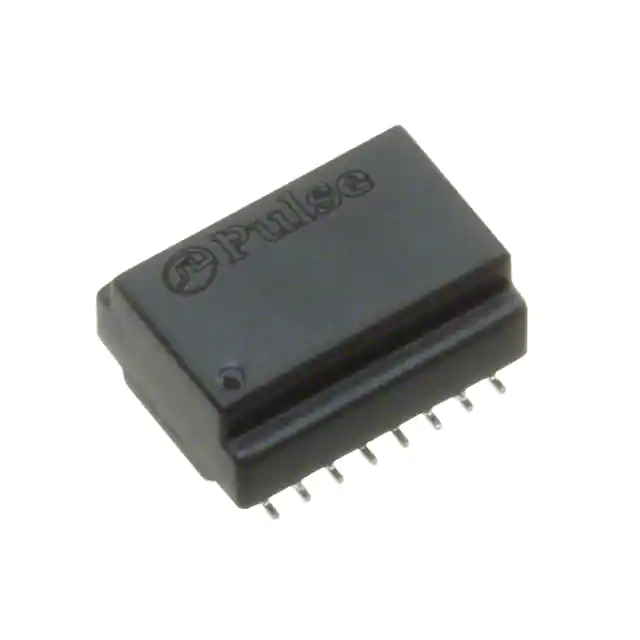

HM1237NLTMDL, DUAL, XFMR-CMC, 1:1, 3.2KV, Pulse Electronics |
1,458 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 650µH | - | 1:1 | Surface Mount | 0.455" L x 0.375" W (11.56mm x 9.53mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|
|
H0068CNLTRANSFORMER Pulse Electronics |
4,189 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
