Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

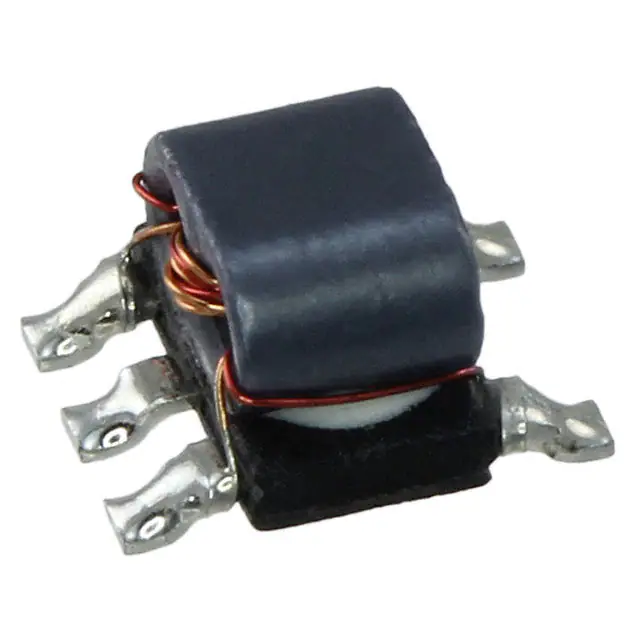

C2580NLPULSE XFMR 1:1 Pulse Electronics |
3,715 |
|
- |
- | Tray | Obsolete | - | - | - | 1:1 | Surface Mount | 0.169" L x 0.106" W (4.30mm x 2.70mm) | 0.118" (3.00mm) | 0°C ~ 70°C | - | - |
.00xNL-Series.jpg)
|
PA3855.003NLPULSE XFMR 41UH Pulse Electronics |
3,052 |
|
Datasheet |
- | Tray | Active | - | 41µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|
HM5149NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,225 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 360µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.410" W (17.78mm x 10.41mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|
HM5004EFNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,860 |
|
- |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.600" W (17.53mm x 15.24mm) | 0.225" (5.72mm) | -40°C ~ 105°C | - | - |
|

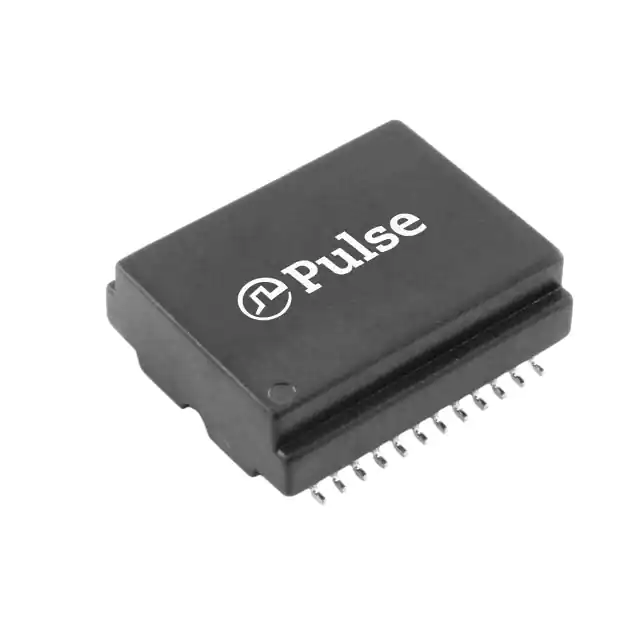

HM6098FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,624 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 105°C | - | - |
|
H1263NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
3,309 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.380" W (12.70mm x 9.65mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|

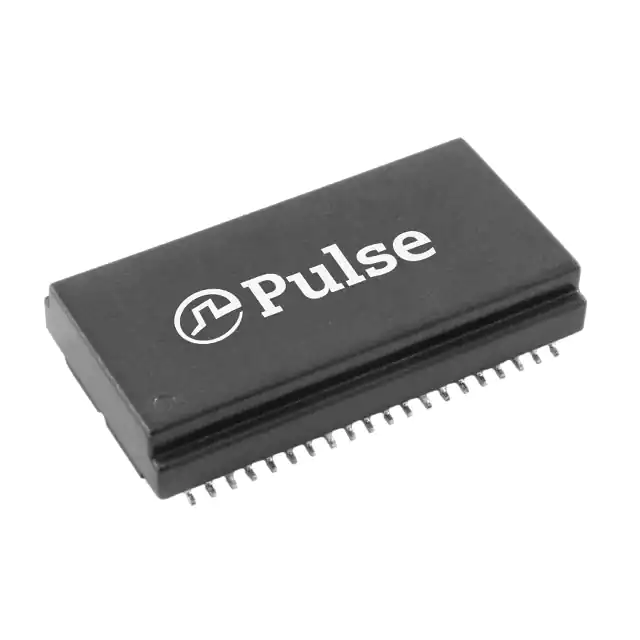

HM1234FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
4,852 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | -40°C ~ 105°C | - | - |
|
|
HM6098FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,333 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 105°C | - | - |
|
|
HX1291NLMOD TRANSFORMER SMD Pulse Electronics |
3,110 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
PH9384.011NLXFMR GATE-DR 1CT:1T SMT NPB Pulse Electronics |
3,510 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | - | 0.299" (7.60mm) | - | - | - |
