Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

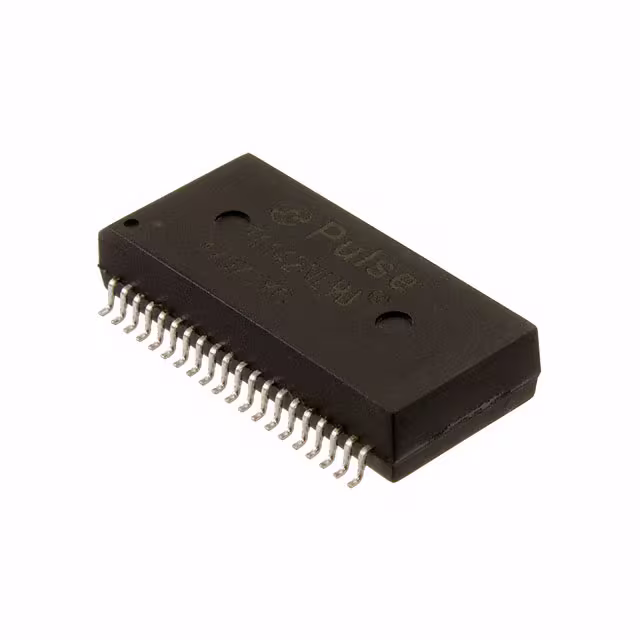

T1142NLXFRMR T1/E1/CEPT/ISDN-PRI 1:2.4 Pulse Electronics |
362 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1mH, 1mH | - | 1:2.4 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
HX1332CNLXFRMR MODULE 100B-TX 16 PIN SMT Pulse Electronics |
208 |
|
Datasheet |
HX1332CNL | Tube | Active | LAN 100 Base-TX | 350µH | - | 1:1 | Surface Mount | 1.000" L x 0.677" W (25.40mm x 17.20mm) | 0.406" (10.30mm) | -40°C ~ 85°C | - | - |
|

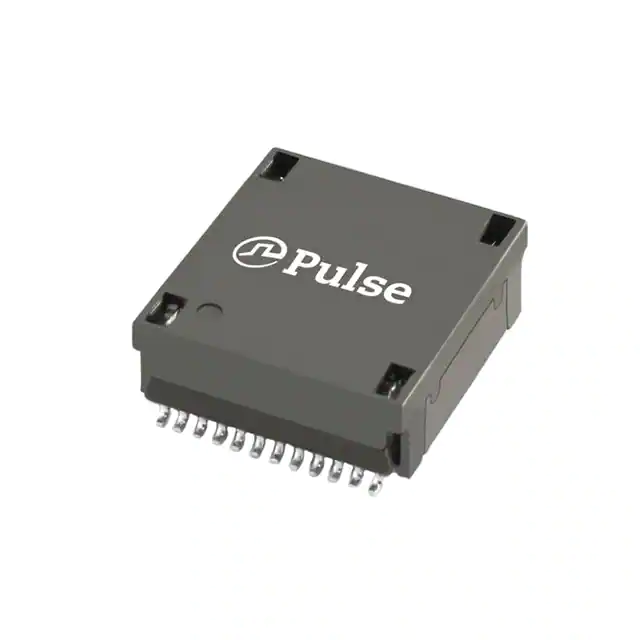

HD8006FNLTRANSFORMER HDBASET 140W Pulse Electronics |
260 |
|
Datasheet |
- | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.698" L x 0.625" W (17.73mm x 15.88mm) | 0.320" (8.12mm) | 0°C ~ 70°C | - | - |
|

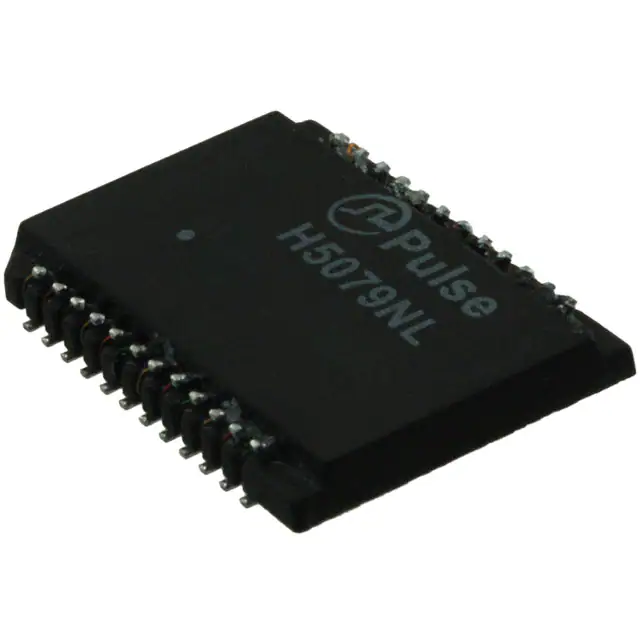

H5079NLTMODULE MINI-MAG 1PORT 1000BASE-T Pulse Electronics |
2,582 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.785" L x 0.551" W (19.94mm x 14.00mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
H5004NLMODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics |
1,094 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|

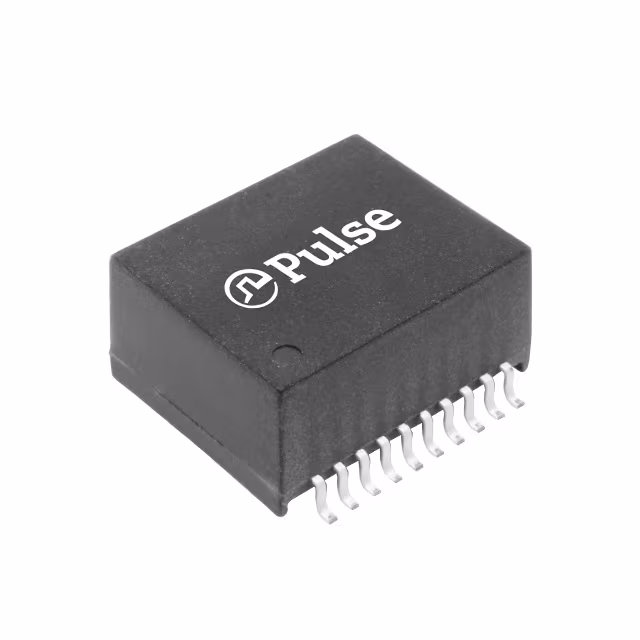

HM1331NLMDL,SIN,100D,1:1,SMT Pulse Electronics |
245 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.600" W (12.70mm x 15.24mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
H1664NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
143 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.480" W (28.19mm x 12.19mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
HX5G1010NLTRANSF MODULE 5G 4 CH 60W POE Pulse Electronics |
290 |
|
Datasheet |
- | Tube | Active | General Purpose | 120µH | - | 1CT:1CT | Surface Mount | 0.650" L x 0.360" W (16.51mm x 9.14mm) | 0.082" (2.08mm) | - | - | - |
|
HX5026NLXFRMR MODULE 1000B-T 1 CH SMT Pulse Electronics |
503 |
|
Datasheet |
- | Tube | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.19mm) | 0.260" (6.60mm) | - | - | - |
|

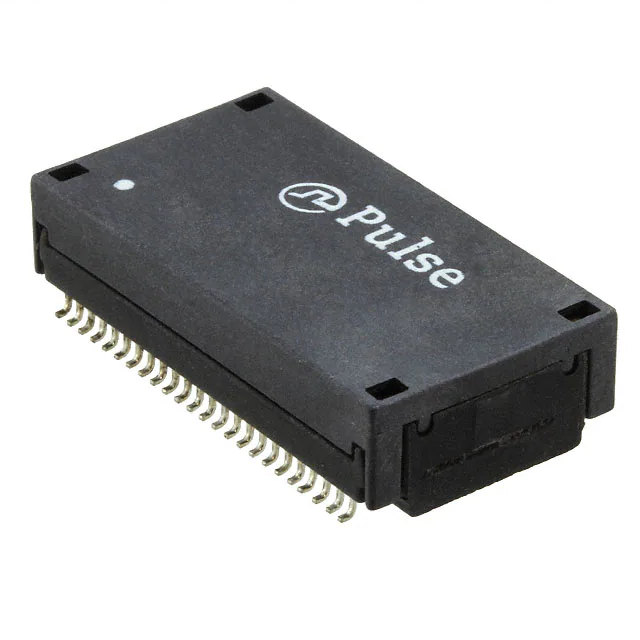

HX5014FNLPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
135 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
