Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H0013NLMODULE MAGNETIC LAN 1:1 10/100 Pulse Electronics |
574 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.078" (1.98mm) | 0°C ~ 70°C | - | - |
|
H0068ANLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,134 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
H6062FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,046 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

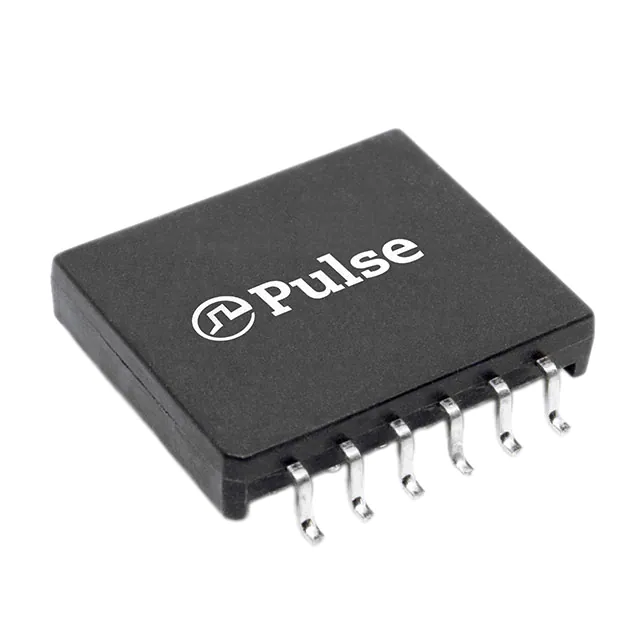

HM2112ZNLTXFMR CMC MODULE AECQ BATT MNGT Pulse Electronics |
1,063 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.579" L x 0.478" W (14.70mm x 12.15mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|

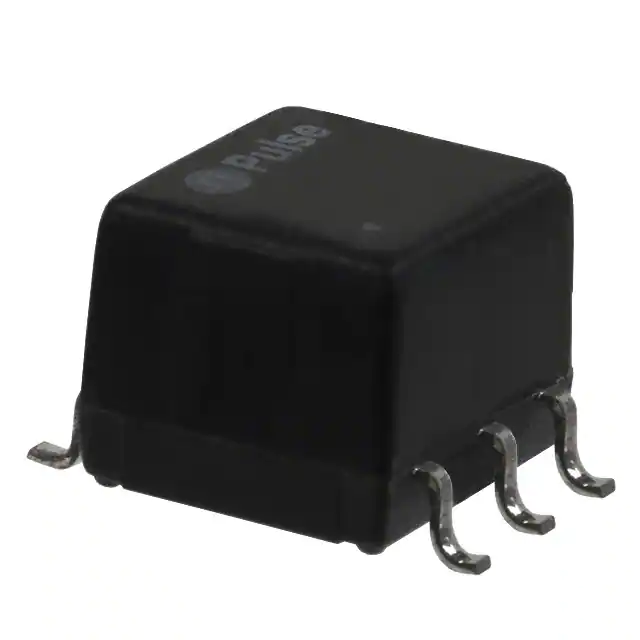

T3001NLTXFRMR T3/DS3/E3/STS-1 1:1 SMD Pulse Electronics |
2,214 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Single) | 100µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
PE-65968NLTXFRMR T3/DS3/E3/STS-1 1:2CT SMD Pulse Electronics |
1,003 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Single) | 19µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|

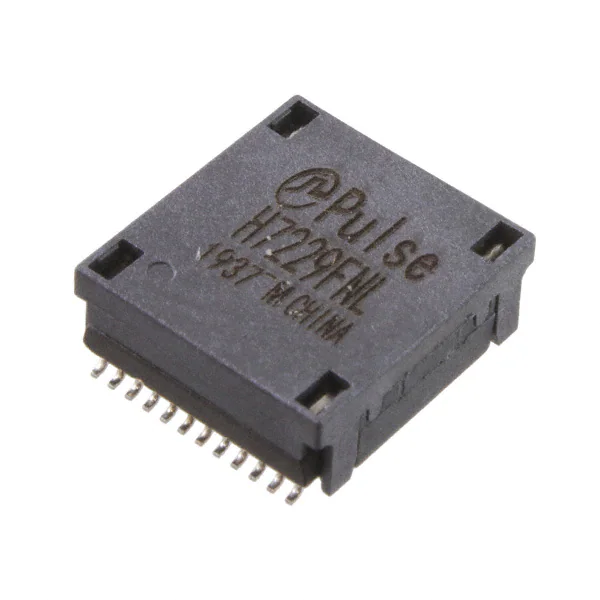

H7229FNLTRANSFORMER MODULE 10GBASE-T Pulse Electronics |
2,736 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.545" L x 0.591" W (13.84mm x 15.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
HM2112ZNLXFMR-CMC DUAL 4.3KV 1CT:1C Pulse Electronics |
161 |
|
Datasheet |
- | Tube | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.579" L x 0.478" W (14.70mm x 12.15mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|

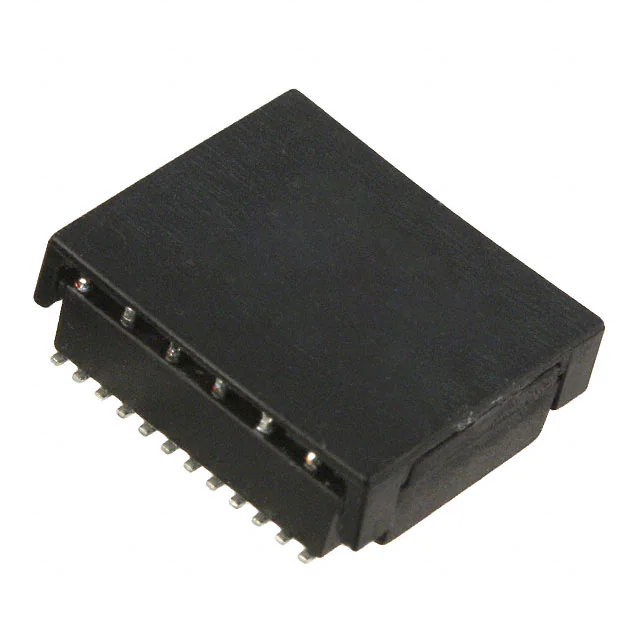

H5077NLMODULE MINI-MAG 1PORT 1000BASE-T Pulse Electronics |
1,187 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.550" L x 0.495" W (13.97mm x 12.57mm) | 0.190" (4.82mm) | 0°C ~ 70°C | - | - |
|
H6062NLTRANSFORMER MODULE GIGABIT POE Pulse Electronics |
892 |
|
Datasheet |
Star Magnetics™ | Tube | Active | - | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
