Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

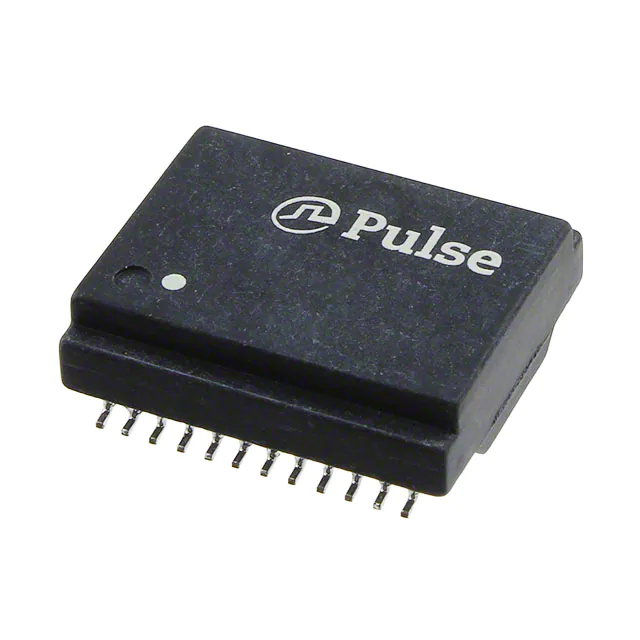

H6062FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
408 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

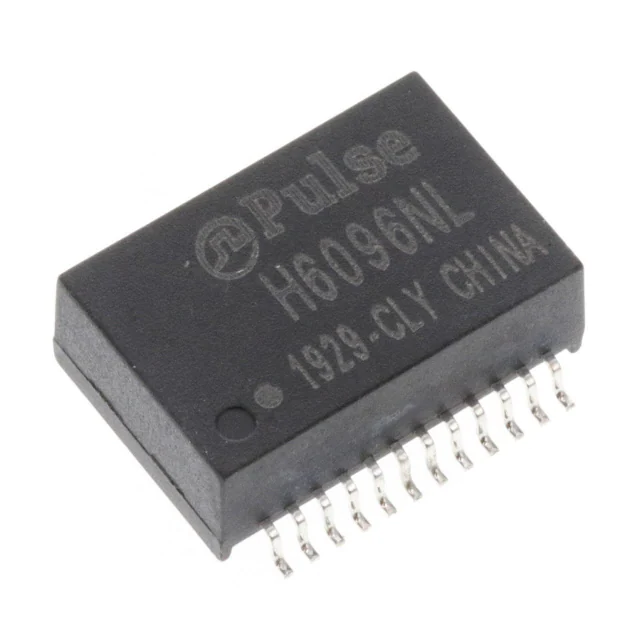

H6096NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,100 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|

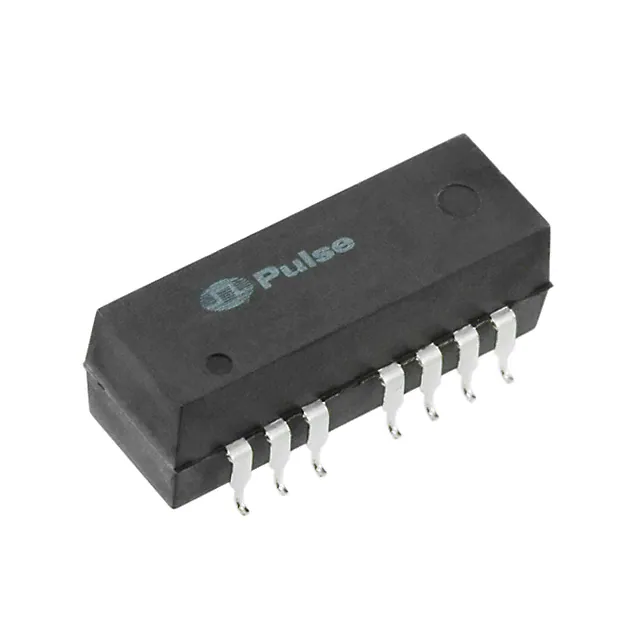

PE-68515LNLTXFRMR MODULE 1PORT 1:1 10/100B-T Pulse Electronics |
6,678 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
|
PE-68515LNLXFRMR MODULE 1PORT 1:1 10/100B-T Pulse Electronics |
532 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
H5062NLXFRMR MODULE GIGABIT 1PORT 1:1 Pulse Electronics |
304 |
|
Datasheet |
Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|

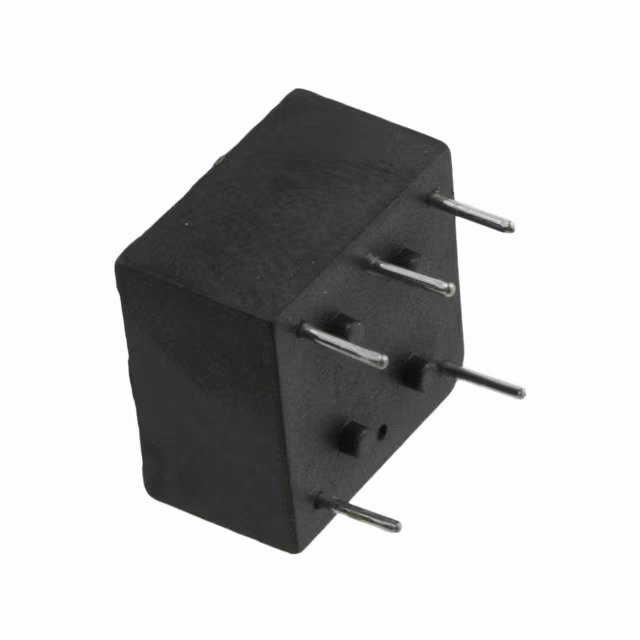

PE-65535NLXFRMR 64KBPS 1:2CT 20MH T/H Pulse Electronics |
817 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 20mH | - | 1:2CT | Through Hole | 0.559" L x 0.559" W (14.20mm x 14.20mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
H2019FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
882 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
GST5009 LFMDL 1G SINGLE PORT N/A Pulse Electronics |
3,271 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.157" (4.00mm) | 0°C ~ 70°C | - | - |
|
HX5004ENLPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
480 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|

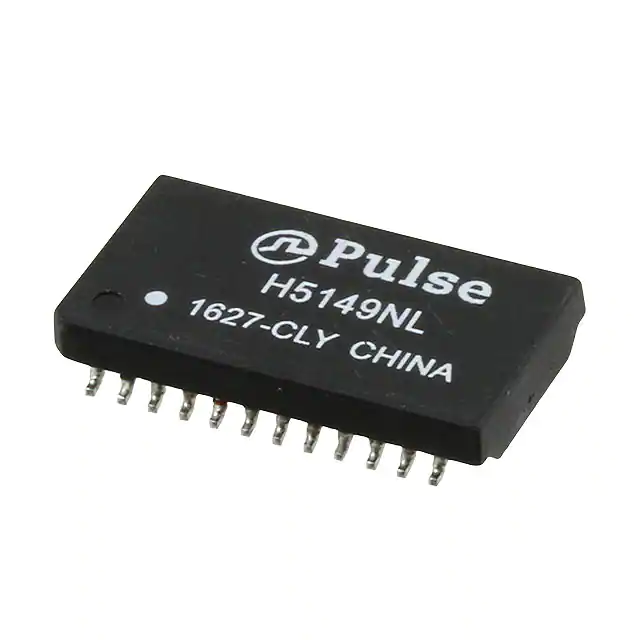

H5149NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
147 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.701" L x 0.390" W (17.80mm x 9.91mm) | 0.126" (3.20mm) | 0°C ~ 70°C | - | - |
