Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX2019NLMODULE MAGNETICS POE SINGLE VOIP Pulse Electronics |
607 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

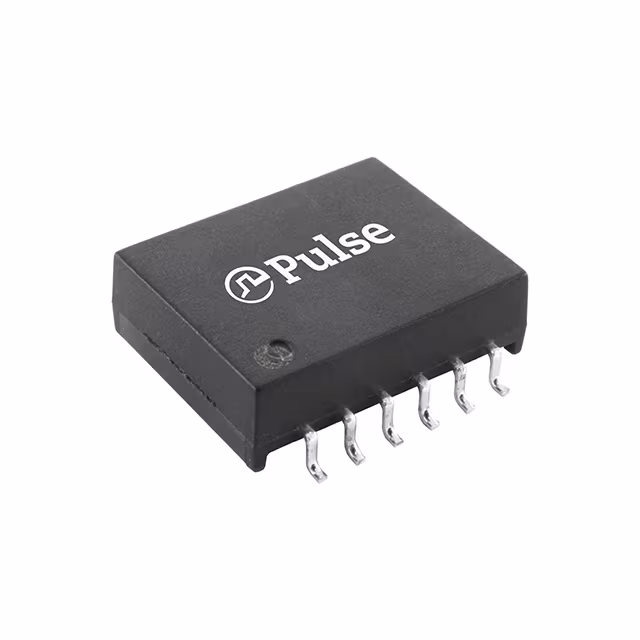

HM2102NLTXFMR CMC MODULE AECQ BATT MNGT Pulse Electronics |
2,976 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -40°C ~ 125°C | - | - |
|

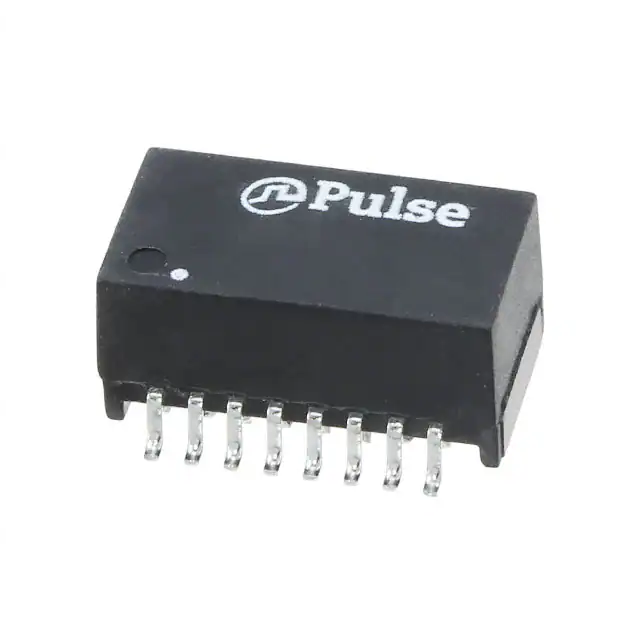

HM1188NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
898 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 105°C | - | - |
|

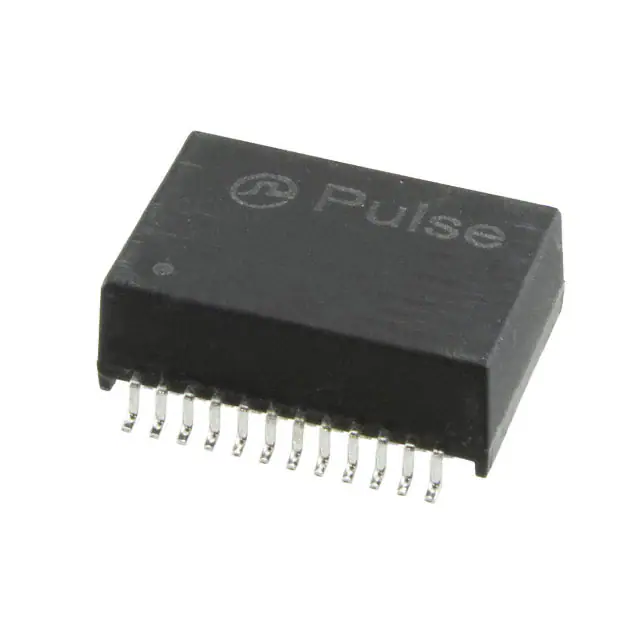

HX6096NLTPULSE XFMR 1CT:1CT TX/RX Pulse Electronics |
4,952 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
HM1188NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
8,088 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 105°C | - | - |
|
HX6098NLTPULSE XFMR 1 CT:1CT TX/RX 120UH Pulse Electronics |
622 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
HX6098FNLTPULSE XFMR 1 CT:1CT TX/RX 120UH Pulse Electronics |
434 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|

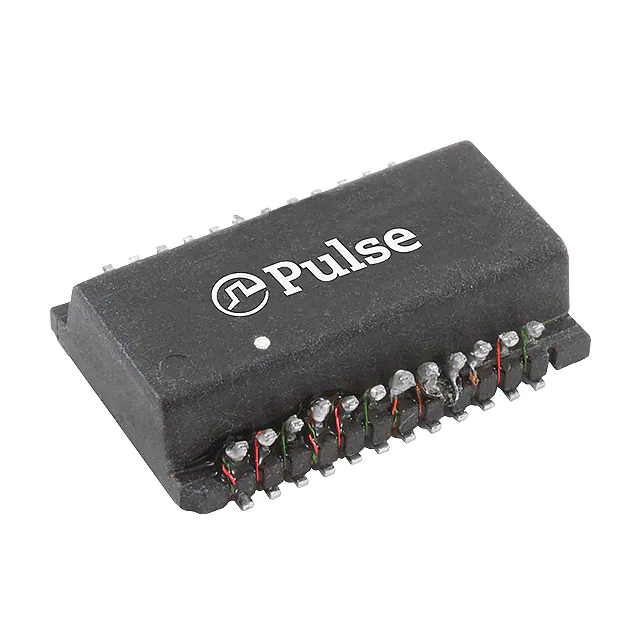

HX5084FNLPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
3,927 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | -40°C ~ 85°C | - | - |
|

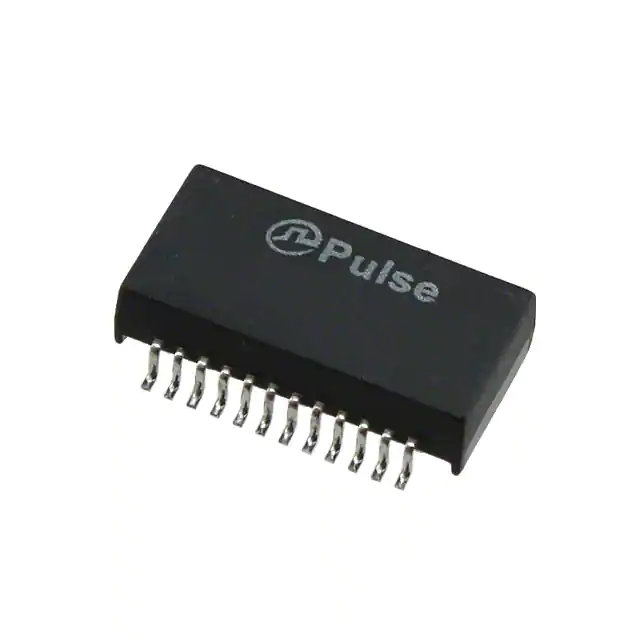

HX5084NLTPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
1,505 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | -40°C ~ 85°C | - | - |
|
|
HX5084NLMODULE 4CH EXTEMP GIGABIT 24SOIC Pulse Electronics |
323 |
|
Datasheet |
- | Tube | Active | - | 330µH | - | - | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.163" (4.14mm) | -40°C ~ 85°C | - | - |
