Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX1193NLTMODULE 1CT:2CT 1.2MH SMD Pulse Electronics |
748 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|
|
HX6135HLMODULE DUAL GIGABIT ETHERNET 50P Pulse Electronics |
180 |
|
Datasheet |
HX6135HL | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX5020HLTMODULE DUAL GIGABIT ETHERNET 50P Pulse Electronics |
487 |
|
Datasheet |
HX5020HLT | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
HX5020FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
805 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.395" W (27.94mm x 10.03mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

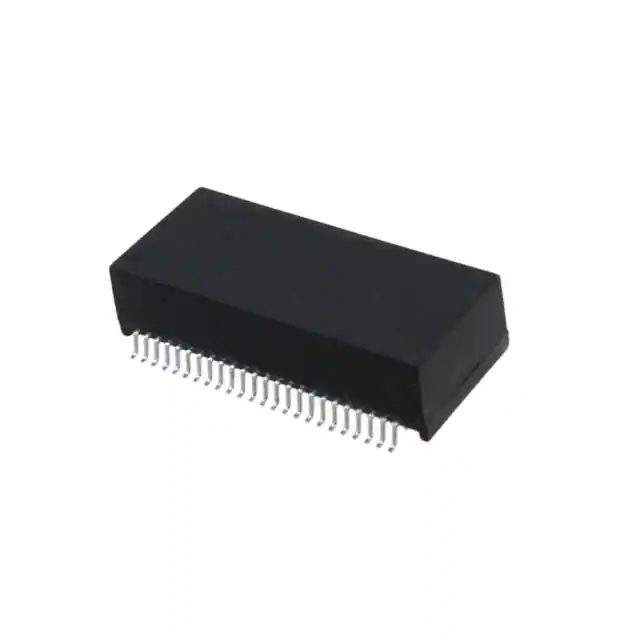

H6080NLTXFRMR MODUL GIGABT 2PORT POE 1:1 Pulse Electronics |
179 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
PA2244.472NLTTRANSFORMER Pulse Electronics |
299 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
|
PGT6209NLTTRANSF MINIFLYBACK 3W Pulse Electronics |
2,344 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 33µH | - | - | Surface Mount | 0.217" L x 0.213" W (5.50mm x 5.40mm) | 0.122" (3.10mm) | -40°C ~ 125°C | - | - |
|
PFX0890NLTPULSE XFMR 1.02MH Pulse Electronics |
1,840 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.02mH | - | - | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
|
HB5602NLMOD SIN 1GD 1:1 HF 24P Pulse Electronics |
1,668 |
|
Datasheet |
HB5 | Tube | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 0.616" L x 0.433" W (15.65mm x 11.00mm) | 0.441" (11.20mm) | 0°C ~ 70°C | - | - |
|
PM2180.012NLXFMR GATE-DR 1CT:2CT SM NPB Pulse Electronics |
595 |
|
Datasheet |
PM2180.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 1:2CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
