Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

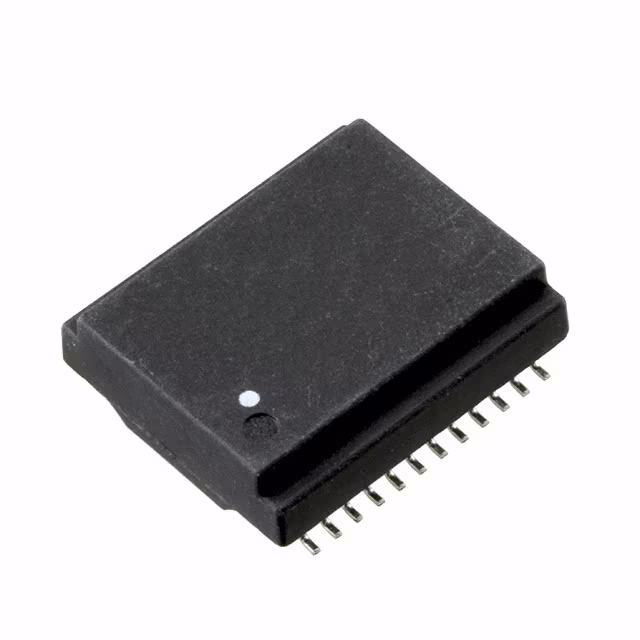

H5007EFNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
736 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

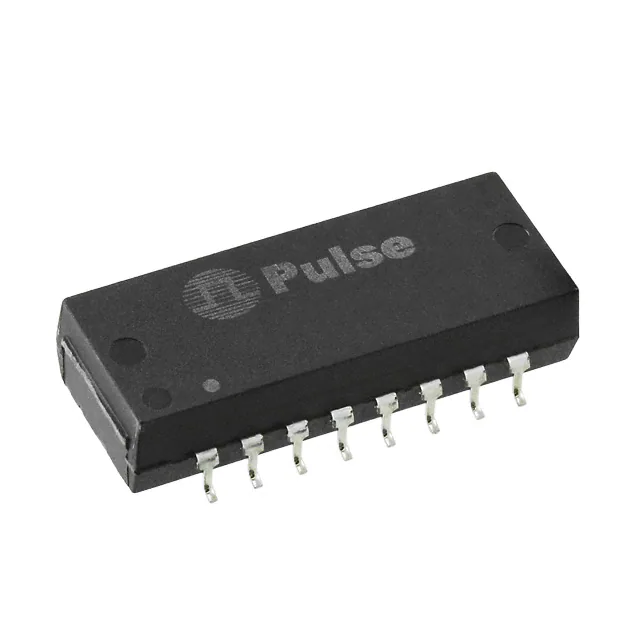

H1086NLTXFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics |
803 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
H7019FNLTRANSFORMER MODULE 10GBASE-T SMD Pulse Electronics |
151 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|

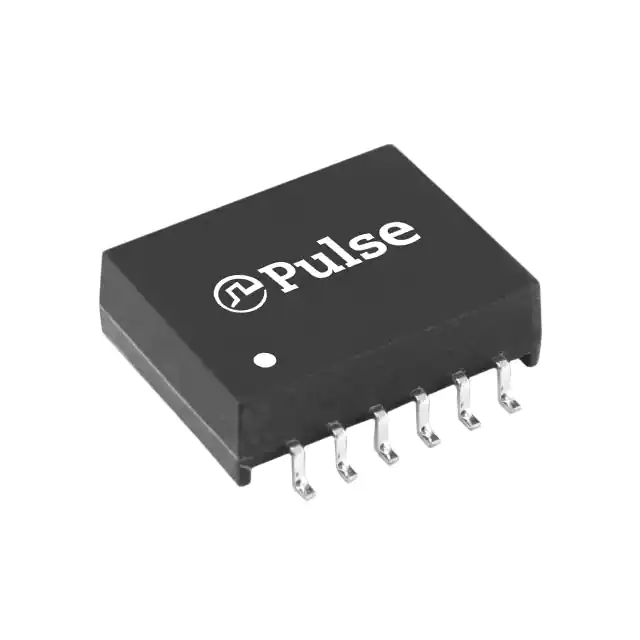

HX1112QNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
412 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
|
T7015NLXFRMR 64KBPS 1:2CT/1:2CT 20MH Pulse Electronics |
275 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 20mH | - | 1:2CT, 1:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
B8845NLPULSE XFMR ADSL/VDSL2 4B3T Pulse Electronics |
293 |
|
Datasheet |
SmartER Splitter™ | Tray | Active | ADSL, VDSL | - | - | - | Through Hole | 0.531" L x 0.839" W (13.50mm x 21.30mm) | 0.453" (11.50mm) | - | - | - |
|

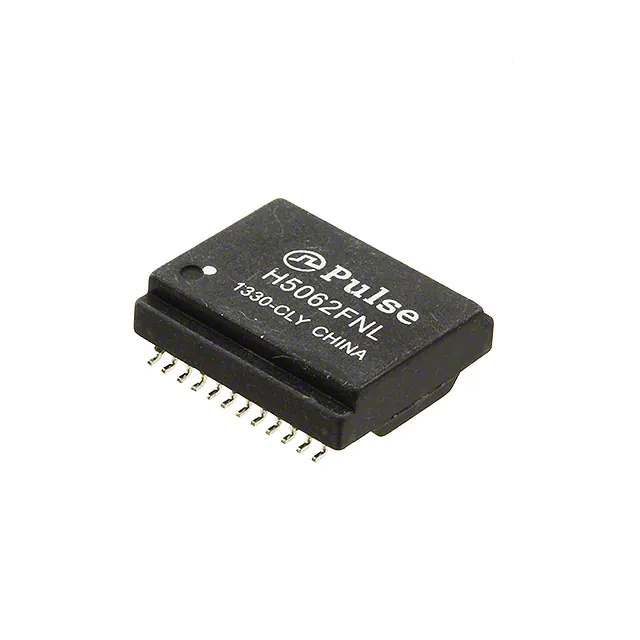

H5062FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
400 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
TX1344NLTXFRMR OCTAL 1:1/1:2 1.2MH SMD Pulse Electronics |
586 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:1, 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TX1472NLXFRMR OCTAL 1:2.4/1:1 1.2MH SMD Pulse Electronics |
363 |
|
Datasheet |
- | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:2.4, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
HX1294NLTMODULE XFRMR LAN 10/100 SMD Pulse Electronics |
2,348 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT | Surface Mount | 0.538" L x 0.599" W (13.67mm x 15.21mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
