Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX1341NLTXFRMR OCTAL 1:2 1.2MH SMD Pulse Electronics |
3,070 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
TX1473NLTXFRMR OCTAL 1:2/1:1 1.2MH SMD Pulse Electronics |
600 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:2, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
HX6106NLTPULSE XFMR 350UH Pulse Electronics |
388 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN, Power over Ethernet (PoE) | 350µH | - | - | Surface Mount | 0.715" L x 0.511" W (18.16mm x 12.98mm) | 0.410" (10.41mm) | - | - | - |
|
|
T1068NLTXFRMR 4PORT 1:2CT 1.2MH SMD Pulse Electronics |
737 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:1CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
T1124NLTXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT Pulse Electronics |
380 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
T1114NLTXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT Pulse Electronics |
317 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|

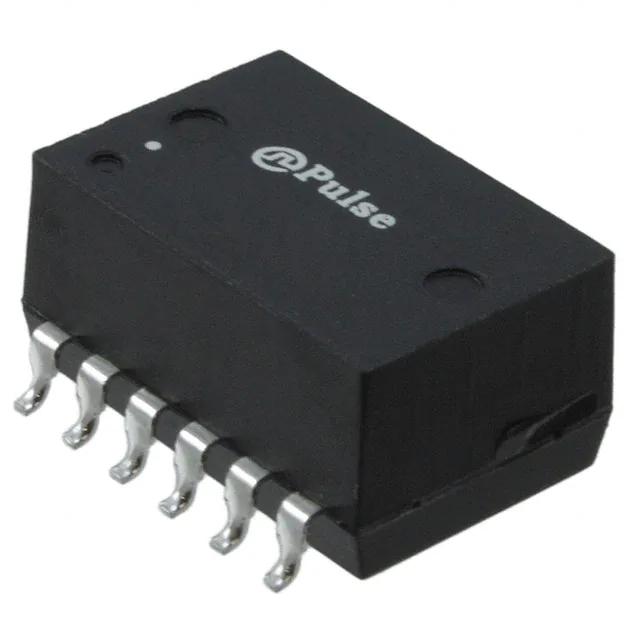

T1212NLTXFRMR 1CT:1CT/1CT:2CT 1.20MH SMD Pulse Electronics |
255 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

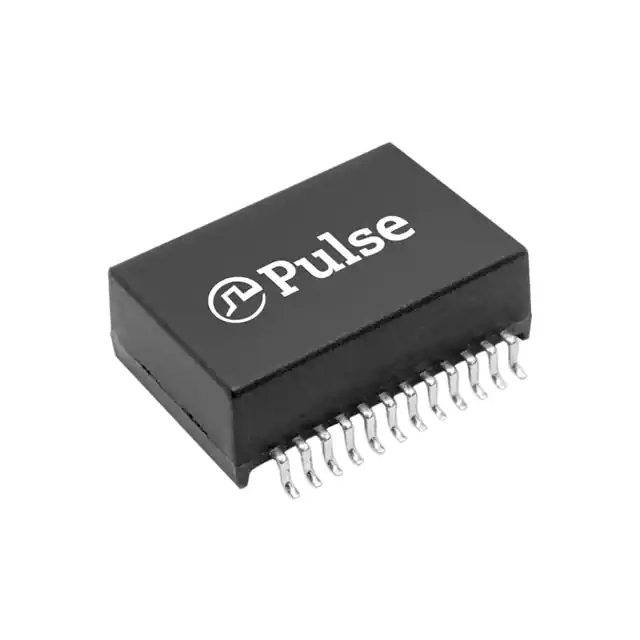

HM6098NLXFMR MDL 1000BASE-T SMT AEC-Q200 Pulse Electronics |
404 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 120µH | - | - | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 105°C | - | - |
|

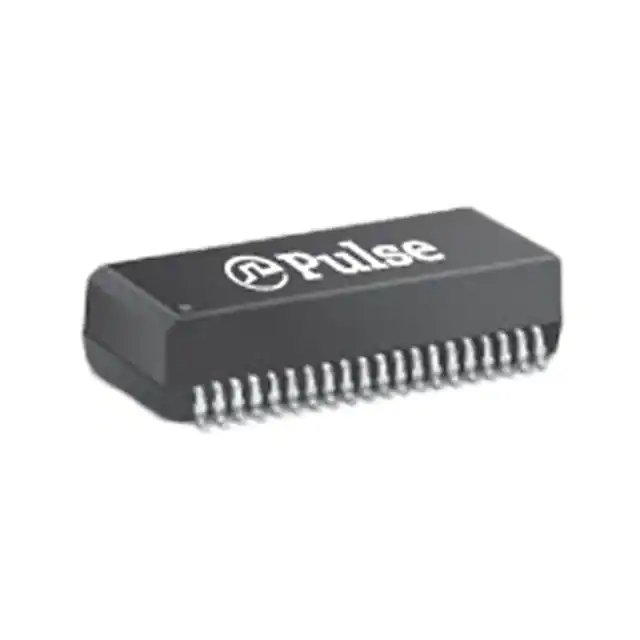

HX1259NLXFRMR MODULE 4PORT 1:1 10/100 Pulse Electronics |
205 |
|
Datasheet |
Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.110" L x 0.480" W (28.19mm x 12.19mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|

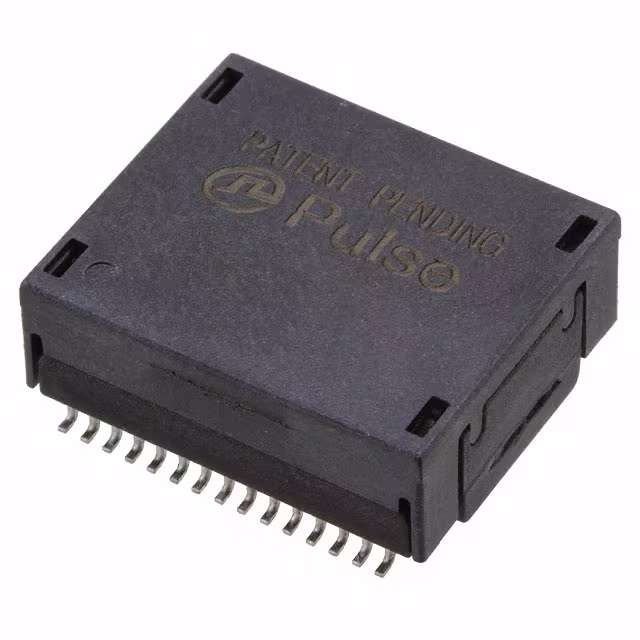

H7137FNLTTRANSFORMER MODULE 10GBASE-T SMD Pulse Electronics |
1,346 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.698" L x 0.585" W (17.73mm x 14.86mm) | 0.290" (7.37mm) | 0°C ~ 70°C | - | - |
