Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

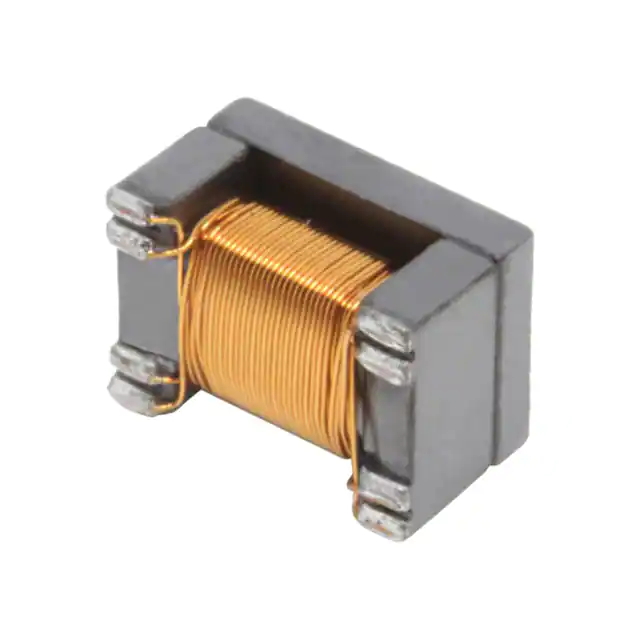

TC1000PTRANSFORMER LAN 1GB PHY POE Pulse Electronics |
4,155 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1 | Surface Mount | 0.185" L x 0.134" W (4.70mm x 3.40mm) | 0.118" (3.00mm) | -40°C ~ 85°C | - | - |
|
PA2777NLTPULSE XFMR 1:1 335.2UH Pulse Electronics |
850 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 335.2µH | 9.3VµS | 1:1 | Surface Mount | 0.291" L x 0.248" W (7.40mm x 6.30mm) | 0.232" (5.90mm) | -40°C ~ 130°C | - | - |
|
PA1528ANLTPULSE XFMR 28.9UH Pulse Electronics |
1,704 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 28.9µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA2454NLTPULSE XFMR 24UH Pulse Electronics |
800 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 24µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
PH9572.322NLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics |
11,986 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | - | - | - | Surface Mount | - | - | - | - | - |
|
PE-64934NLXFRMR T1/CEPT/ISDN-PRI 1:1 Pulse Electronics |
3,054 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
PM2155.034NLTXFMR PUSH-PULL SIDE CAR S NPB Pulse Electronics |
253 |
|
Datasheet |
PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 2.6mH | 98VµS | 3CT:4CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
|
PH9385.011NLTXFMR PUSH-PULL SIDE CAR S NPB Pulse Electronics |
1,355 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.305" (7.75mm) | - | - | - |
|
|
PA1138NLXFMR PWR EP13 126.7 UH 10 NPB Pulse Electronics |
544 |
|
- |
PA1138NL | Tray | Active | Power over Ethernet (PoE) | 126.7µH | - | 1:0.292:0.208 | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PE-65457NLTPULSE XFMR 1:1 80UH Pulse Electronics |
723 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 80µH | - | 1:1 | Surface Mount | 0.260" L x 0.340" W (6.60mm x 8.64mm) | 0.098" (2.49mm) | 0°C ~ 70°C | - | - |
