Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H7018NLTMODULE 10GBASE-T 1.5KVRMS SMD Pulse Electronics |
508 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
H2009FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
119 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.703" L x 0.518" W (17.86mm x 13.16mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
HX1234TPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
214 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
HX7028NLTMDL SIN 10G 1:1 SM TR Pulse Electronics |
170 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | - | - | - | Surface Mount | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
H6080NLXFRMR MODUL GIGABT 2PORT POE 1:1 Pulse Electronics |
280 |
|
Datasheet |
Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
HX1224CNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,175 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.537" L x 0.570" W (13.64mm x 14.48mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

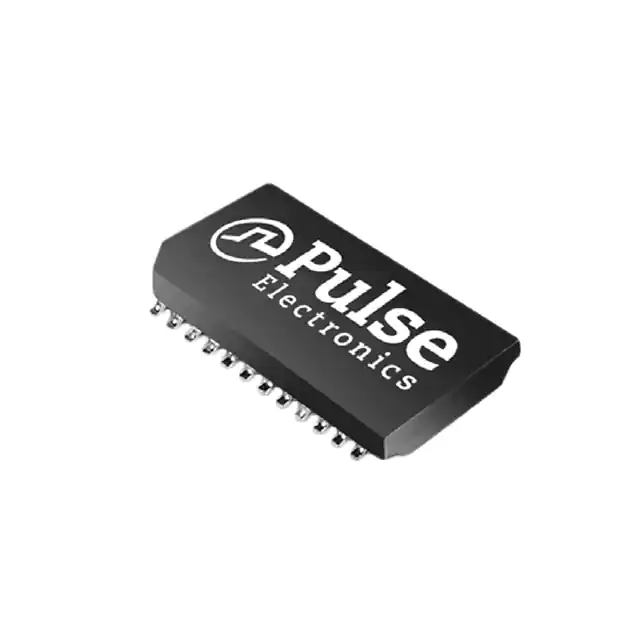

HX5149NLPULSE XFMR 1:1 360UH Pulse Electronics |
3,043 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 360µH | - | 1:1 | Surface Mount | 0.700" L x 0.390" W (17.78mm x 9.91mm) | 0.126" (3.20mm) | -40°C ~ 85°C | - | - |
|
HX5400NLXFRMR MODL 4PORT POE GIGABIT Pulse Electronics |
1,667 |
|
Datasheet |
- | Tray | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.438" (11.12mm) | -40°C ~ 85°C | - | - |
|
|
HX6400NLTMDL QUAD 1GPP 1:1 SM TR Pulse Electronics |
1,894 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 150µH | - | 1:1 | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|
|
TS8121CM HFSMD 10/100 SINGLE PORT POE 15W Pulse Electronics |
1,807 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
